Genuine Engine Front Timing Chain Cover - Mazda MX5 MK3 / NC (MZR / Duratec 1.8/2.0)

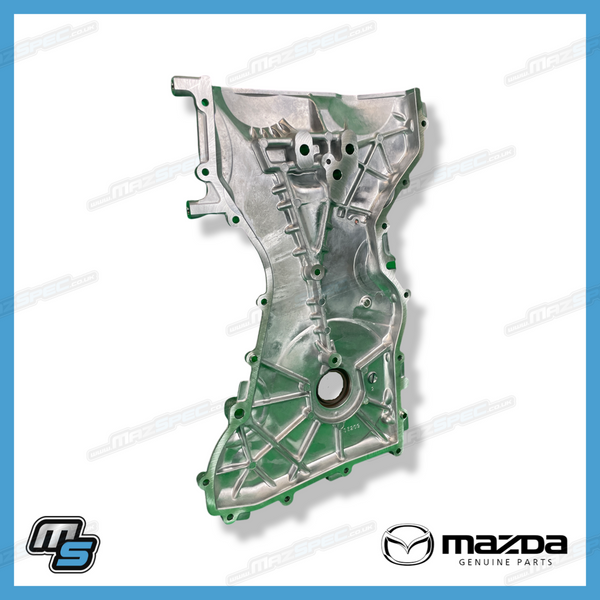

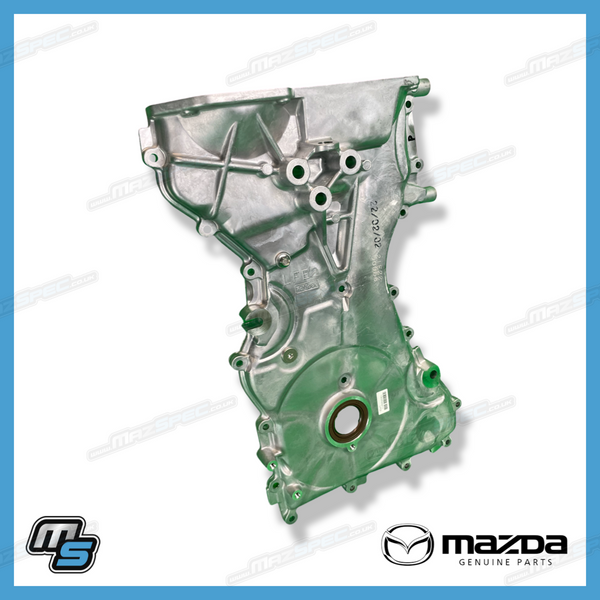

Genuine Mazda LFE2-10-500B Front Timing Chain Cover

Replacement Genuine Mazda front timing chain cover for Mazda MX-5 Mk3 / Mk3.5 / Mk3.75 (NC) 1.8L and 2.0L models listed in the compatibility table.

The front timing chain cover is fitted to the front of the engine and encloses the timing chain area, helping protect the timing chain, guides, sprockets and oil sealing surfaces. It also forms part of the front engine sealing system, working with the sump/oil pan, front crank seal and surrounding sealant surfaces to help prevent oil leaks.

There is typically one front timing chain cover fitted per vehicle. On the MX-5 NC, it is located at the front of the engine behind the crank pulley area and in front of the timing chain assembly.

This part is commonly replaced when the original cover is cracked, damaged, corroded, distorted, leaking oil, damaged during engine work, or no longer suitable for reuse during a timing chain, sump reseal or engine rebuild. It may also be replaced where previous repair work has damaged sealing faces or threaded mounting points.

• Part type: Front timing chain cover / engine timing cover / front cover
• Primary use: Timing chain enclosure and front engine sealing cover
• Location: Front of engine, timing chain area
• Quantity per vehicle: 1
• Brand: Genuine Mazda
• Part No.: LFE2-10-500B
• Also referenced as: LFE210500B
• Supersedes: LFE2-10-500 / LFE2-10-500A / LFE210500
• Designed for Mazda MX-5 Mk3 / Mk3.5 / Mk3.75 (NC) 1.8L and 2.0L applications

Fitment advice: Designed for the Mazda MX-5 NC variants listed in the compatibility table, covering Mk3, Mk3.5 and Mk3.75 soft-top and Roadster Coupe / PRHT models with 1.8L L8-DE and 2.0L LF-VE petrol engines.

Other items to consider: When changing this part, you may also want to consider purchasing related items such as timing cover sealant, sump/oil pan sealant, timing chain guides, timing chain tensioner, timing chain, crank pulley bolt, accessory belt, engine oil, coolant if drained, and any corroded or damaged mounting bolts.

Useful tools / consumables: Socket set, torque wrench, pulley holding tool, crank pulley removal tools where required, seal puller, plastic scraper, brake cleaner, lint-free cloths, Mazda-approved sealant, drain tray, engine oil and suitable timing tools if the timing chain system is disturbed.

Difficulty guide: DIY Difficulty: Advanced. Replacing the front timing chain cover can involve removing belts, pulleys, engine covers and sealing components, and may require careful cleaning and resealing of the timing cover and sump/oil pan joint. Correct sealant application and torque sequence are important to prevent oil leaks.

Why Genuine Mazda? Genuine Mazda engine covers are designed to match the original specification of the vehicle. For a timing chain cover, this means correct casting shape, mounting points, oil sealing faces, crank seal location, timing chain clearance and compatibility with the Mazda oil pan and front engine assembly. Genuine Mazda parts reduce the risk of poor fit, oil leaks, incorrect seal alignment or issues caused by damaged or poorly made pattern components.

Why buy from Mazspec? Mazspec specialises in Mazda parts and understands the common issues found on MX-5 engines as they age. We source genuine Mazda components through trusted OE channels and can help with related timing chain, sealing, gasket and service parts for the job.

What’s in the box: One Genuine Mazda front timing chain cover / engine front cover.

Installation notes: Clean all mating faces thoroughly before installation and use the correct Mazda-approved sealant where specified. Follow the Mazda workshop manual for removal, sealant placement, bolt tightening sequence and torque specifications. Allow sealant to cure as required before refilling fluids or running the engine.
