Pipercross Performance Air Intake System – MX-5 Mk1 / NA 1.6 • PK108

For Mazda MX-5 Mk1 / NA 1.6 16V naturally aspirated models from 05/1990 to 05/1998; specifically for the 1.6-litre engine and not the 1.8.

The Pipercross PK108 is a vehicle-specific Performance Air Intake System designed to replace the original Mazda airbox and intake arrangement on compatible MX-5 Mk1 / NA 1.6 models.

Unlike a replacement panel filter that remains inside the original airbox, PK108 replaces the factory air-cleaner arrangement with a Pipercross performance foam filter, vehicle-specific heatshield and installation hardware.

Product Specifications

• Brand: Pipercross
• Product range: Performance Intake System
• Pipercross part number: PK108
• Product type: Vehicle-specific performance air intake system
• Vehicle application: Mazda MX-5 Mk1 / NA
• Engine application: 1.6 16V naturally aspirated
• Filter type: Long-life performance filter
• Filter media: Multi-layer performance foam
• Heatshield: Vehicle-specific aluminium heatshield
• Factory airbox: Replaced by the Pipercross intake system
• Installation: Vehicle-specific direct-fit system for the supported standard intake configuration
• Quantity supplied: 1 complete intake system

Important Fitment Note

PK108 is specifically the 1.6-litre MX-5 Mk1 / NA application. The corresponding Pipercross Performance Intake System for the 1.8-litre model is PK107, so PK108 should not be ordered for a 1.8 vehicle.

The supported application range is 05/1990 to 05/1998. Vehicles with engine conversions, non-standard airflow-meter arrangements or substantially modified intake systems should be checked carefully before ordering.

Typical Reasons for Replacement / Upgrade

Suitable for owners looking to replace the original Mazda airbox and filter arrangement with a complete vehicle-specific Pipercross induction system. The PK108 provides a purpose-designed intake upgrade rather than simply replacing the original panel filter.

Fitment Advice

Installation requires removal of the original air-cleaner assembly before fitting the Pipercross filter, heatshield and supplied mounting components. Check the condition of the airflow meter, intake hoses, clips and surrounding mounting points while the original airbox is removed.

For imported, modified or previously repaired cars, matching the part number, dimensions and intake specification of the component being replaced is recommended.

Cleaning & Maintenance

The Pipercross performance foam filter is washable and reusable. Use an appropriate Pipercross air filter cleaner when servicing the filter, rinse carefully and allow it to dry naturally before refitting. Service frequency should take account of the vehicle's normal maintenance schedule and operating conditions.

Other Items to Consider

• Pipercross air filter cleaning products for future servicing
• Replacement intake hose clips where the original components are worn or corroded
• Airflow-meter gasket or sealing components where existing parts are damaged or deteriorated

Useful Tools / Consumables

• Socket and spanner set
• Screwdrivers for hose clamps and intake fixings
• Pliers for hose clips where required
• Clean lint-free cloth

Difficulty Guide

Moderate – suitable for a competent DIY mechanic familiar with removing and installing engine intake components.

Why Pipercross?

Pipercross is a British performance air-filtration specialist producing vehicle-specific replacement filters, competition filters and complete intake systems. Its products are developed with a focus on airflow, filtration and serviceability, with application-specific designs ranging from direct-fit factory-airbox filters to complete performance intake systems.

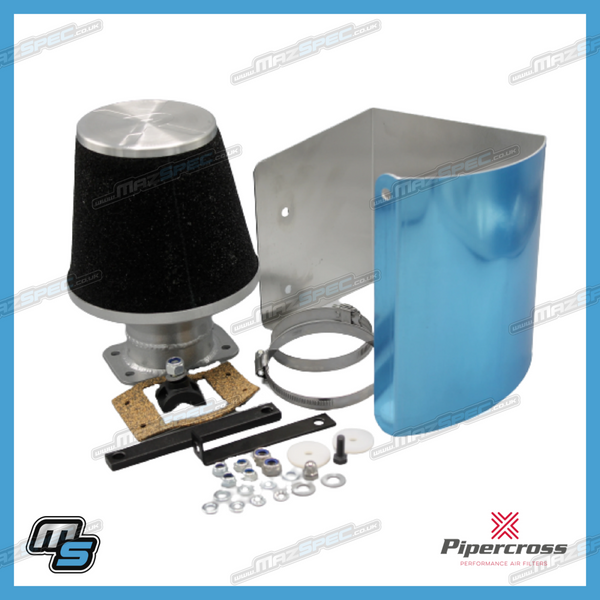

What's in the Box?

• 1 x Pipercross performance foam air filter
• 1 x vehicle-specific aluminium heatshield
• Vehicle-specific mounting hardware and fittings supplied with the kit
• Fitting instructions

Installation Notes

PK108 replaces the original Mazda air-cleaner arrangement on supported MX-5 Mk1 / NA 1.6 models. Install the filter and heatshield securely and ensure all intake, airflow-meter and breather connections are correctly seated before starting the engine.
