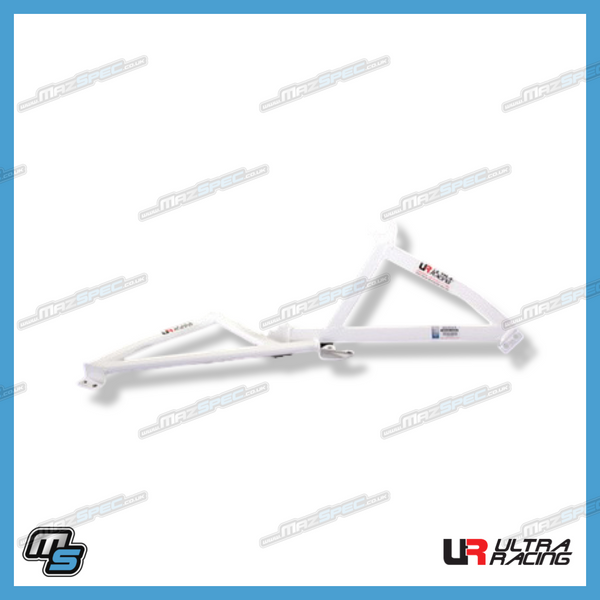

Ultra Racing 3-point front fender brace kit for Mazda MX-5 MK1 / NA models listed in the compatibility table.
The Ultra Racing FD3-1320P kit consists of a left- and right-hand pair of front fender braces designed as an aftermarket chassis reinforcement upgrade for the first-generation Mazda MX-5 NA.
Installed behind the front wings, the braces reinforce the structural area between the front chassis and A-pillar region. Each brace uses a three-point mounting arrangement, helping spread loads across the front side structure and reduce unwanted chassis flex during cornering and changing road loads.
Product details:
- Brand: Ultra Racing
- Part number: FD3-1320P
- Product type: Front Fender Bar / Fender Brace
- Position: Front left and right fender / inner wing area
- Brace specification: 3 Point per side
- Configuration: Left and right pair
- Quantity required per vehicle: 1 pair
- Quantity supplied: 2 braces
- Construction: One-piece steel brace
- Finish: Ultra Racing white
- Original vehicle nuts / bolts are reused where applicable unless additional hardware is supplied
Common reasons for fitting:
- Reinforce the joint between the front chassis and A-pillar area
- Reduce unwanted flex through the front side structure
- Help improve chassis consistency under cornering loads
- Provide additional reinforcement on cars with uprated suspension or high-grip tyres
- Complement front strut, lower chassis and other structural bracing upgrades
Fitment advice:
Ultra Racing manufacturer data confirms FD3-1320P for the Mazda MX-5 MK1 / NA platform, and supporting specialist application data confirms both 1.6 and 1.8-litre NA models. Because the braces install behind the front wings, access to the front fender / inner wing area is required. For imported, modified or previously repaired cars, matching the mounting arrangement on both sides of the vehicle before installation is recommended.
Other items to consider purchasing:
- Ultra Racing front strut brace
- Ultra Racing front lower brace
- Ultra Racing middle lower brace
- Ultra Racing rear lower brace
- Ultra Racing rear upper brace
- Ultra Racing anti-roll bars
Useful tools / consumables:
- Socket and ratchet set
- Torque wrench
- Trim and panel-removal tools
- Suitable tools for front wing / inner arch access
- Penetrating fluid where existing fasteners are corroded
Difficulty guide: Intermediate to advanced DIY / workshop installation. Access behind the front wings is required on both sides of the vehicle.
Why Ultra Racing?
Ultra Racing specialises in aftermarket chassis and handling upgrades. Its fender braces reinforce the structural connection between the front chassis and A-pillar area, helping distribute loads across a wider section of the vehicle structure.
What's in the box:
- 1 x left-hand Ultra Racing FD3-1320P front fender brace
- 1 x right-hand Ultra Racing FD3-1320P front fender brace
- Additional mounting hardware where supplied with the kit

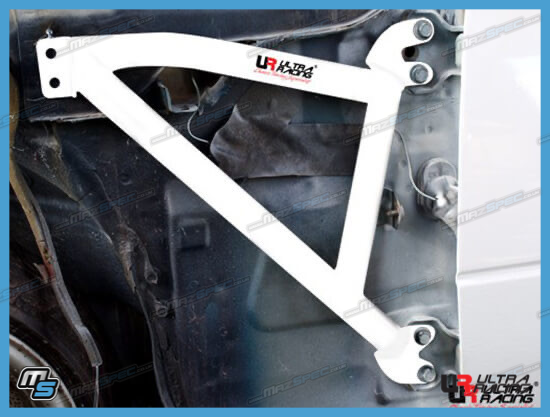

Installation notes:
Installation requires access behind the front wings / fender panels. Position each brace correctly against its three mounting locations and check that surrounding wiring, trim and bodywork remain clear before final tightening. Reassemble and tighten all mounting hardware to the appropriate vehicle or manufacturer specification.
| Make | Model | Sub Variant | Chassis / Code | Years | Power (PS) | Engine Codes | Fuel | Transmission | Notes |
|---|---|---|---|---|---|---|---|---|---|
| Mazda | MX-5 MK1 / NA | 1.6 | NA6C | 1990-1993 | 115 | B6ZE | Petrol | Manual / Automatic where fitted | Pair of 3-point front fender braces. |
| Mazda | MX-5 MK1 / NA | 1.6 | NA6C | 1994-1998 | 90 | B6ZE | Petrol | Manual | Pair of 3-point front fender braces. |
| Mazda | MX-5 MK1 / NA | 1.8 | NA8C | 1994-1998 | 130 | BP-ZE | Petrol | Manual / Automatic where fitted | Pair of 3-point front fender braces. |
| Reference Type | Reference Number | Notes |
|---|---|---|
| Mazda OE | N/A | No direct Mazda OE reference - aftermarket chassis reinforcement part |
