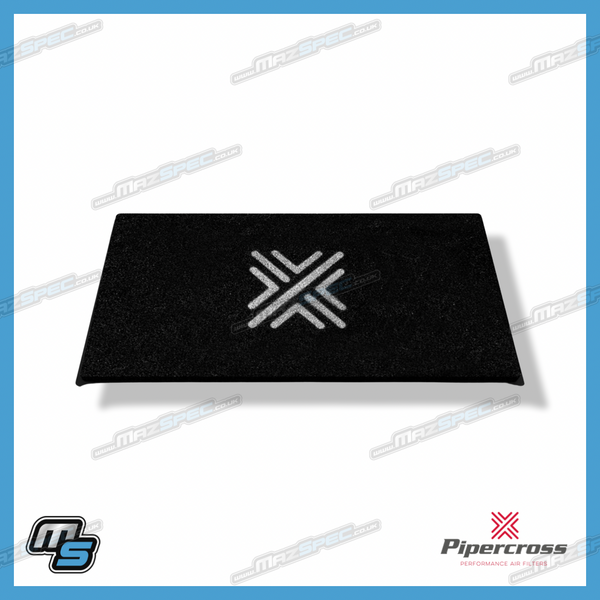

Pipercross Performance Panel Air Filter – MX-5 Mk2 / NB 1.6 & 1.8 • PP1268

For Mazda MX-5 Mk2 / NB and Mk2.5 / NB-FL 1.6 and 1.8 naturally aspirated petrol models from 1998 to 2005 using the standard factory airbox.

The Pipercross PP1268 is a direct-fit Performance Panel Air Filter designed to replace the original disposable air-filter element inside the standard Mazda MX-5 NB airbox.

It retains the original airbox and intake system, making it a straightforward service replacement and performance filtration upgrade rather than a complete induction kit.

Product Specifications

• Brand: Pipercross
• Product range: Performance Panel Filter
• Pipercross part number: PP1268
• Filter type: Long-life replacement air filter
• Filter media: Performance foam
• Shape: Rectangular
• Length: 259 mm
• Width: 164 mm
• Height: approximately 24 mm
• Installation location: Original engine air-filter housing
• Factory airbox retained: Yes
• Washable and reusable: Yes
• Quantity supplied: 1 air filter

Important Fitment Note

PP1268 is intended for MX-5 Mk2 / NB and Mk2.5 / NB-FL models retaining the standard air-filter housing. Modified induction systems or vehicles no longer using the original-style airbox will require the fitted filter arrangement to be checked before ordering.

Factory turbo applications are not included in the confirmed vehicle allocation below because the relevant turbo intake and airbox configuration has not been sufficiently verified for PP1268.

Typical Reasons for Replacement / Upgrade

Suitable when replacing a dirty, damaged or ageing standard air-filter element, or where a washable and reusable Pipercross performance filter is preferred in place of a conventional disposable paper filter.

Fitment Advice

PP1268 fits directly into the original Mazda airbox in place of the existing filter element. Remove the old filter, clean any loose debris from the housing and install the Pipercross filter with the sealing edge correctly seated before closing the airbox.

For imported, modified or previously repaired cars, matching the part number, dimensions and intake specification of the component being replaced is recommended.

Cleaning & Maintenance

The Pipercross performance foam element is washable and reusable. When servicing is required, remove loose contamination, apply an appropriate Pipercross air-filter cleaner, rinse using warm low-pressure water and allow the filter to dry naturally before refitting.

Pipercross Dirt Retention Additive may be used where appropriate but is not automatically required for normal road use. Avoid excessive application.

Other Items to Consider

• Pipercross C9000 Air Filter Cleaning Kit
• Replacement airbox clips or fixings where existing components are damaged or missing
• Intake hoses and clamps where ageing or deterioration is found during servicing

Useful Tools / Consumables

• Basic hand tools as required for the airbox
• Clean lint-free cloth
• Pipercross filter cleaner when servicing the filter

Difficulty Guide

Easy – a straightforward service item fitted directly inside the original engine airbox.

Why Pipercross?

Pipercross is a British performance air-filtration specialist producing vehicle-specific replacement filters, competition filters and complete intake systems. Its products are developed with a focus on airflow, filtration and serviceability, with application-specific designs ranging from direct-fit factory-airbox filters to complete performance intake systems.

What's in the Box?

• 1 x Pipercross PP1268 Performance Panel Air Filter

Installation Notes

Install PP1268 into the original Mazda air-filter housing in place of the existing element. Ensure the filter perimeter is correctly seated and the airbox is fully secured before running the engine.
