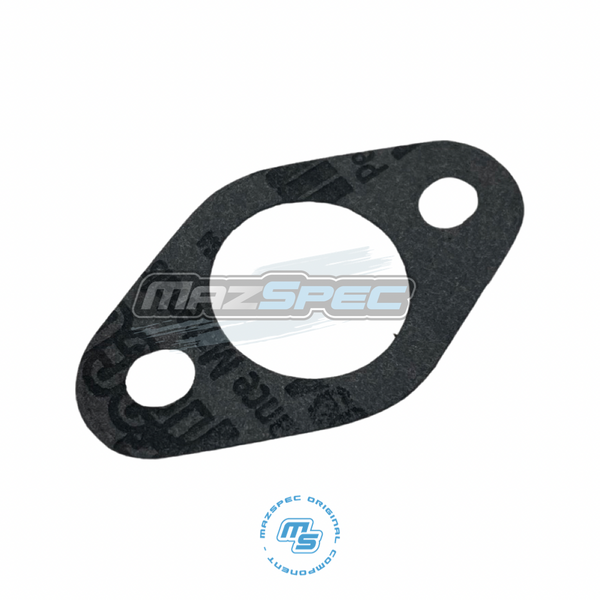

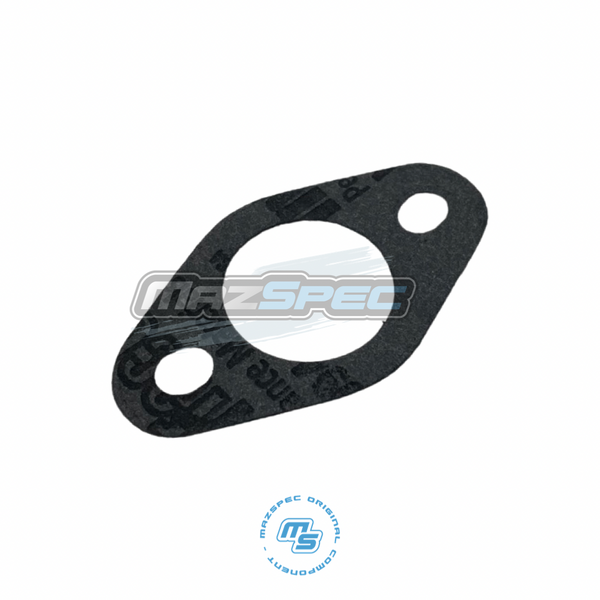

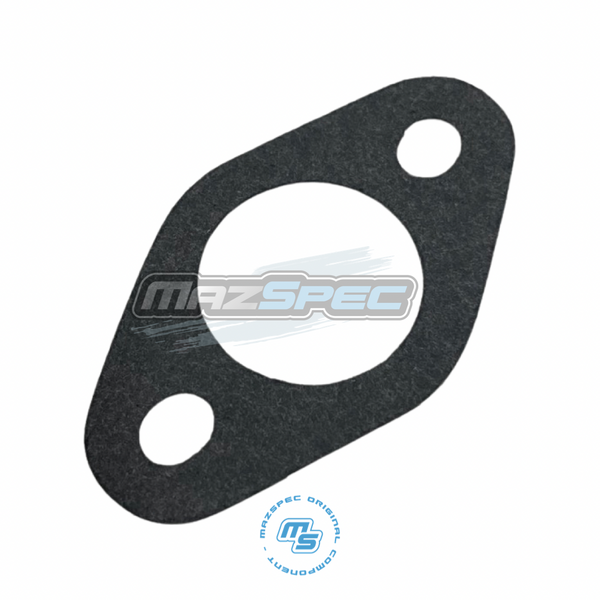

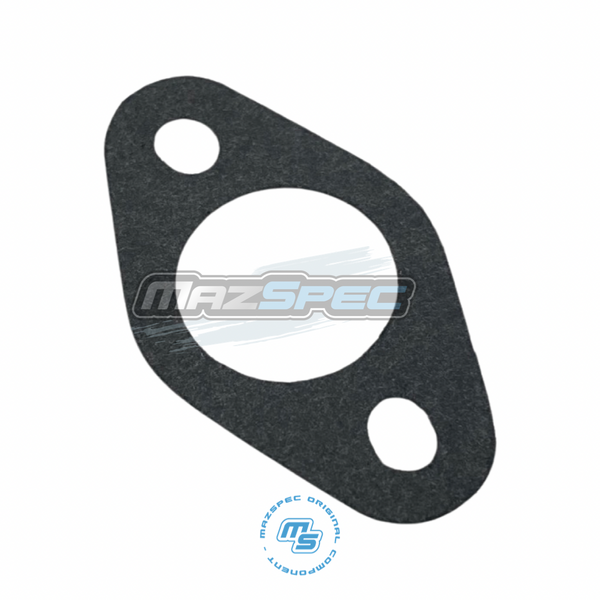

Oil Pickup Pipe / Strainer Gasket – Mazda MX-5 MK1 & MK2 (1989–2005) • B6BF-14-248

Oil Pickup Pipe / Strainer Gasket – Mazda MX-5 MK1 & MK2 • B6BF-14-248

Replacement aftermarket oil pickup pipe gasket for Mazda MX-5 MK1 / NA and MK2 / NB, including MK2.5 / NB-FL, 1.6L and 1.8L petrol models (1989–2005).

This replacement oil strainer gasket is designed to seal the connection between the engine oil pickup pipe and the oil pump. It plays an important role in maintaining a sealed oil supply path, allowing the pump to draw engine oil from the sump and circulate it through the lubrication system.

The oil pickup pipe is located inside the engine sump and draws oil through a strainer before supplying it to the engine oil pump. A secure seal at the pickup connection is essential to prevent unwanted air entering the suction side of the oil system.

Over time, sealing gaskets can deteriorate, become compressed or sustain damage during engine disassembly. A compromised gasket can contribute to reduced oil pump efficiency, inconsistent oil pressure or lubrication problems.

This gasket is a useful replacement when removing the sump, servicing the oil pickup assembly, replacing the engine oil pump or carrying out a complete engine rebuild. Replacing the gasket during disassembly helps ensure that the pickup connection is correctly resealed when the engine is reassembled.

Product features and specifications:

• Product type: Engine oil pickup pipe / strainer gasket
• Primary use: Sealing the oil pickup pipe to the oil pump
• Location / system: Internal engine lubrication system
• Fitting position: Oil pickup pipe-to-oil pump connection
• Application: Mazda MX-5 MK1 / NA, MK2 / NB and MK2.5 / NB-FL
• Engines: 1.6L B6 and 1.8L BP petrol engines
• Quantity per vehicle: 1 gasket
• Quantity supplied: 1 gasket
• Product type: Aftermarket replacement component
• Mazda OE reference: B6BF-14-248
• Additional OE reference: B621-14-248
• MazSpec SKU: MON-B6BF-14-248

Common replacement reasons: The gasket should be considered for replacement when the oil pickup pipe or oil pump is removed. Deteriorated sealing material, damaged gasket surfaces or evidence of air entering the oil pickup circuit are additional reasons to inspect and replace this component.

Fitment advice: Designed for Mazda MX-5 MK1 / NA and MK2 / NB petrol engines using the B6BF-14-248 oil pickup gasket arrangement. This includes supported MK2.5 / NB-FL models. The gasket is installed inside the engine and is not an external sump drain plug washer or oil filter seal.

Other items to consider: When replacing this gasket, you may also want to consider purchasing suitable sump sealing compound, oil pump seals, front crankshaft oil seals, replacement engine oil, an oil filter and any associated pickup pipe fasteners or engine rebuild components required for the repair.

Useful tools / consumables: Socket set, torque wrench, suitable gasket removal tools, oil drain pan, cleaning cloths, engine degreaser and the correct engine sump sealing compound.

Difficulty guide: DIY Difficulty: Advanced. Replacement requires access to the internal oil pickup assembly, normally involving engine oil draining, sump removal and disconnection of the pickup pipe. Correct sealing, sump reassembly and oil system preparation are essential.

Why choose this replacement gasket? This aftermarket gasket provides a replacement sealing component for the Mazda B6 and BP engine oil pickup arrangement. It is a practical service item during engine repairs and rebuilds, helping restore the oil pickup connection without requiring replacement of the complete pickup assembly.

What's in the box: 1 × aftermarket engine oil pickup pipe / strainer gasket.

Installation / service notes: Drain the engine oil and remove the sump as required to access the oil pickup pipe. Carefully remove the existing gasket and clean both mating surfaces without allowing debris into the lubrication system. Inspect the pickup pipe, strainer and oil pump connection for damage or contamination. Install the replacement gasket using the correct engine assembly procedure and tighten the pickup pipe fasteners to the manufacturer's specification. Reassemble and reseal the sump using the appropriate sealant, refill with suitable engine oil and confirm correct oil pressure and leak-free operation before normal engine use.
