Victor Reinz Full Engine Gasket & Seal Set - MX-5 Mk3 NC 2.0 MZR • 01-37685-01

Replacement Victor Reinz full engine gasket and seal set for Mazda MX-5 Mk3 / NC 2.0 MZR petrol models listed in the compatibility table.

Victor Reinz 01-37685-01 is a comprehensive full engine gasket and seal set designed for major overhaul and rebuild work on Mazda's 2.0-litre MZR / LF-series petrol engine. It brings together the principal engine gaskets and seals required when substantially dismantling and rebuilding the engine rather than repairing one isolated sealing joint.

The kit includes valve stem seals, crankshaft sealing components and an integrated shaft seal and is suitable for the confirmed Mazda MX-5 Mk3 / NC 2.0 applications shown in the compatibility table.

Part details:

• Brand: Victor Reinz
• Product type: Full engine gasket and seal set
• Victor Reinz part number: 01-37685-01
• Application: Mazda 2.0 MZR / LF-series petrol engine
• Engine capacity: 1999 cc
• Quantity supplied: 1 complete set
• Valve stem seals included: Yes
• Crankshaft seal included: Yes
• Integrated shaft seal included: Yes
• Associated Victor Reinz cylinder head gasket: 61-37685-00
• Associated Victor Reinz cylinder head gasket set: 02-37685-01
• EAN: 4026634019924

Common reasons for replacement:

• Complete engine rebuild or overhaul
• Cylinder-head and bottom-end rebuild work
• Engine dismantling following internal damage
• Replacement of aged, leaking or disturbed engine gaskets and seals
• Restoration or major preventative engine work

Fitment advice:
This kit is intended for the confirmed Mazda 2.0 MZR / LF-series applications shown in the compatibility table. It should not be assumed suitable for the MX-5 1.8 MZR simply because both engines are fitted to the NC-generation MX-5; the 1.8 uses different engine sealing components.

For imported, modified or previously repaired cars, matching the part number, gasket style or component specification on the parts being replaced is recommended.

Other items to consider purchasing:

• Timing chain and associated timing components where replacement is required
• Water pump
• Engine oil and oil filter
• Coolant
• Auxiliary drive belt
• Replacement fasteners where specified as single-use
• Suitable RTV / engine sealing compound where specified

Useful tools / consumables:

• Calibrated torque wrench
• Angle gauge where required by the workshop procedure
• Engine assembly lubricant
• Gasket-removal and sealing-surface cleaning products
• Precision straight edge and suitable measuring equipment
• Appropriate seal installation tools

Difficulty guide: Advanced / engine rebuild. This set is intended for substantial engine dismantling and reassembly and is best suited to experienced DIY engine builders and professional workshops.

Why Victor Reinz?
Victor Reinz is Dana's specialist sealing brand, with extensive experience in automotive gasket and sealing technology. Its application-specific engine gasket sets provide a practical solution for comprehensive engine repair and rebuild work where dependable sealing components and correct engine-specific fitment are important.

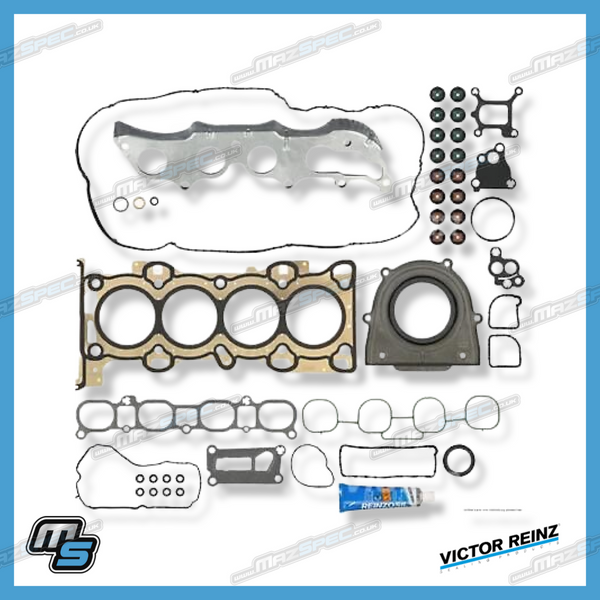

What's in the box:

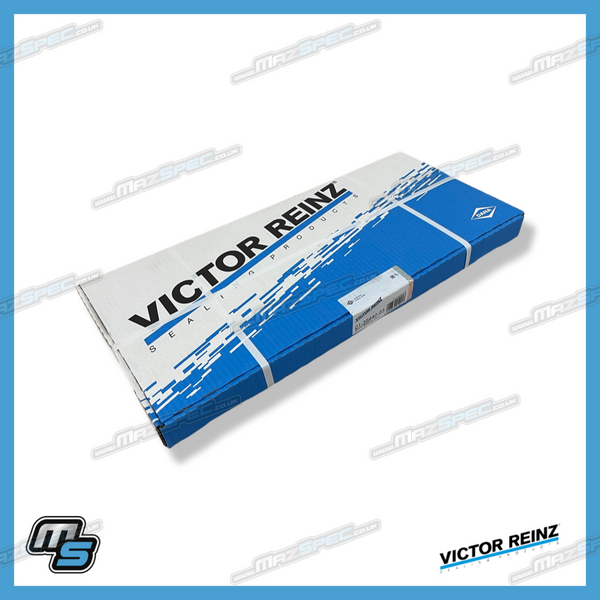

• 1 × Victor Reinz full engine gasket and seal set
• Valve stem seals
• Crankshaft sealing components
• Integrated shaft seal
• Associated engine gaskets and seals contained within the complete set

Installation notes:
All gasket faces and sealing surfaces should be thoroughly cleaned and inspected before assembly. Cylinder-head and engine-block mating surfaces should be checked for condition and flatness where applicable. Replace associated one-time-use components where specified and follow the correct Mazda workshop procedures for the particular engine.

As this is a comprehensive engine gasket set, individual minor gasket and seal contents should be confirmed from the supplied kit. Do not assume that every ancillary O-ring, washer, fastener or consumable required during an engine rebuild is included.
