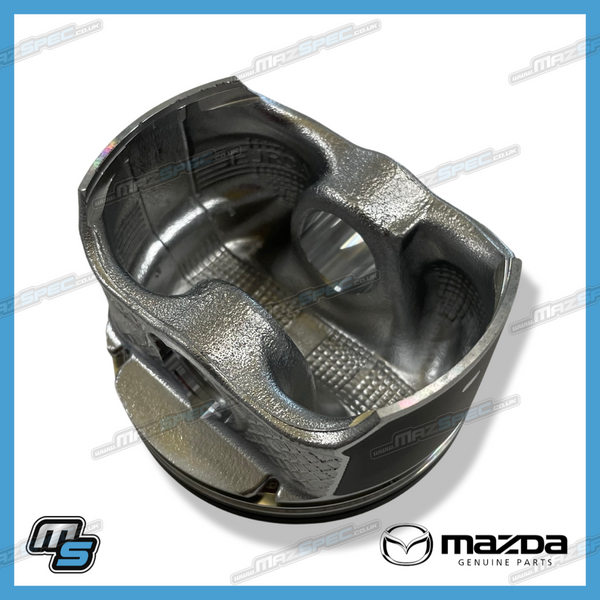

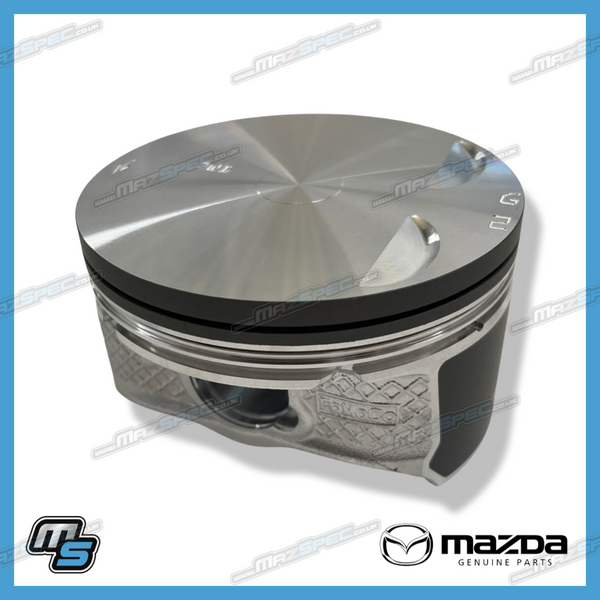

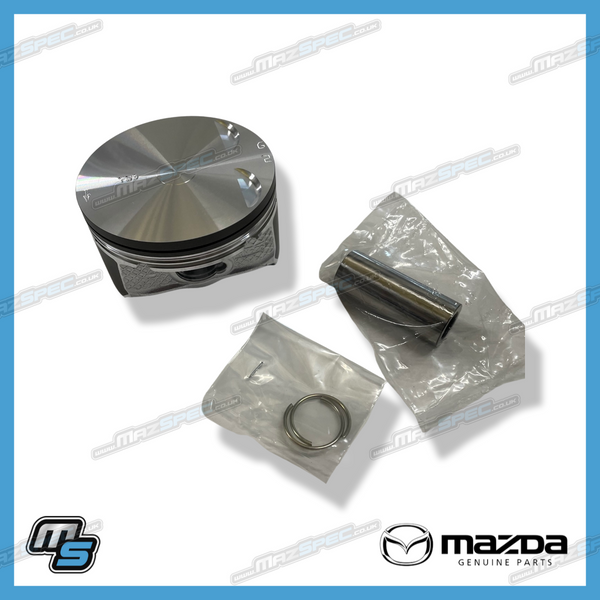

Genuine Mazda Engine Piston – Standard Size – 2.0 • LFY0-11-SA0A

Genuine Mazda Engine Piston – Standard Size – 2.0

Replacement Genuine Mazda engine piston for Mazda MX-5 Mk3.5 and Mk3.75 NC models fitted with the 2.0-litre LF-VE petrol engine.

The piston operates within the cylinder bore and transfers combustion pressure through the gudgeon pin and connecting rod to the crankshaft. Its crown, ring grooves and skirt are manufactured to precise dimensions to maintain compression, control oil consumption and provide the correct piston-to-bore clearance.

This is a standard-size replacement piston intended for an engine retaining its original standard cylinder bore. One piston is supplied per order quantity, while four pistons are fitted per complete engine.

Important contents information: This listing supplies the piston only. The piston rings, gudgeon pin, retaining circlips, connecting rod and connecting-rod bearings are not included.

Important sizing advice: Measure the cylinder bore and removed piston before ordering. A standard-size piston should only be installed where the bore diameter, taper, ovality and surface condition remain within the applicable Mazda service limits.

• Part type: Engine piston
• Common names: Piston / piston assembly component
• Mazda catalogue description: Piston / Piston Set
• Engine application: 2.0-litre LF-series petrol engine
• Primary engine code: LF-VE
• Size: Standard
• Quantity fitted per engine: 4
• Quantity supplied: 1 piston
• Piston rings included: No
• Gudgeon pin included: No
• Retaining circlips included: No
• Connecting rod included: No
• Connecting-rod bearing included: No
• Brand: Genuine Mazda
• Part No.: LFY0-11-SA0A
• MX-5 fitment: Mk3.5 and Mk3.75 NC 2.0 models

Typical reasons for replacement:

• Piston skirt scuffing or seizure damage
• Cracked or broken piston ring lands
• Damage caused by detonation or pre-ignition
• Excessive piston-to-bore clearance
• Gudgeon-pin bore wear
• Piston crown damage following overheating
• Low compression caused by piston or ring-groove damage
• Engine rebuild following lubrication failure

Fitment advice: Confirm that the engine is the 2.0-litre LF-VE unit and that the later piston specification is required. The 1.8-litre L8 engine uses a different piston. Earlier or previously rebuilt engines should be identified from their existing internal components and measured dimensions.

Bore-condition advice: Measure each cylinder using calibrated equipment and check for diameter, taper, ovality, scoring and heat damage. A worn or damaged cylinder may require professional honing, boring or sleeving rather than installation of a standard replacement piston.

Weight-matching advice: Where replacing a single piston, compare its weight with the remaining pistons and follow the applicable engine-building tolerances. Substantial weight differences can affect engine balance and smoothness.

Replacement advice: Inspect the cylinder bore, connecting rod, gudgeon pin, piston rings, connecting-rod bearings and crankshaft journal before assembly. Damage caused by oil starvation, overheating or detonation must be diagnosed before installing the replacement piston.

Other items to consider: Consider replacing the complete piston ring set, gudgeon pin and circlips, connecting-rod bearings, connecting-rod bolts, cylinder-head gasket, sump sealant, engine oil and oil filter during an engine rebuild.

Useful tools / consumables: Engine stand, cylinder-bore gauge, micrometer, piston-ring expander, piston-ring compressor, ring-gap gauges, calibrated torque wrench, clean engine oil, engine assembly lubricant and lint-free cleaning materials.

Difficulty guide: DIY Difficulty: Specialist / Advanced. Installation requires substantial engine dismantling, accurate component measurement, correct ring preparation and careful connecting-rod assembly.

Why Genuine Mazda? Genuine Mazda pistons match the original crown profile, compression height, skirt geometry, ring-groove dimensions and gudgeon-pin position. Correct dimensions are essential for maintaining compression ratio, piston-to-valve clearance, cylinder sealing and rotating-assembly balance.

What’s in the box: One Genuine Mazda standard-size 2.0-litre engine piston, part number LFY0-11-SA0A.

Installation notes: Completely dismantle and clean the affected engine components before assembly. Measure the cylinder bore and piston, confirm the required clearance and inspect the connecting rod and gudgeon pin. Fit the correct piston rings in their specified positions and orientation, then check every ring end gap in the intended cylinder. Lubricate the piston, rings, pin and cylinder bore with clean engine oil. Observe the piston-direction marking and install it using a suitable ring compressor. Fit the connecting-rod cap in its original orientation and tighten the rod bolts using the applicable Mazda torque and angle procedure. Confirm that the crankshaft rotates freely after installation and prime the lubrication system before first start.
