Victor Reinz Cylinder Head Gasket - MX-5 Mk3 NC 2.0 MZR • 61-37685-00

Replacement Victor Reinz cylinder head gasket for Mazda MX-5 Mk3 / NC and Mk3.5 / Mk3.75 NC 2.0 petrol models listed in the compatibility table.

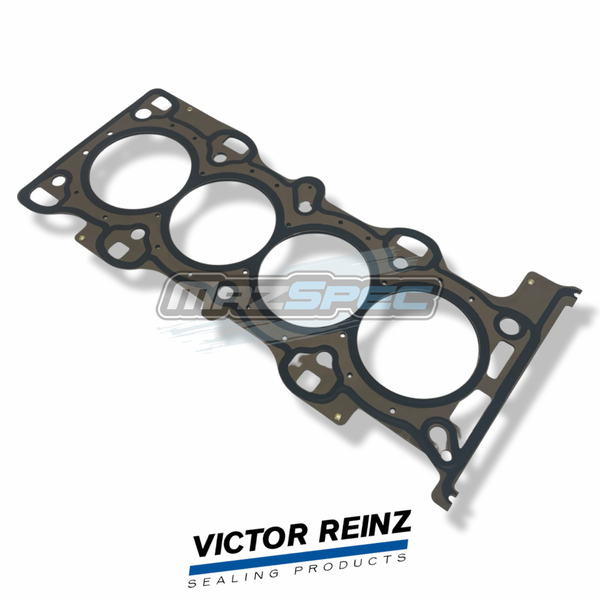

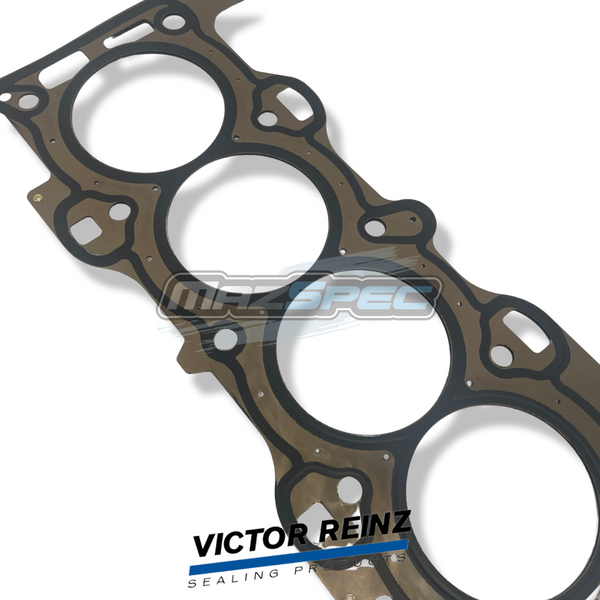

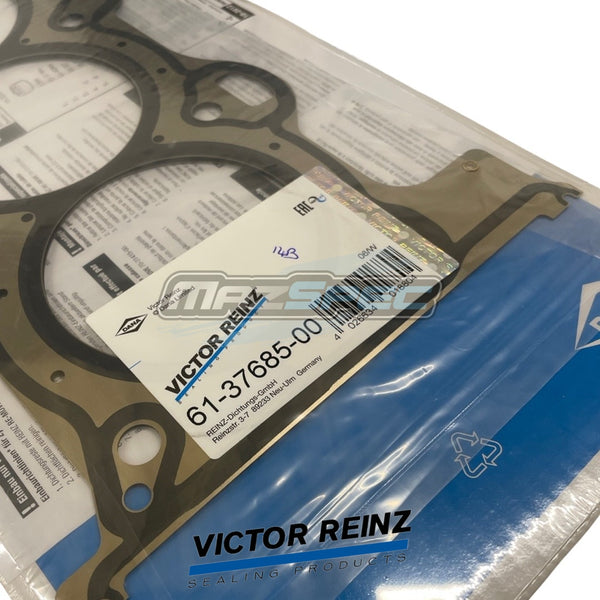

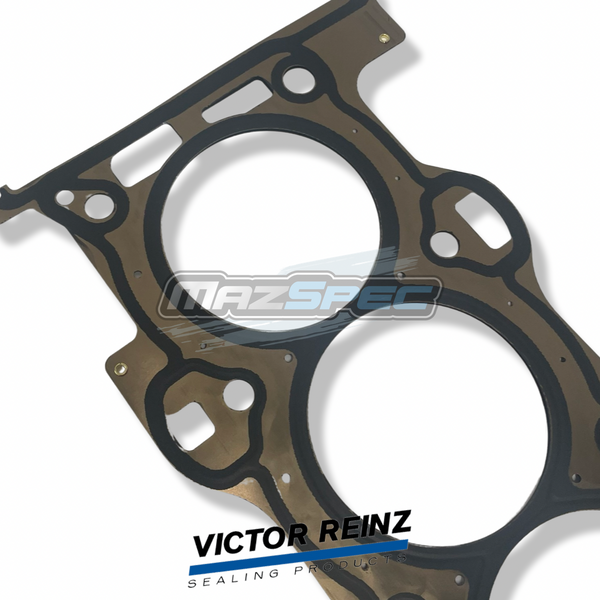

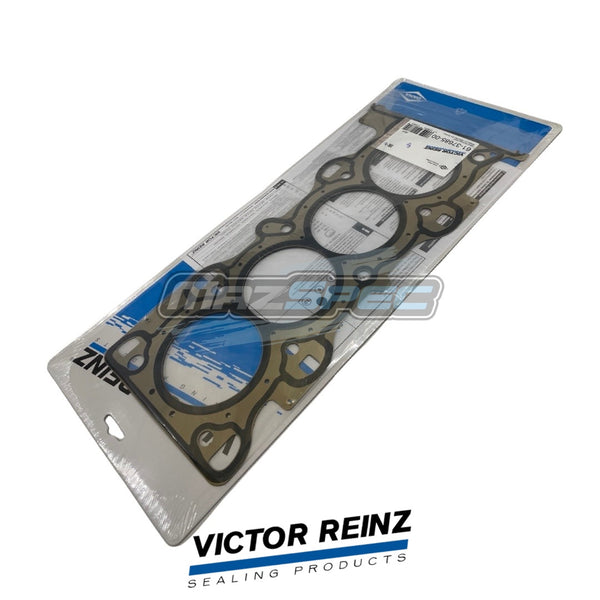

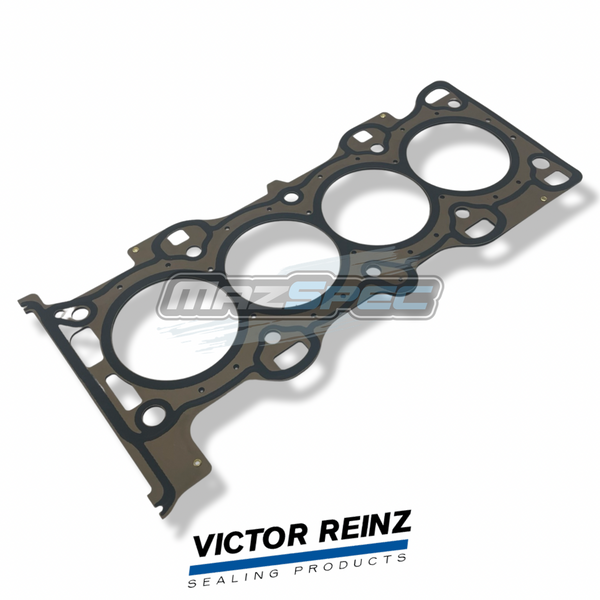

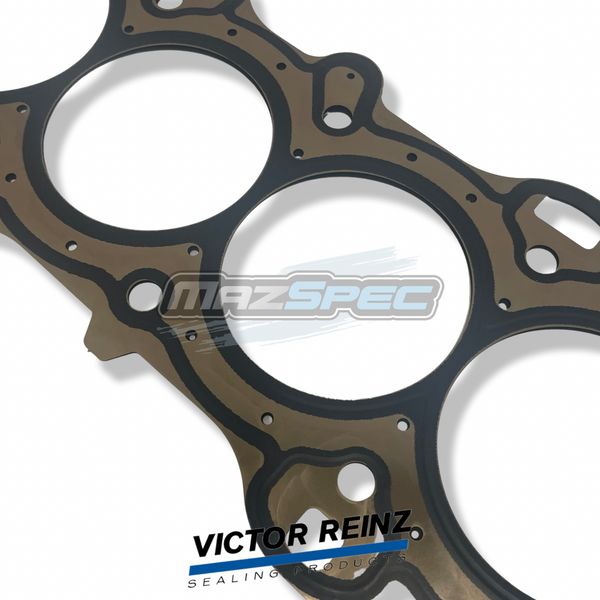

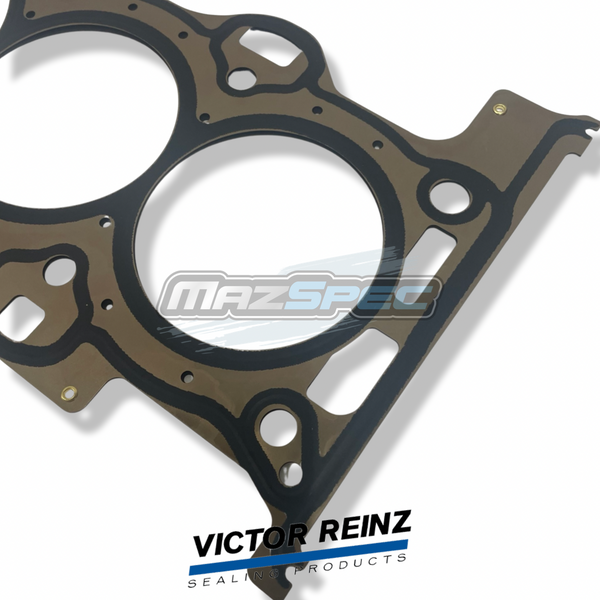

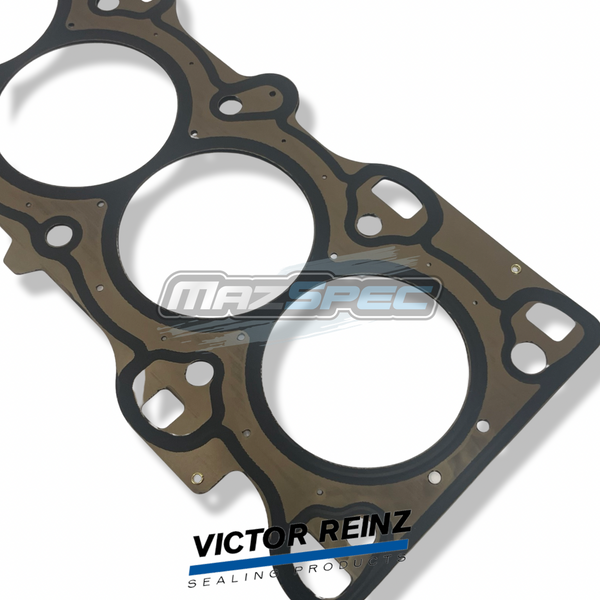

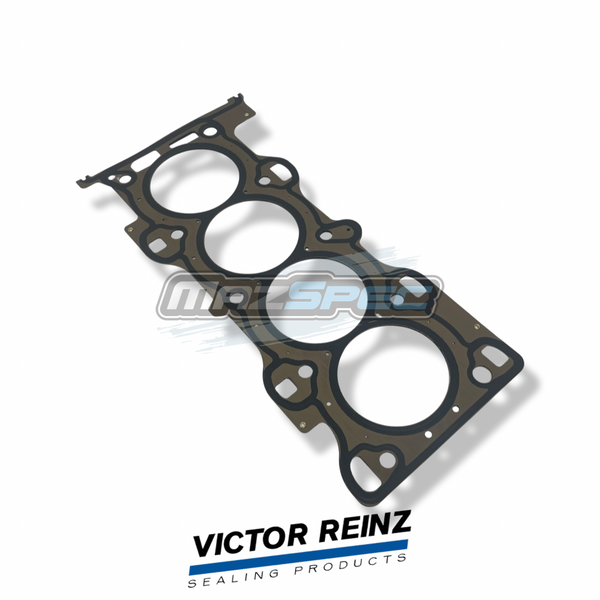

Victor Reinz 61-37685-00 is a multi-layer steel cylinder head gasket designed for the Mazda 2.0 MZR / LF-series petrol engine. Fitted between the cylinder head and engine block, it provides the critical seal around the combustion chambers while keeping the engine's coolant and lubrication passages correctly separated.

This gasket is specifically suitable for the confirmed Mazda MX-5 Mk3 / NC 2.0 applications shown in the compatibility table and uses a multi-layer steel (MLS) construction designed to cope with the high combustion pressures, temperatures and repeated thermal cycling experienced at the cylinder-head joint.

Part details:

• Brand: Victor Reinz
• Product type: Cylinder head gasket
• Victor Reinz part number: 61-37685-00
• Construction: Multi-layer steel (MLS)
• Application: Mazda 2.0 MZR / LF-series petrol engine
• Engine capacity: 1999 cc
• Quantity supplied: 1 gasket
• Quantity required: 1 per engine
• Mazda OE reference: L3G2-10-271A
• Associated Victor Reinz full engine gasket set: 01-37685-01
• Associated Victor Reinz cylinder head gasket set: 02-37685-01
• EAN: 4026634018804

Common reasons for replacement:

• Confirmed cylinder head gasket failure
• Cylinder head removal
• Cylinder head overhaul or repair
• Engine overheating damage requiring cylinder-head work
• Major engine rebuild or overhaul
• Replacement after the original cylinder-head sealing joint has been disturbed

Fitment advice:
This gasket is intended for the confirmed Mazda MX-5 2.0 MZR / LF-series applications shown in the compatibility table. It should not be assumed suitable for the MX-5 1.8 simply because both engines are fitted to the NC-generation MX-5; the 1.8 uses a different cylinder head gasket.

For imported, modified or previously repaired cars, matching the part number, gasket style or component specification on the part being replaced is recommended.

Other items to consider purchasing:

• Victor Reinz cylinder head gasket set
• Replacement cylinder head bolts where specified
• Rocker / camshaft cover gasket
• Inlet manifold gasket
• Exhaust manifold gasket
• Engine oil and oil filter
• Coolant
• Timing components where inspection or replacement is required

Useful tools / consumables:

• Calibrated torque wrench
• Angle gauge where required by the workshop procedure
• Gasket-removal and surface-cleaning materials
• Precision straight edge and suitable measuring equipment
• Suitable engine assembly lubricants and consumables

Difficulty guide: Advanced. Cylinder-head removal and installation requires careful preparation, accurate component inspection and adherence to the correct Mazda tightening sequence and workshop procedure.

Why Victor Reinz?
Victor Reinz is Dana's specialist sealing brand, with extensive experience in cylinder head gaskets and engine sealing technology. Its application-specific MLS head gaskets are designed for the high combustion pressures, temperatures and repeated thermal cycling found at the cylinder-head-to-engine-block joint.

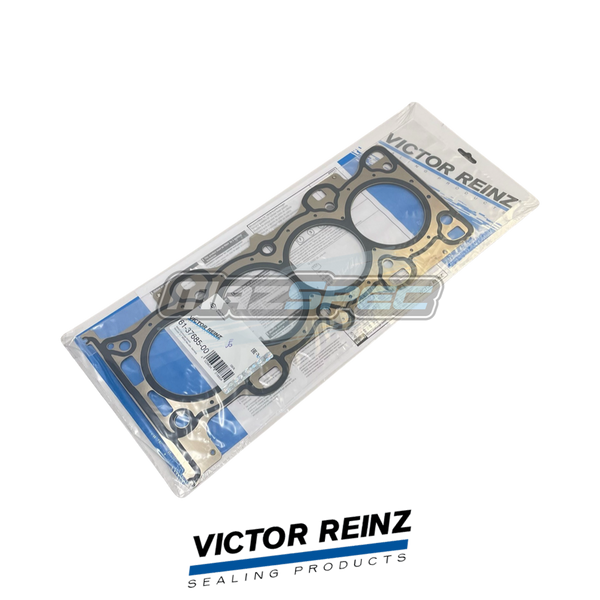

What's in the box:

• 1 × Victor Reinz multi-layer steel cylinder head gasket

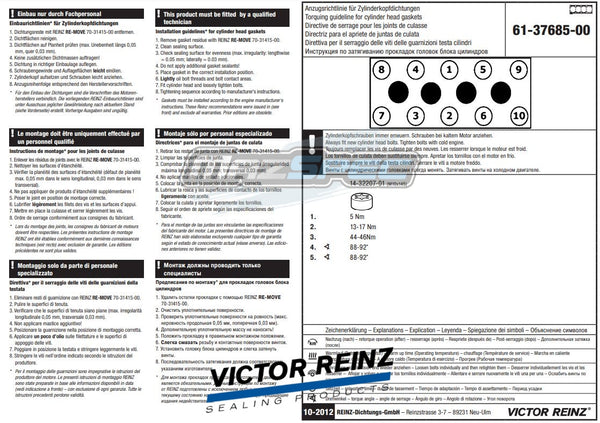

Installation notes:
The cylinder-head and engine-block mating surfaces should be thoroughly cleaned and checked for damage, distortion and flatness before assembly. Inspect the cylinder head carefully if the engine has previously overheated. Replace associated single-use fasteners where specified and follow the correct Mazda tightening sequence and torque / angle procedure for the specific engine.
