Genuine Mazda Clutch Release Fork / Release Arm • G607-16-520A

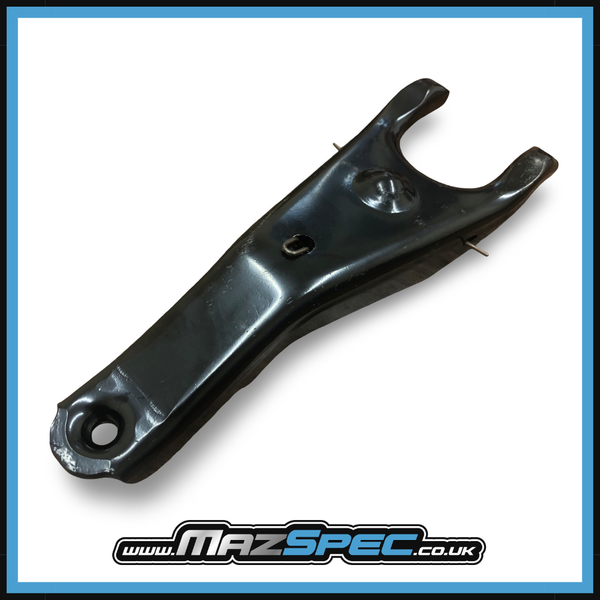

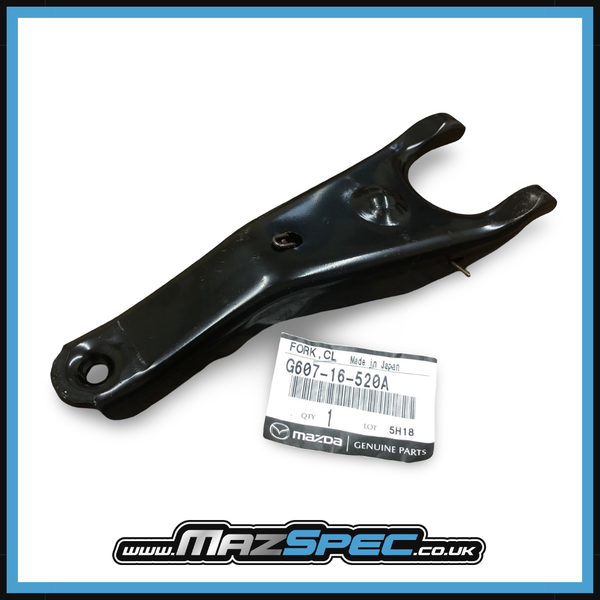

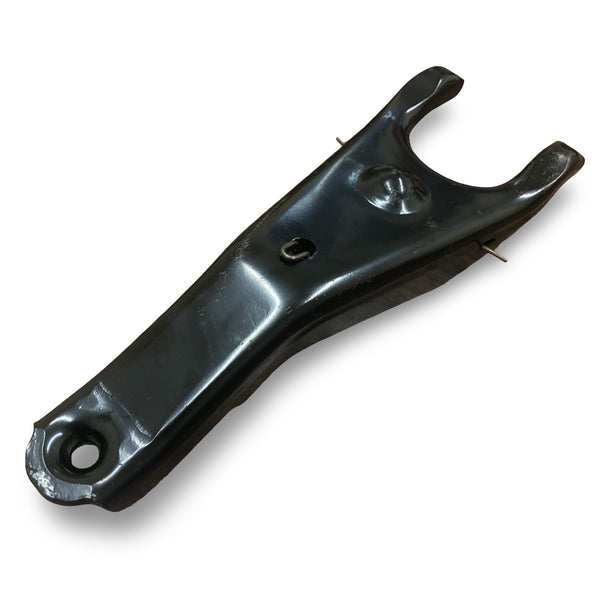

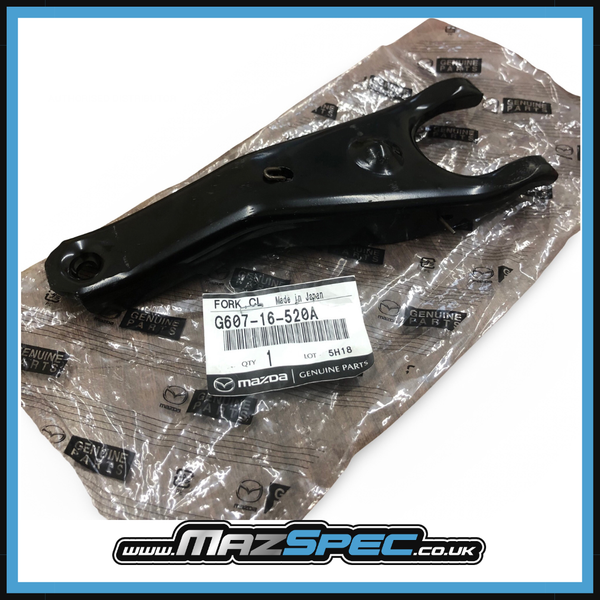

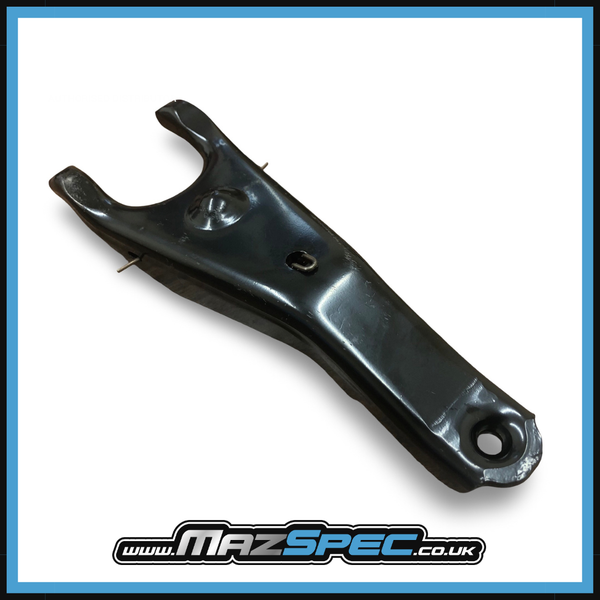

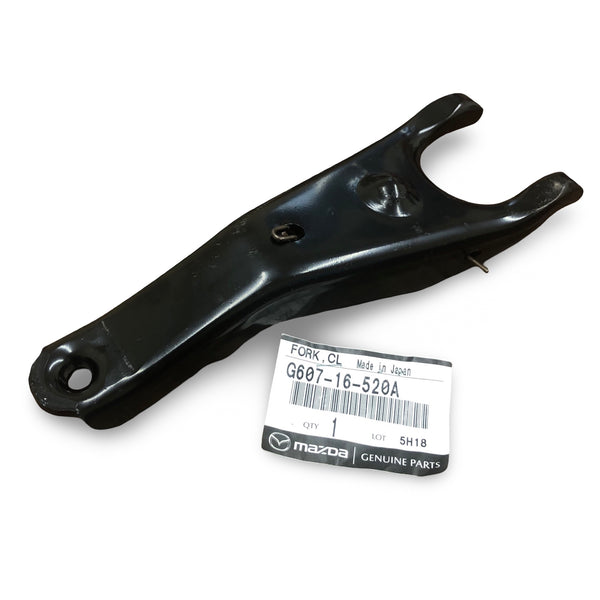

Genuine Mazda G607-16-520A Clutch Release Fork / Release Arm

Replacement Genuine Mazda clutch release fork for manual-transmission Mazda MX-5 Mk3, Mk3.5 and Mk3.75 / NC models from 2005 to 2015 listed in the compatibility table.

The clutch release fork, also known as the clutch release arm, is located inside the gearbox bellhousing. It transfers movement from the clutch slave cylinder and release mechanism to the clutch release bearing, allowing the bearing to press against the pressure-plate diaphragm spring when the clutch pedal is operated.

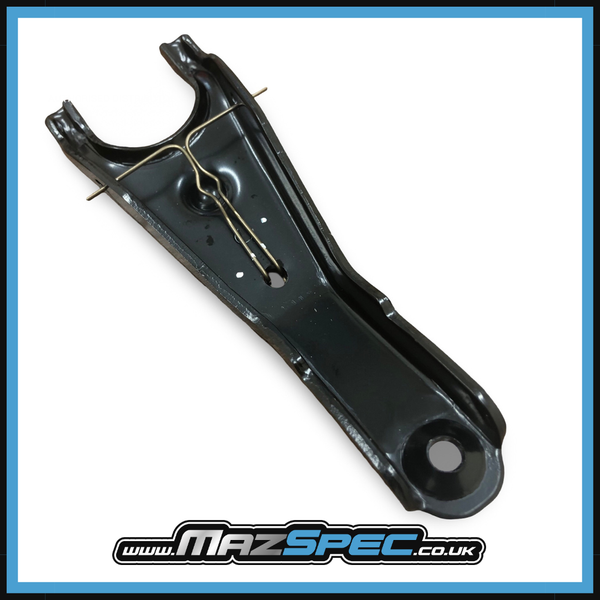

This listing is for one Genuine Mazda clutch release fork with spring clip. There is one clutch fork fitted per manual-transmission vehicle.

Replacement may be required where the original fork is bent, cracked, distorted or worn around its pivot and release-bearing contact points. Possible symptoms can include poor clutch disengagement, inconsistent pedal operation, unwanted noise from the release mechanism or difficulty selecting gears.

• Part type: Clutch release fork / clutch release arm
• Primary use: Transfers clutch actuation movement to the release bearing
• Location: Inside the gearbox bellhousing
• Position: Between the clutch slave-cylinder mechanism, pivot and release bearing
• Quantity per vehicle: One
• Quantity supplied: One clutch release fork with spring clip
• Brand: Genuine Mazda
• Part No.: G607-16-520A
• Also referenced as: G60716520A
• Previous Mazda reference: G607-16-520 / G60716520
• Fitment note: For confirmed five-speed and six-speed manual Mazda MX-5 NC applications only; not suitable for automatic-transmission vehicles

Fitment advice: Match the original clutch fork, pivot arrangement and manual gearbox specification before installation. Inspect the release bearing, pivot point, retaining spring, clutch slave-cylinder pushrod contact area and gearbox guide sleeve while the transmission is removed. For cars fitted with a replacement gearbox or non-standard clutch assembly, matching the original component arrangement is recommended.

Other items to consider: When changing this part, you may also want to consider purchasing the clutch release bearing, clutch fork pivot, retaining spring, clutch fork dust cover, clutch kit, pilot bearing, gearbox input-shaft seal and fresh transmission oil.

Useful tools / consumables: Transmission jack or suitable lifting equipment, clutch alignment tool, socket and spanner set, calibrated torque wrench, brake cleaner and the clutch-release mechanism lubricant specified by the applicable Mazda workshop procedure.

Difficulty guide: DIY Difficulty: Advanced. The gearbox normally requires removal to access and inspect the clutch release fork correctly. Safe transmission support, clutch alignment and careful reassembly of the complete release mechanism are required.

Why Genuine Mazda? Genuine Mazda clutch components are manufactured to match the original pivot geometry, release-bearing contact profile, slave-cylinder movement and gearbox bellhousing arrangement. Using the correct OE fork helps maintain smooth clutch disengagement, accurate release-bearing movement and compatibility with the surrounding Mazda clutch and transmission components.

What’s in the box: One Genuine Mazda clutch release fork with spring clip, part number G607-16-520A.

Installation notes: Inspect the fork pivot, release bearing, guide sleeve and slave-cylinder contact point before fitting the replacement fork. Apply only the specified lubricant to the designated pivot and contact surfaces, keeping the clutch disc and pressure-plate friction surfaces clean. Ensure the fork, spring clip and release bearing are engaged correctly before refitting the gearbox.
