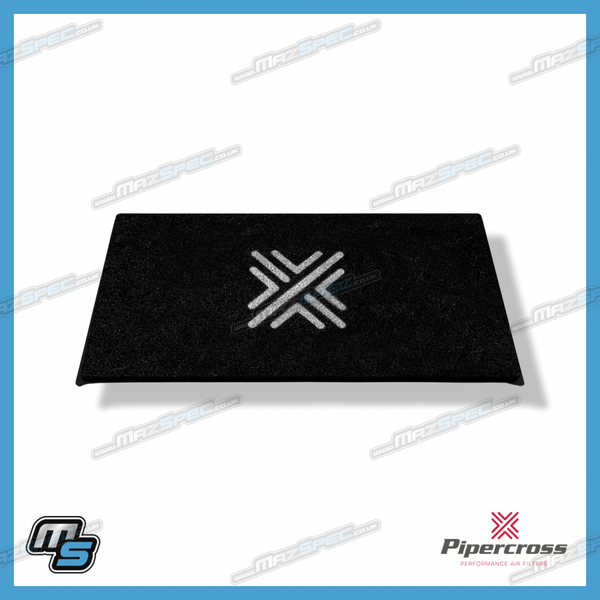

Pipercross Performance Panel Air Filter – MX-5 Mk4 / ND & RF 1.5 & 2.0 • PP1952

For Mazda MX-5 Mk4 / ND and RF 1.5 and 2.0 petrol models from 2015 onward using the standard factory airbox.

The Pipercross PP1952 is a direct-fit Performance Panel Air Filter designed to replace the original disposable air-filter element inside the standard Mazda MX-5 ND / RF airbox.

It retains the original Mazda airbox and intake system, making it a straightforward service replacement and performance filtration upgrade rather than a complete induction kit.

Product Specifications

• Brand: Pipercross
• Product range: Performance Panel Filter
• Pipercross part number: PP1952
• Filter type: Long-life replacement air filter
• Filter media: Multi-layer performance foam
• Shape: Rectangular
• Length: 342 mm
• Width: 142 mm
• Installation location: Original engine air-filter housing
• Factory airbox retained: Yes
• Direct-fit replacement: Yes
• Washable and reusable: Yes
• Quantity supplied: 1 air filter

Typical Reasons for Replacement / Upgrade

Suitable when replacing a dirty, damaged or ageing standard air-filter element, or where a washable and reusable Pipercross performance filter is preferred in place of the conventional disposable paper filter.

Fitment Advice

PP1952 fits directly into the original Mazda airbox and is suitable for both 1.5 and 2.0-litre MX-5 ND applications. Remove the existing filter, clear any loose debris from the housing and install the Pipercross element with its sealing edge correctly located before securing the airbox.

The application covers both soft-top MX-5 and RF models where the standard factory airbox is retained. For imported, modified or previously repaired cars, matching the part number, dimensions and intake specification of the component being replaced is recommended.

Cleaning & Maintenance

The Pipercross performance filter is washable and reusable. When servicing is required, remove loose contamination, apply an appropriate Pipercross air-filter cleaner, rinse using warm low-pressure water and allow the filter to dry naturally before refitting.

Pipercross Dirt Retention Additive may be used where appropriate but is not automatically required for normal road use. Avoid excessive application.

Other Items to Consider

• Pipercross C9000 Air Filter Cleaning Kit
• Replacement airbox clips or fixings where existing components are damaged or missing
• Intake hoses and clamps where deterioration is found during servicing

Useful Tools / Consumables

• Basic hand tools as required for airbox access
• Clean lint-free cloth
• Pipercross filter cleaner when servicing the filter

Difficulty Guide

Easy – a straightforward service item fitted directly inside the original engine airbox.

Why Pipercross?

Pipercross is a British performance air-filtration specialist producing vehicle-specific replacement filters, competition filters and complete intake systems. Its products are developed with a focus on airflow, filtration and serviceability, with application-specific designs ranging from direct-fit factory-airbox filters to complete performance intake systems.

What's in the Box?

• 1 x Pipercross PP1952 Performance Panel Air Filter

Installation Notes

Install PP1952 into the original Mazda air-filter housing in place of the existing element. Ensure the perimeter seal is correctly seated and the airbox is fully closed and secured before running the engine.
