EBC Yellowstuff & Premium OE 275mm Rear Brake Kit • PD03KR423

Fits Mazda MX-5 Mk2 / Mk2.5 NB 1.8 Sport models from 2001-2005 using the larger 275mm solid rear brake discs with Akebono rear calipers. This is the Sport / larger rear brake setup and is not suitable for NB models using the smaller standard rear brake arrangement.

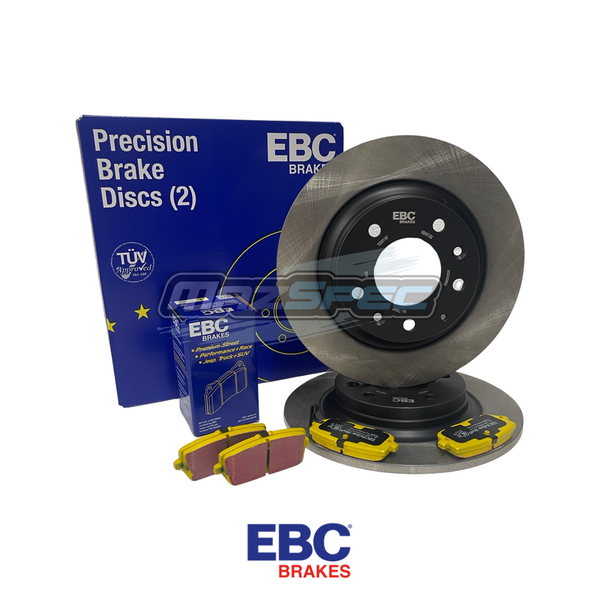

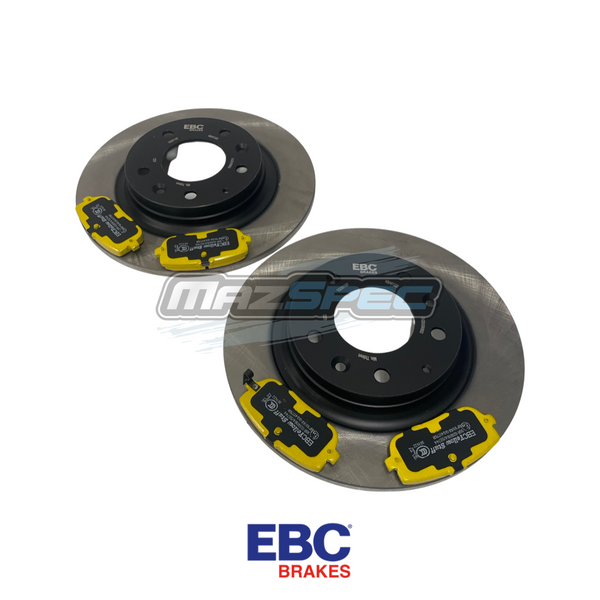

The EBC PD03KR423 rear brake kit combines a complete axle set of EBC Yellowstuff performance brake pads with a matched pair of EBC Premium OE Replacement plain rear brake discs. It provides a complete direct-fit rear braking package for compatible Mazda MX-5 Mk2 / Mk2.5 NB 1.8 Sport models.

The kit consists of EBC DP41453R Yellowstuff rear brake pads and EBC D1255 Premium OE Replacement rear brake discs. It is particularly suited to drivers looking for increased fast-road braking performance while retaining a conventional plain OE-style rear brake disc.

Product Specifications:

• Manufacturer: EBC Brakes
• EBC Kit Range: PD03
• Kit Part Number: PD03KR423
• Installation Position: Rear Axle
• Brake Pad Range: Yellowstuff
• Brake Pad Part Number: DP41453R
• Brake Pad Dimensions: 102 x 39 x 13mm
• Brake Pad Quantity: 4 pads / one complete rear axle set
• Brake Disc Range: EBC Premium OE Replacement
• Brake Disc Part Number: D1255
• Brake Disc Quantity: 2 discs / one complete rear axle pair
• Disc Type: Solid
• Disc Design: Plain OE-style replacement
• Disc Diameter: 275mm
• New Disc Thickness: 9mm
• Minimum Disc Thickness: 8mm
• Overall Disc Height: 35mm
• Wheel Holes: 4
• Rear Brake System: Akebono
• Quantity Required Per Vehicle: 1 kit

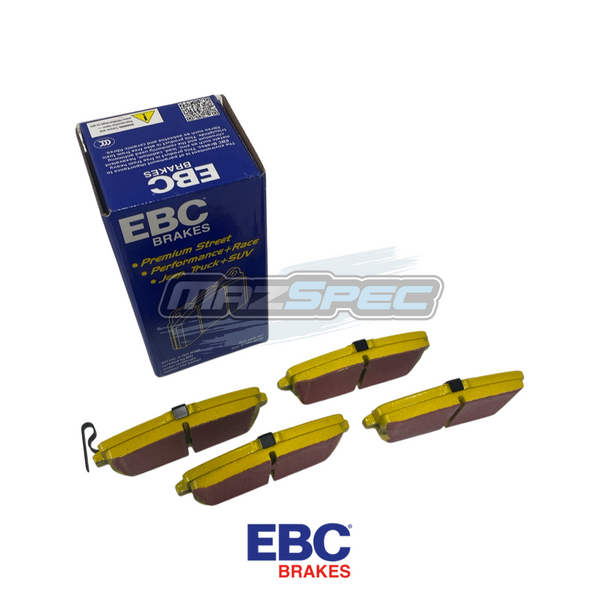

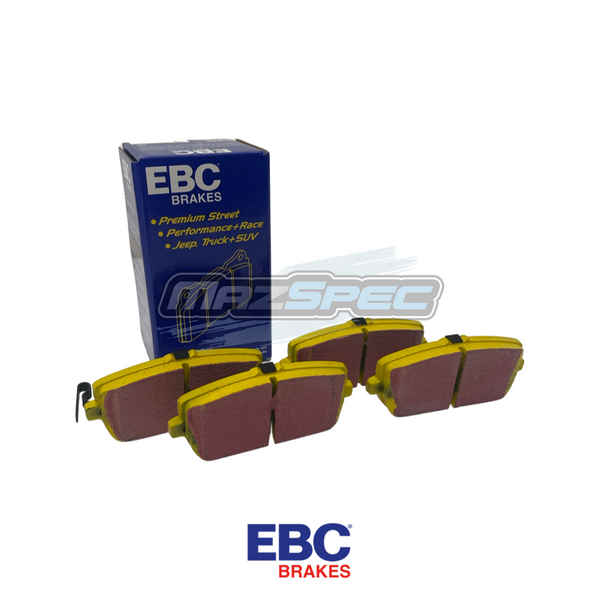

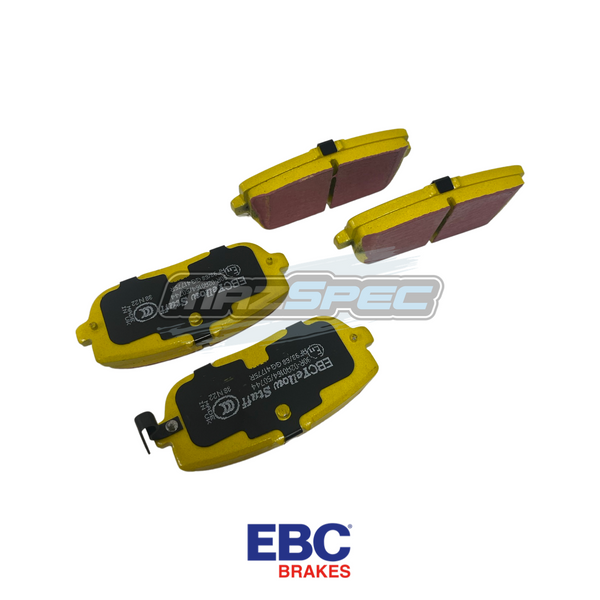

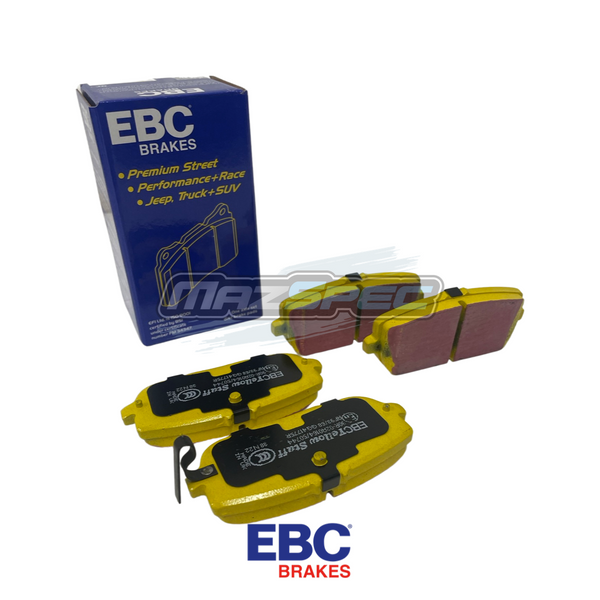

Yellowstuff Brake Pads

EBC Yellowstuff is a high-friction performance brake pad developed primarily for fast-road use. It offers strong braking performance from cold together with increased resistance to repeated heavy braking, making it well suited to enthusiast-driven MX-5s where more braking capability is required than from a conventional everyday replacement pad.

The Yellowstuff compound incorporates EBC's Brake-In™ surface coating to assist initial bedding and uses a fully shimmed, slotted and chamfered construction. EBC currently positions Yellowstuff as a premium fast-street pad rather than its preferred dedicated track compound.

For an MX-5 intended for repeated circuit use, EBC recommends moving to Bluestuff or one of its more track-focused compounds, particularly where rapid bedding and sustained higher-temperature performance are important.

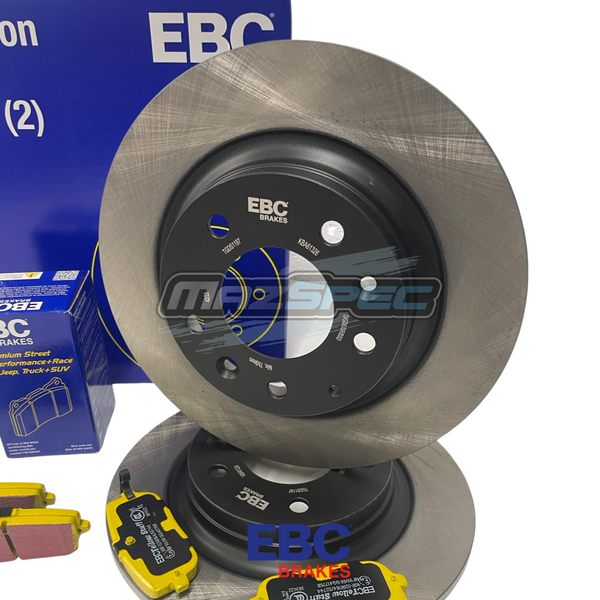

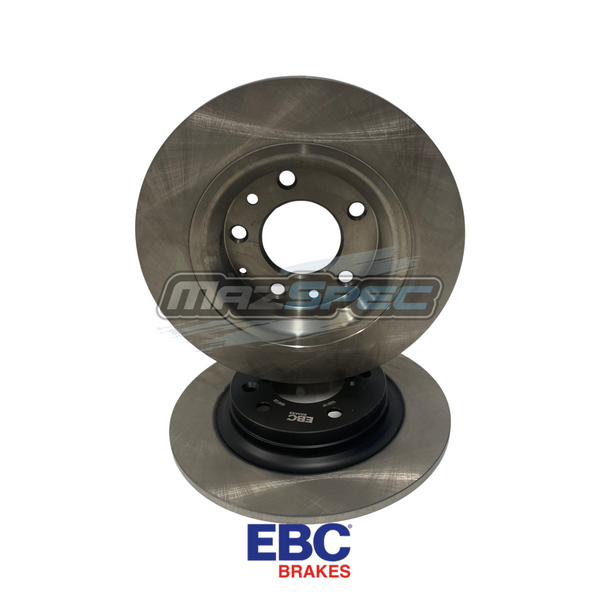

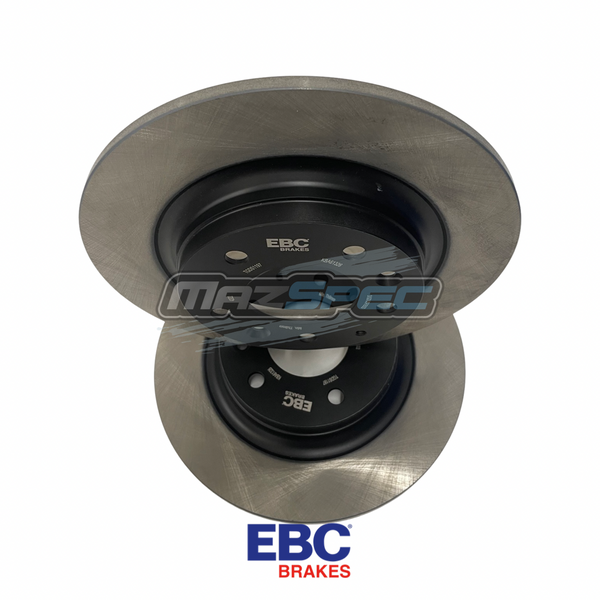

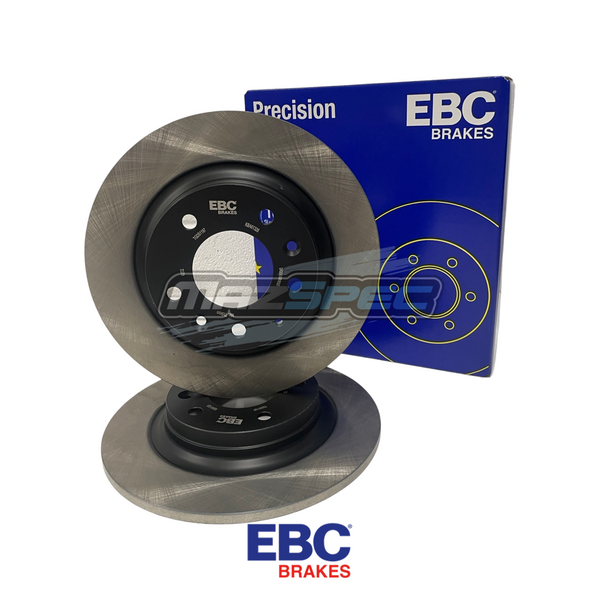

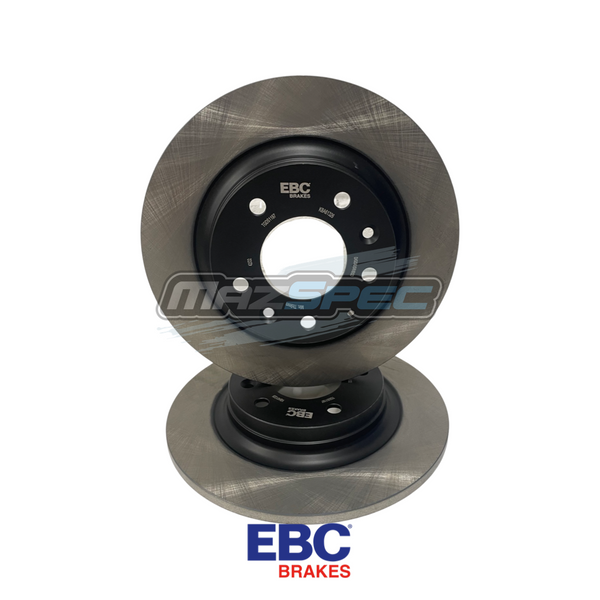

EBC Premium OE Replacement Brake Discs

The matching D1255 discs are EBC Premium plain brake discs designed as direct replacements for the original larger rear discs fitted to the applicable MX-5 NB Sport braking system.

They retain the original 275mm diameter, 9mm thickness and four-hole mounting arrangement. The plain braking surface makes this kit a useful choice for customers wanting the increased friction characteristics of Yellowstuff pads while retaining an OE-style rear disc rather than moving to a grooved, slotted or dimpled design.

Typical Reasons for Replacement or Upgrade:

• Existing rear brake discs have reached or are approaching minimum thickness
• Rear discs are heavily corroded, scored or suffering from excessive runout
• Rear brake pads are worn or approaching their service limit
• Upgrading from standard road-focused pads for more demanding fast-road driving
• Replacing rear pads and discs together as a matched EBC package
• Refreshing the larger Sport-specification rear braking system

Fitment Advice:

This kit is specifically for MX-5 Mk2 / Mk2.5 NB 1.8 Sport applications using the 275mm solid rear brake discs with Akebono rear calipers.

Other MX-5 NB models can use a different rear disc diameter and brake arrangement, so this kit should not be selected simply because the vehicle is an NB 1.8.

For imported, modified or previously repaired cars, matching the part number or component style on the part being replaced is recommended.

Rear brake discs should be installed onto thoroughly cleaned and corrosion-free hub faces. Care should be taken when retracting the rear caliper pistons because the rear calipers incorporate the mechanical handbrake mechanism. All fasteners should be tightened to the appropriate Mazda torque specification.

New pads and discs should be progressively bedded according to EBC's current bedding procedure before sustained heavy braking.

Other Items to Consider:

• Matching EBC front brake pads and discs
• Fresh performance brake fluid
• Braided brake hoses where appropriate
• Rear brake fitting hardware where worn or corroded
• Brake cleaner
• Suitable high-temperature brake lubricant for approved contact points

Useful Tools:

• Torque wrench
• Suitable rear brake piston wind-back tool
• Brake cleaner
• Wire brush or hub-cleaning tool
• Dial indicator where checking brake disc runout

Difficulty Guide: Intermediate. Rear brake replacement requires safe vehicle lifting, correct hub preparation and correct servicing of the rear caliper and handbrake mechanism. Professional installation is recommended where the installer is not experienced with braking systems.

Why EBC?

EBC Brakes is a long-established British braking specialist producing replacement, performance and motorsport brake components. The PD03 range combines EBC Yellowstuff fast-road performance pads with Premium OE-style replacement discs, providing a convenient matched package for drivers looking for increased braking capability while retaining a conventional direct-fit disc design.

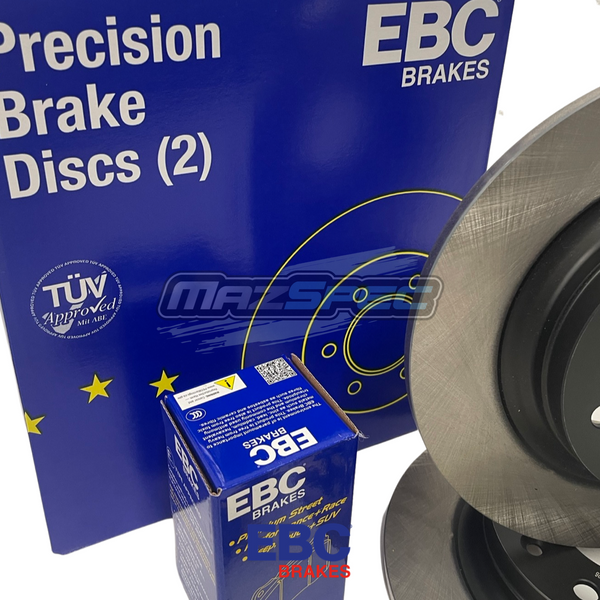

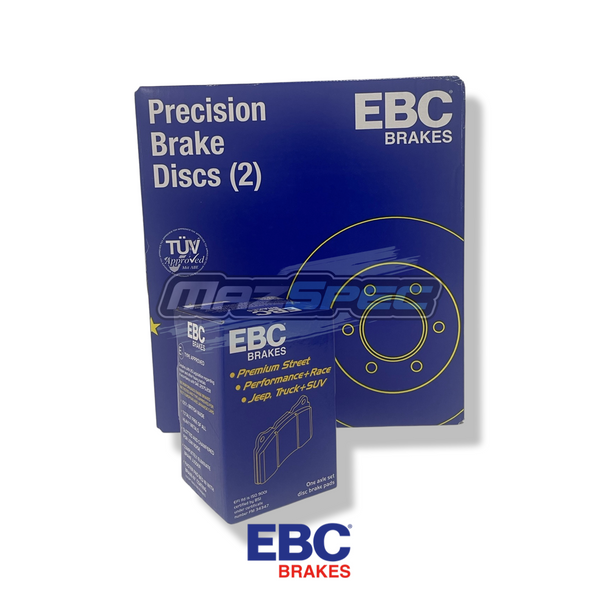

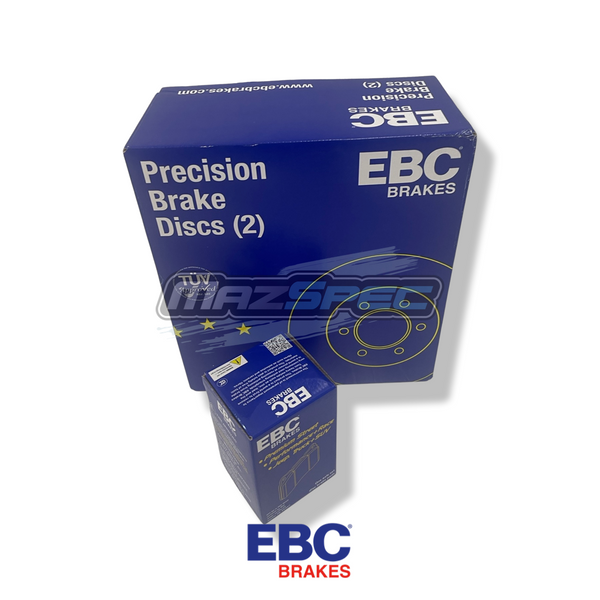

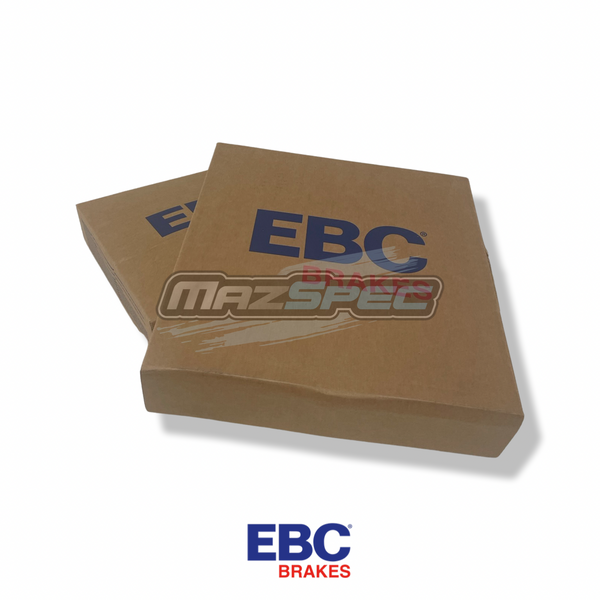

What's in the Box?

• 2 x EBC D1255 Premium OE Replacement 275mm solid rear brake discs
• 1 x EBC DP41453R Yellowstuff rear brake pad set – 4 pads
• Complete brake pad and disc package for one rear axle
