EBC Bluestuff NDX & GD Sport 290mm Front Brake Kit • PD14KF690

Fits Mazda MX-5 Mk3 / Mk3.5 / Mk3.75 NC 1.8 and 2.0 models using the 290mm vented front brake discs with Advics front calipers.

The EBC PD14KF690 front brake kit combines a complete axle set of EBC Bluestuff NDX performance brake pads with a matched pair of EBC GD Sport dimpled and grooved front brake discs. It provides a direct-fit performance braking package for compatible Mazda MX-5 NC models, suitable for serious fast-road driving and lighter trackday use.

The kit consists of EBC DP51774NDX Bluestuff NDX front brake pads and EBC GD1505 GD Sport front brake discs. EBC application data supports the kit across both 1.8 and 2.0-litre MX-5 NC applications.

Product Specifications:

• Manufacturer: EBC Brakes
• EBC Kit Range: PD14
• Kit Part Number: PD14KF690
• Installation Position: Front Axle
• Brake Pad Range: Bluestuff NDX
• Brake Pad Part Number: DP51774NDX
• Brake Pad Dimensions: 123 x 58 x 14mm
• Bluestuff NDX Friction Rating: 0.52 Mu
• Brake Pad Approval: ECE R90 approved for this application
• Brake Pad Quantity: 4 pads / one complete front axle set
• Brake Disc Range: GD Sport
• Brake Disc Part Number: GD1505
• Brake Disc Quantity: 2 discs / one complete front axle pair
• Disc Type: Vented
• Disc Design: Dimpled and wide-aperture grooved
• Disc Diameter: 290mm
• New Disc Thickness: 22mm
• Minimum Disc Thickness: 20mm
• Overall Disc Height: 45mm
• Centre Bore: 72mm
• PCD: 5 x 114.3mm
• Wheel Holes: 5
• Front Brake System: Advics
• Quantity Required Per Vehicle: 1 kit

Bluestuff NDX Brake Pads

EBC Bluestuff NDX is a high-friction 0.52 Mu performance compound developed for demanding fast-road driving, trackdays and entry-level club-level use. It provides useful braking performance from cold while offering the temperature capability and fade resistance required for more demanding driving than a conventional road-focused brake pad.

Bluestuff NDX pads are heat scorched during manufacture to assist the bedding process. EBC currently positions NDX for fast-road and lighter track work, and the DP51774NDX application is listed as both R90 approved and track suitable.

EBC GD Sport Brake Discs

The matching GD1505 discs use EBC's GD Sport wide-aperture groove and blind-dimple design. The grooves help clear brake dust, water, gases and debris from the braking surface while helping manage temperatures during repeated braking.

The dimples provide a degassing effect without passing completely through the disc and should not be confused with conventional fully cross-drilled brake discs.

The GD1505 retains the original 290mm diameter, 22mm thickness and 5 x 114.3mm mounting arrangement used by the compatible MX-5 NC front braking system, allowing the kit to be installed without a big-brake conversion.

Typical Reasons for Replacement or Upgrade:

• Existing front brake discs have reached or are approaching minimum thickness
• Brake discs are heavily corroded, scored or suffering from excessive runout
• Front brake pads are worn or approaching their service limit
• Upgrading from standard road-focused brake components for more demanding driving
• Preparing an MX-5 for fast-road or occasional trackday use
• Replacing front pads and discs together with a matched EBC performance package

Fitment Advice:

This kit is for the 290mm vented front disc and Advics front brake system used on compatible Mazda MX-5 NC models.

For imported, modified or previously repaired cars, matching the part number or component style on the part being replaced is recommended.

Brake discs should be installed onto thoroughly cleaned and corrosion-free hub faces. Disc runout should be checked where appropriate, and all brake fasteners should be tightened to the correct Mazda torque specifications.

New Bluestuff pads and GD discs must be progressively bedded in according to EBC's current bedding procedure before being subjected to sustained heavy braking or track use.

Other Items to Consider:

• Matching EBC rear brake pads and discs
• Fresh high-performance brake fluid
• Braided brake hoses for performance applications
• Brake fitting hardware where worn or corroded
• Brake cleaner
• Suitable high-temperature brake lubricant for approved contact points

Useful Tools:

• Torque wrench
• Brake piston compression tool
• Brake cleaner
• Wire brush or hub-cleaning tool
• Dial indicator where checking brake disc runout

Difficulty Guide: Intermediate. Brake replacement requires safe vehicle lifting, correct preparation of the hub and braking components and accurate torque procedures. Professional installation is recommended if you are not experienced with brake-system servicing.

Why EBC?

EBC Brakes is a long-established British braking specialist producing replacement, performance and motorsport brake components. The PD14 range combines Bluestuff NDX pads with matching GD Sport discs to provide a convenient direct-fit package for drivers requiring greater fast-road and trackday capability than a conventional everyday replacement braking setup.

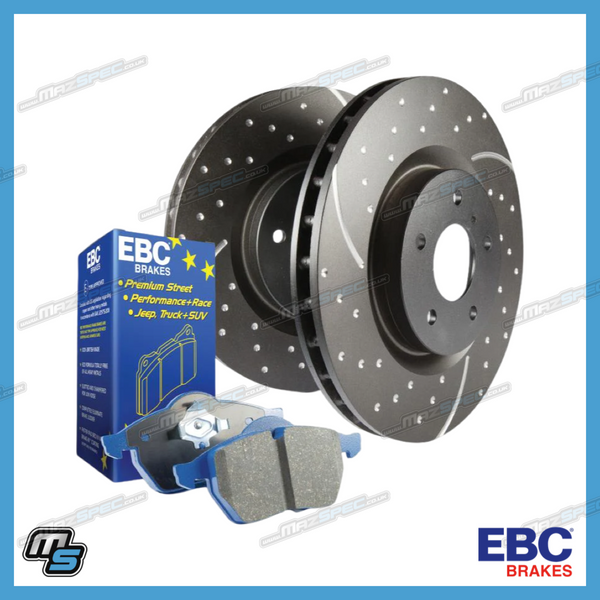

What's in the Box?

• 2 x EBC GD1505 GD Sport 290mm vented front brake discs
• 1 x EBC DP51774NDX Bluestuff NDX front brake pad set – 4 pads
• Complete pad and disc package for one front axle
