EBC Yellowstuff & Premium OE 275mm Rear Brake Kit – Sport LSD • PD03KR424

Fits Mazda MX-5 Mk2 / Mk2.5 NB 1.8 Sport (LSD) models from 2001-2005 using the larger 275mm solid rear brake discs with Akebono rear calipers.

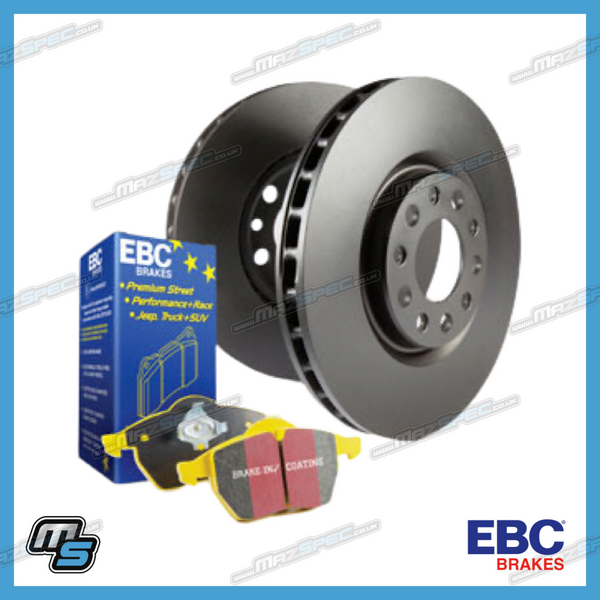

The EBC PD03KR424 rear brake kit combines a complete axle set of EBC Yellowstuff performance brake pads with a matched pair of EBC Premium OE Replacement plain rear brake discs. It provides a complete direct-fit rear braking package for compatible Mazda MX-5 NB 1.8 Sport LSD applications.

The kit consists of EBC DP41685R Yellowstuff rear brake pads and EBC D1255 Premium OE Replacement rear brake discs. This particular EBC kit should not be confused with other 275mm NB Sport rear kits using a different rear pad shape.

Product Specifications:

• Manufacturer: EBC Brakes
• EBC Kit Range: PD03
• Kit Part Number: PD03KR424
• Installation Position: Rear Axle
• Brake Pad Range: Yellowstuff
• Brake Pad Part Number: DP41685R
• Brake Pad Dimensions: 102 x 43 x 13mm
• Brake Pad Approval: ECE R90 Approved
• Brake Pad Quantity: 4 pads / one complete rear axle set
• Brake Disc Range: EBC Premium OE Replacement
• Brake Disc Part Number: D1255
• Brake Disc Quantity: 2 discs / one complete rear axle pair
• Disc Type: Solid
• Disc Design: Plain OE-style replacement
• Disc Diameter: 275mm
• New Disc Thickness: 9mm
• Minimum Disc Thickness: 8mm
• Overall Disc Height: 35mm
• Centre Bore: 55mm
• PCD: 4 x 100mm
• Wheel Holes: 4
• Rear Brake System: Akebono
• Quantity Required Per Vehicle: 1 kit

Yellowstuff Brake Pads

EBC Yellowstuff is a high-friction performance brake pad developed primarily for fast-road use. It provides strong braking performance from cold together with increased resistance to repeated heavy braking, making it well suited to enthusiast-driven MX-5s where greater braking capability is required than from a conventional everyday replacement pad.

The DP41685R pads are fully shimmed, chamfered and slotted and incorporate EBC's Brake-In™ surface coating to assist initial bedding. EBC currently lists this application as ECE R90 approved.

EBC currently positions Yellowstuff primarily as a fast-street / fast-road compound. Although capable of demanding performance use once correctly bedded, EBC lists DP41685R as not being its preferred track pad. For regular circuit use, Bluestuff or one of EBC's dedicated motorsport compounds should be considered.

EBC Premium OE Replacement Brake Discs

The matching D1255 discs are EBC Premium plain brake discs designed as direct replacements for the larger rear rotors used by the applicable MX-5 NB Sport braking system.

They retain the 275mm nominal diameter, solid construction, 9mm thickness and 4 x 100mm mounting arrangement. The plain braking surface makes this kit particularly suitable for owners wanting the increased friction characteristics of Yellowstuff pads while retaining a conventional OE-style rear disc.

Typical Reasons for Replacement or Upgrade:

• Existing rear brake discs have reached or are approaching minimum thickness
• Rear brake discs are corroded, scored or suffering from excessive runout
• Rear brake pads are worn or approaching their service limit
• Upgrading from standard road-focused pads for more demanding fast-road driving
• Replacing rear pads and discs together with a matched EBC package
• Refreshing the larger Sport-specification rear braking system

Fitment Advice:

PD03KR424 is specifically catalogued for the MX-5 NB 1.8 Sport (LSD) application using 275mm solid rear discs and Akebono rear calipers.

EBC lists another Yellowstuff rear pad configuration for other NB Sport applications, so the 275mm disc diameter alone should not be used to determine that PD03KR424 is correct.

For imported, modified or previously repaired cars, matching the part number or component style on the part being replaced is recommended.

Rear brake discs should be installed onto thoroughly cleaned and corrosion-free hub faces. Care should be taken when servicing the rear calipers because the mechanical handbrake mechanism is incorporated into the rear caliper assembly. All fasteners should be tightened to the appropriate Mazda torque specifications.

New pads and discs should be progressively bedded according to EBC's current bedding procedure before sustained heavy braking.

Other Items to Consider:

• Matching EBC front brake pads and discs
• Fresh performance brake fluid
• Braided brake hoses where appropriate
• Rear brake fitting hardware where worn or corroded
• Brake cleaner
• Suitable high-temperature brake lubricant for approved contact points

Useful Tools:

• Torque wrench
• Suitable rear brake piston wind-back tool
• Brake cleaner
• Wire brush or hub-cleaning tool
• Dial indicator where checking brake disc runout

Difficulty Guide: Intermediate. Rear brake replacement requires safe vehicle lifting, correct hub preparation and correct servicing of the rear caliper and handbrake mechanism. Professional installation is recommended where the installer is not experienced with braking systems.

Why EBC?

EBC Brakes is a long-established British braking specialist producing replacement, performance and motorsport brake components. The PD03 range combines EBC Yellowstuff fast-road performance pads with Premium OE-style replacement discs, providing a convenient matched package for drivers looking for increased braking capability while retaining a conventional direct-fit disc design.

What's in the Box?

• 2 x EBC D1255 Premium OE Replacement 275mm solid rear brake discs
• 1 x EBC DP41685R Yellowstuff rear brake pad set – 4 pads
• Complete brake pad and disc package for one rear axle
