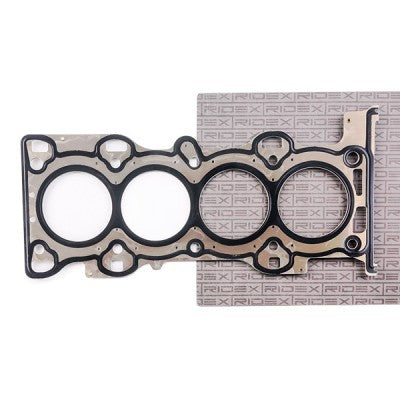

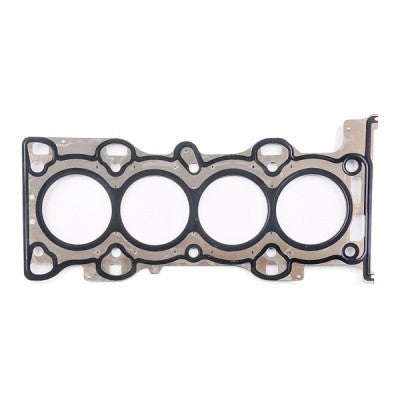

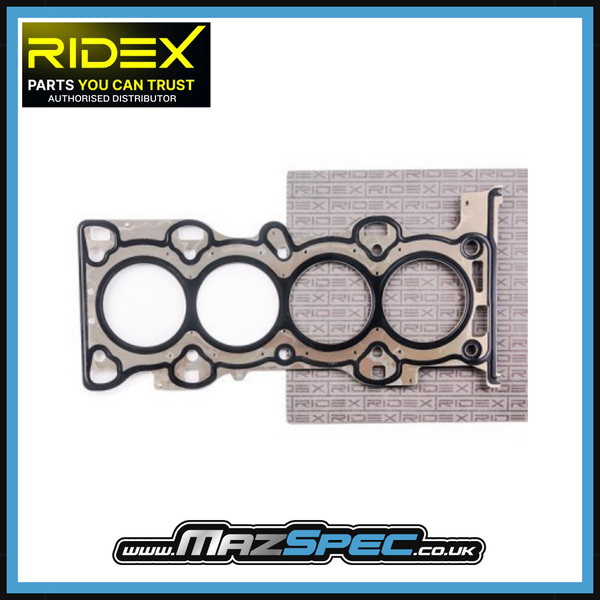

RIDEX Cylinder Head Gasket – MX-5 Mk3 NC 1.8 • 318G0183

RIDEX 318G0183 Cylinder Head Gasket – MX-5 Mk3 NC 1.8

Replacement RIDEX metal cylinder head gasket for Mazda MX-5 Mk3/NC 1.8-litre petrol models.

Important fitment restriction: This gasket is specifically confirmed for the 1.8-litre NC engine only. Mazda MX-5 Mk3/NC 2.0-litre variants require a different cylinder head gasket.

The cylinder head gasket seals the joint between the cylinder block and cylinder head. It must maintain combustion pressure while keeping engine oil and coolant passages sealed from each other. Because the gasket is compressed during installation, it must not be reused after the cylinder head has been removed.

• Part type: Cylinder head gasket
• Material: Metal
• Gasket diameter: 85 mm
• Installed thickness: 0.5 mm
• Engine application: 1.8-litre petrol
• Engine family: Mazda MZR L8
• EAN: 4059191270736
• Quantity supplied: 1 cylinder head gasket
• Brand: RIDEX
• Part No.: 318G0183

Fitment advice: MazSpec confirms RIDEX 318G0183 for all Mazda MX-5 Mk3/NC 1.8 applications from March 2005 through December 2014. The 2.0-litre NC uses a different gasket and must not be allocated to this part.

Common replacement reasons: Cylinder head removal, combustion-gas leakage into the cooling system, coolant loss, oil and coolant contamination, overheating-related gasket failure, low compression between cylinders or visible sealing failure during engine dismantling.

Other items to consider: Inspect the cylinder head for distortion or cracking, check the block and head sealing faces, inspect the cooling system and determine the original cause of any overheating. Cylinder head bolts, rocker-cover gaskets, intake/exhaust manifold gaskets, coolant and engine oil may also require replacement during the repair.

Useful tools / consumables: Accurate torque wrench, angle gauge where required, straight edge and feeler gauges, suitable surface-cleaning equipment, engine timing tools, fresh coolant, engine oil and replacement cylinder head bolts where specified by the applicable workshop procedure.

Difficulty guide: DIY Difficulty: Advanced / Professional. Cylinder head gasket replacement requires substantial engine dismantling, correct valve timing, inspection of the head and block surfaces and precise tightening of the cylinder head fasteners in the specified sequence.

Why RIDEX? RIDEX engine sealing components provide a cost-effective aftermarket replacement manufactured to application-specific dimensions. This gasket uses a metal construction with an 85 mm bore diameter and 0.5 mm installed thickness for the intended 1.8-litre application.

What’s in the box: One RIDEX 318G0183 cylinder head gasket. Cylinder head bolts, ancillary gaskets, fluids and installation tools are not included.

Installation notes: Do not reuse the old cylinder head gasket. Follow the applicable Mazda workshop procedure when removing and refitting the cylinder head. Thoroughly clean and inspect the head and block sealing faces without damaging them, check cylinder-head flatness and investigate any overheating damage. Install the new gasket in the correct orientation, use the specified cylinder head fasteners and follow the correct tightening sequence, torque values and angle stages. Re-establish engine timing correctly before starting the engine and refill and bleed the cooling system as required.
