RIDEX PLUS Camshaft Timing Belt – MX-5 NA/NB 1.6 & 1.8 • 306T0086P

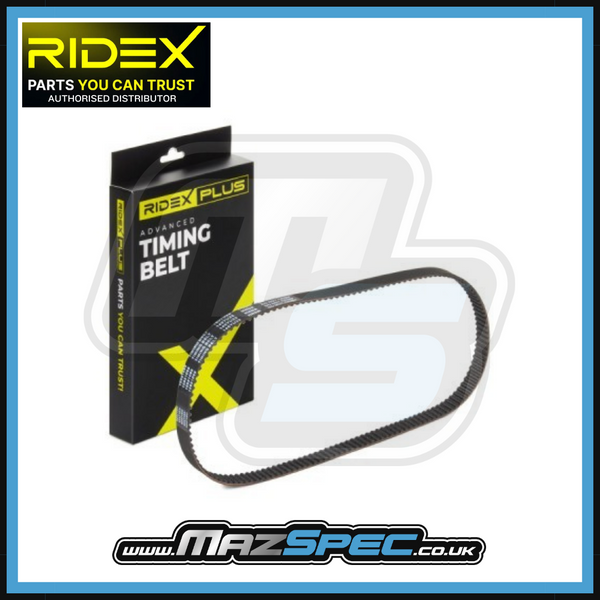

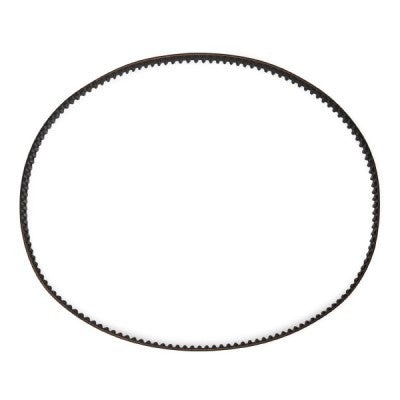

RIDEX PLUS 306T0086P Camshaft Timing Belt – MX-5 NA/NB 1.6 & 1.8

Replacement RIDEX PLUS camshaft timing belt for Mazda MX-5 Mk1/NA, Mk2/NB and Mk2.5/NB-FL 1.6 and 1.8-litre petrol engines.

The timing belt synchronises rotation of the crankshaft and camshaft so that the engine’s valves open and close at the correct point in the combustion cycle. Correct belt condition and tension are therefore critical to reliable engine timing.

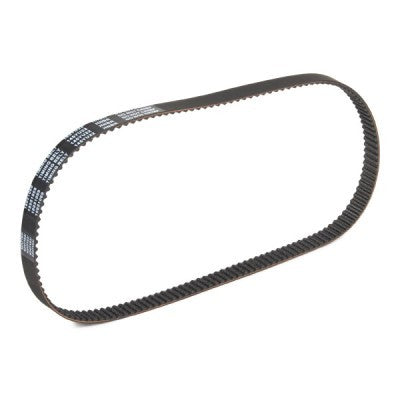

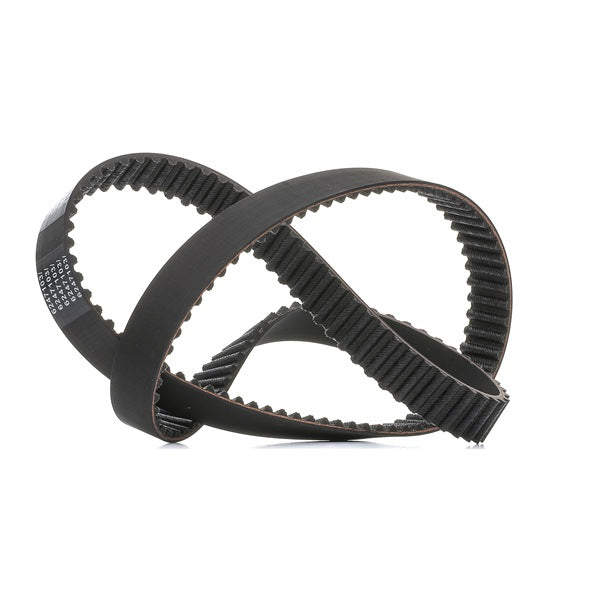

RIDEX PLUS 306T0086P uses an HNBR belt compound with a rounded tooth profile and is manufactured with 145 teeth, 1160 mm overall length and 22 mm width.

• Part type: Camshaft timing belt / cambelt
• Number of teeth: 145
• Length: 1160 mm
• Width: 22 mm

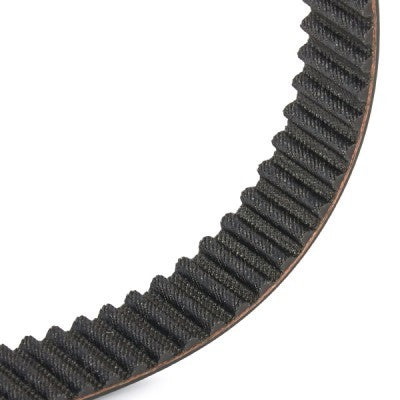

• Tooth profile: Rounded
• Belt material: HNBR – hydrogenated nitrile butadiene rubber
• EAN: 4066423602203
• Quantity supplied: 1 timing belt
• Brand: RIDEX PLUS
• Part No.: 306T0086P

Fitment advice: MazSpec confirms this timing belt for Mazda MX-5 Mk1/NA and Mk2/NB models with 1.6 and 1.8-litre engines through 2005, including the later NB-FL 1.8 VVT and 1.8i Turbo applications. Compare the original belt specification and relevant OE reference where the engine has been swapped or modified.

Common replacement reasons: Timing belts deteriorate with age, mileage, heat cycling and contamination. Visible cracking, damaged or missing teeth, frayed belt edges, glazing, oil contamination or uncertain service history are reasons to replace the belt.

Related parts to inspect: Timing-belt tensioner pulley, timing-belt guide/idler pulley, water pump, camshaft and crankshaft oil seals, front engine covers and auxiliary drive belts. It is often sensible to replace aged tensioner and guide pulleys while access is available.

Useful tools / consumables: Socket and spanner set, torque wrench, crankshaft pulley tools, suitable engine-timing references, pulley holding tools where required and replacement coolant if the water pump is changed at the same time.

Difficulty guide: DIY Difficulty: Advanced. Timing-belt replacement requires correct alignment of the crankshaft and camshaft timing marks, correct belt routing and correct tensioning before the engine is rotated or started.

Why RIDEX PLUS? RIDEX PLUS is the enhanced RIDEX product range. This timing belt uses an HNBR construction and application-specific tooth count, length and width to provide a durable replacement for the original camshaft drive belt.

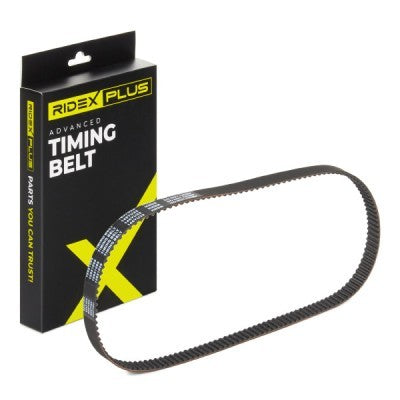

What’s in the box: One RIDEX PLUS 306T0086P camshaft timing belt. Tensioner pulley, guide pulley, water pump, seals and installation tools are not included.

Installation notes: Follow the applicable Mazda engine-timing procedure before removing the original belt. Position the engine at the specified timing reference point and verify all crankshaft and camshaft timing marks. Inspect the tensioner, guide pulley, water pump and oil-seal areas for wear or leakage. Install the replacement belt in the correct direction and routing, apply the specified tensioning procedure and rotate the engine manually through the required number of revolutions before rechecking all timing marks. Do not start the engine until correct valve timing and belt tension have been confirmed.
