EBC Yellowstuff & Premium OE 252mm Rear Brake Kit • PD03KR422

Fits Mazda MX-5 Mk1 / NA 1.8 models from 1994-1998 and MX-5 Mk2 / Mk2.5 NB 1.6 & 1.8 non-Sport models from 1998-2005 using the standard 252mm solid rear brake discs with Akebono rear calipers. Not suitable for NB Sport / larger brake-package applications using the larger rear disc setup.

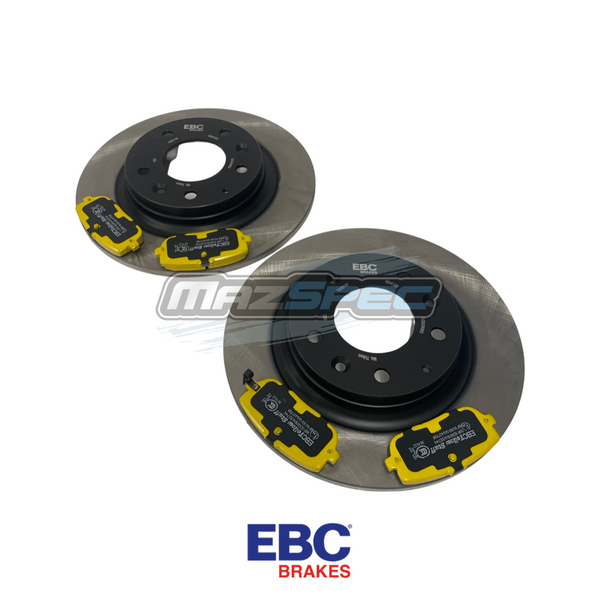

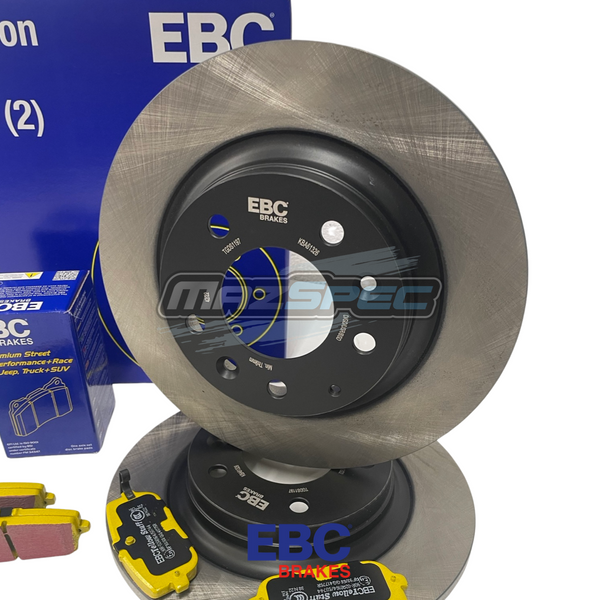

The EBC PD03KR422 rear brake kit combines a complete axle set of EBC Yellowstuff performance brake pads with a matched pair of EBC Premium OE Replacement plain rear brake discs. It provides a complete direct-fit rear braking package for compatible Mazda MX-5 NA and NB models using the standard-size rear brake arrangement.

The kit consists of EBC DP41003R Yellowstuff rear brake pads and EBC D639 Premium OE Replacement rear brake discs. It is particularly suited to MX-5 owners looking for increased fast-road braking capability while retaining a conventional plain OE-style rear disc.

Product Specifications:

• Manufacturer: EBC Brakes
• EBC Kit Range: PD03
• Kit Part Number: PD03KR422
• Installation Position: Rear Axle
• Brake Pad Range: Yellowstuff
• Brake Pad Part Number: DP41003R
• Brake Pad Dimensions: 104 x 43 x 13mm
• Brake Pad Approval: ECE R90 Approved
• Brake Pad Quantity: 4 pads / one complete rear axle set
• Brake Disc Range: EBC Premium OE Replacement
• Brake Disc Part Number: D639
• Brake Disc Quantity: 2 discs / one complete rear axle pair
• Disc Type: Solid
• Disc Design: Plain OE-style replacement
• Disc Diameter: 252mm
• New Disc Thickness: 9mm
• Minimum Disc Thickness: 8mm
• Overall Disc Height: 34mm
• Centre Bore: 55mm
• PCD: 4 x 100mm
• Wheel Holes: 4
• Rear Brake System: Akebono
• Quantity Required Per Vehicle: 1 kit

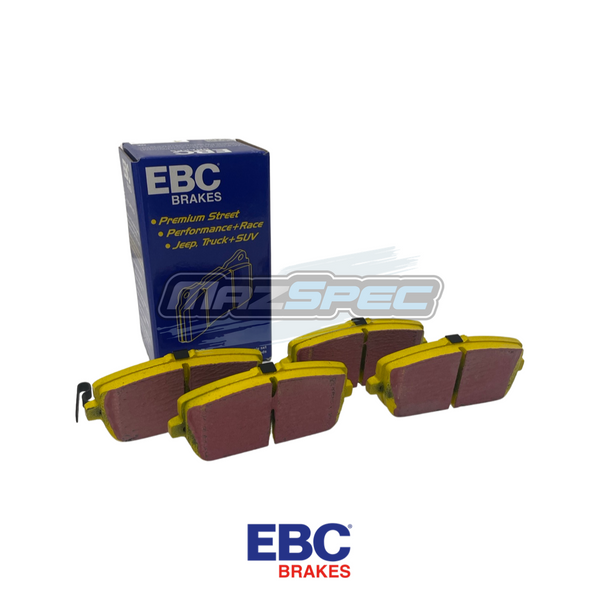

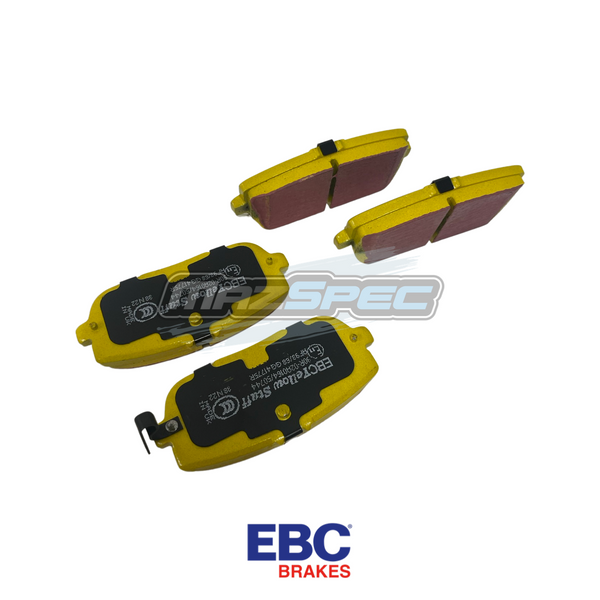

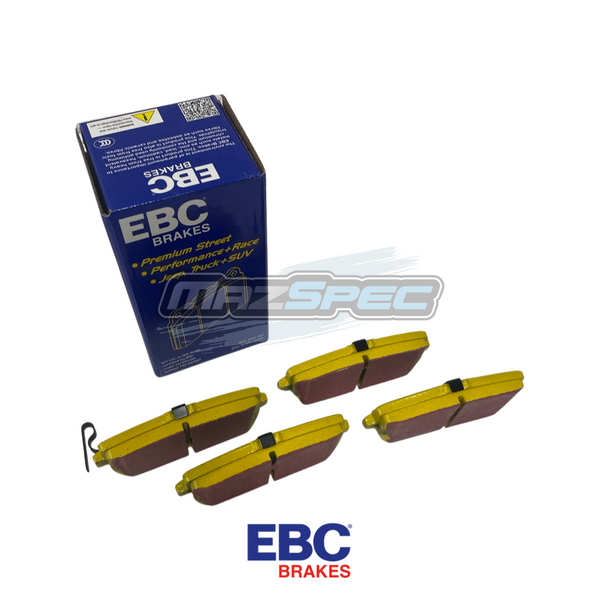

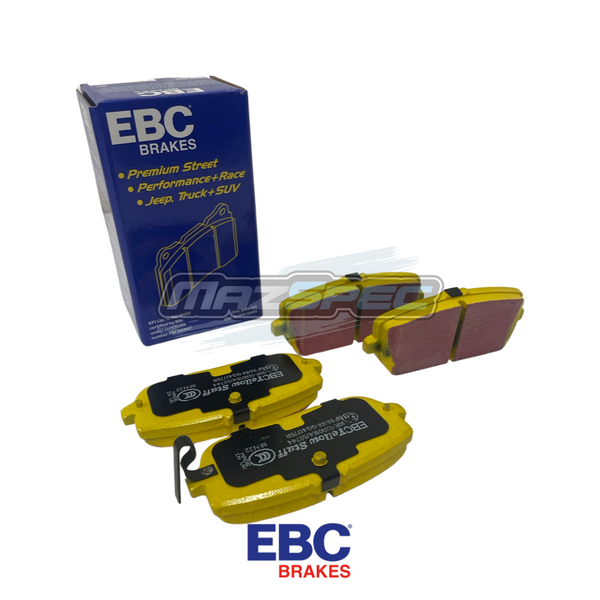

Yellowstuff Brake Pads

EBC Yellowstuff is a high-friction performance brake pad developed primarily for fast-road use. It provides strong braking performance from cold together with increased resistance to repeated heavy braking, making it particularly well suited to enthusiast-driven MX-5s where greater braking capability is required than from a conventional everyday replacement pad.

The DP41003R pads use EBC's Brake-In™ surface coating to assist initial bedding and feature a fully shimmed, slotted and chamfered construction. Yellowstuff is ECE R90 approved for road use.

EBC currently positions Yellowstuff primarily as a fast-street / fast-road compound rather than its preferred dedicated track pad. For MX-5s intended for sustained circuit use, EBC recommends moving to Bluestuff or one of its dedicated motorsport compounds.

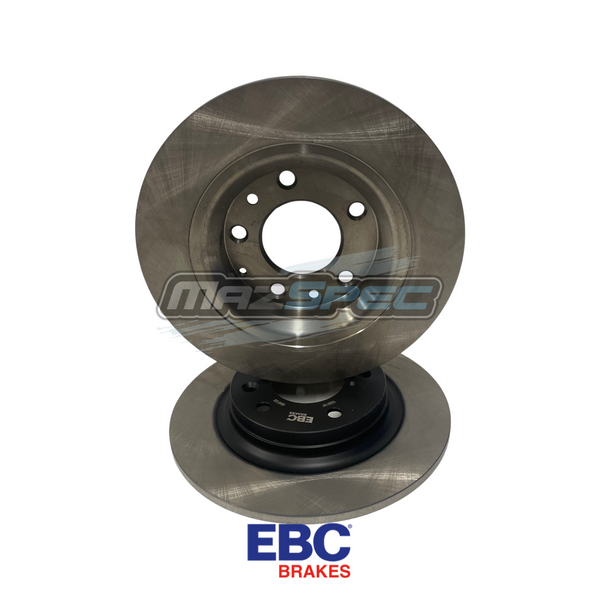

EBC Premium OE Replacement Brake Discs

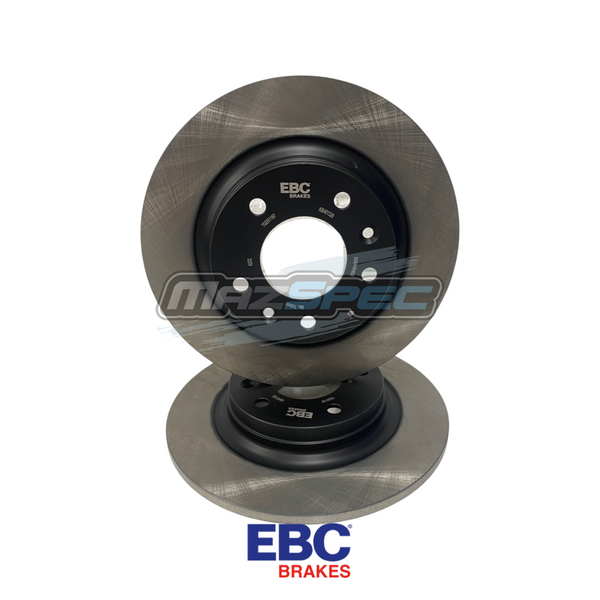

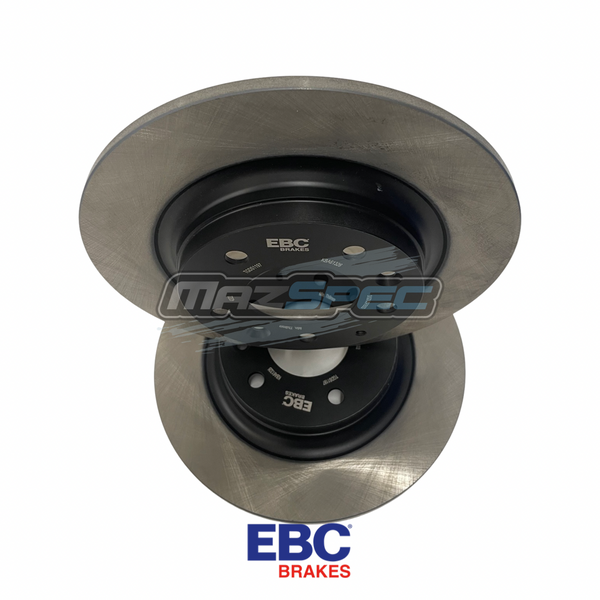

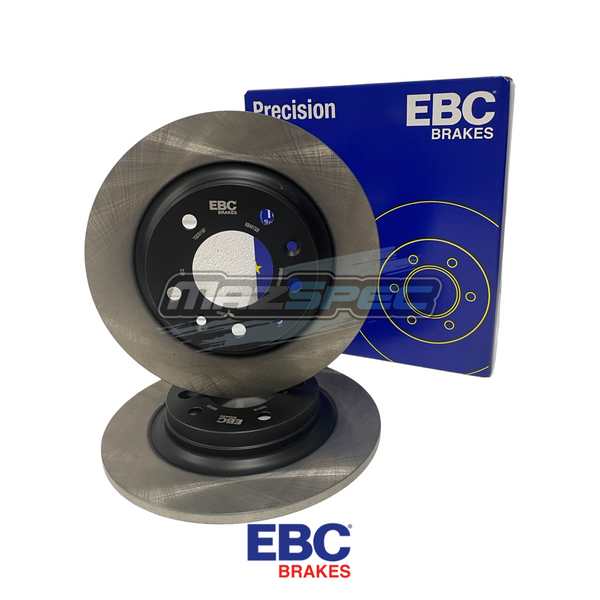

The matching D639 discs are EBC Premium plain brake discs designed as direct replacements for the original rear discs used with the applicable MX-5 braking system. They retain the standard 252mm diameter, solid construction and 4 x 100mm mounting arrangement.

EBC Premium replacement rotors use G3000 specification cast iron and current production is progressively supplied with EBC's Gen 3 Silver Grey corrosion-resistant finish. The plain braking surface makes this kit a useful option for customers wanting the increased friction characteristics of Yellowstuff pads without moving to a grooved, slotted or dimpled rear disc.

Typical Reasons for Replacement or Upgrade:

• Existing rear brake discs have reached or are approaching their minimum thickness
• Rear discs are heavily corroded, scored or suffering from excessive runout
• Rear brake pads are worn or approaching their service limit
• Upgrading from standard road-focused pads for more demanding fast-road driving
• Replacing rear pads and discs together as a matched EBC package
• Refreshing an ageing MX-5 NA or NB rear braking system

Fitment Advice:

This kit is specifically for the 252mm solid rear disc and Akebono rear caliper arrangement used on the applications listed.

On MX-5 Mk2 / Mk2.5 NB models, this kit is intended for the standard / non-Sport brake package. Sport and other larger-brake applications use a different rear disc and require a different EBC kit.

For imported, modified or previously repaired cars, matching the part number or component style on the part being replaced is recommended.

Rear brake discs should be installed onto thoroughly cleaned and corrosion-free hub faces. Care should be taken when servicing the rear calipers because the mechanical handbrake mechanism is incorporated into the rear caliper assembly. All fasteners should be tightened to the appropriate Mazda torque specifications.

New pads and discs should be progressively bedded in according to EBC's current bedding procedure before sustained heavy braking.

Other Items to Consider:

• Matching EBC front brake pads and discs
• Fresh performance brake fluid
• Braided brake hoses where appropriate
• Rear brake fitting hardware where worn or corroded
• Brake cleaner
• Suitable high-temperature brake lubricant for approved contact points

Useful Tools:

• Torque wrench
• Suitable rear brake piston wind-back tool
• Brake cleaner
• Wire brush or hub-cleaning tool
• Dial indicator where checking brake disc runout

Difficulty Guide: Intermediate. Rear brake replacement requires safe vehicle lifting, correct hub preparation and correct servicing of the rear caliper and handbrake mechanism. Professional installation is recommended where the installer is not experienced with braking systems.

Why EBC?

EBC Brakes is a long-established British braking specialist producing replacement, performance and motorsport brake components. The PD03 range combines EBC Yellowstuff fast-road performance pads with Premium OE-style replacement discs, providing a convenient matched package for drivers looking for increased braking capability while retaining a conventional direct-fit disc design.

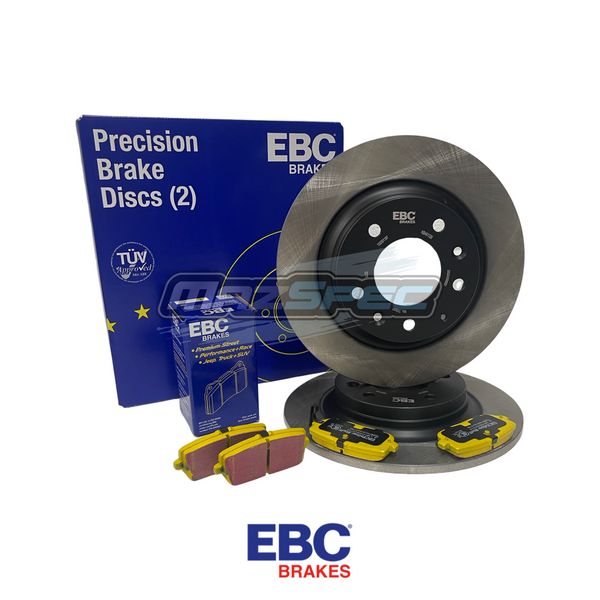

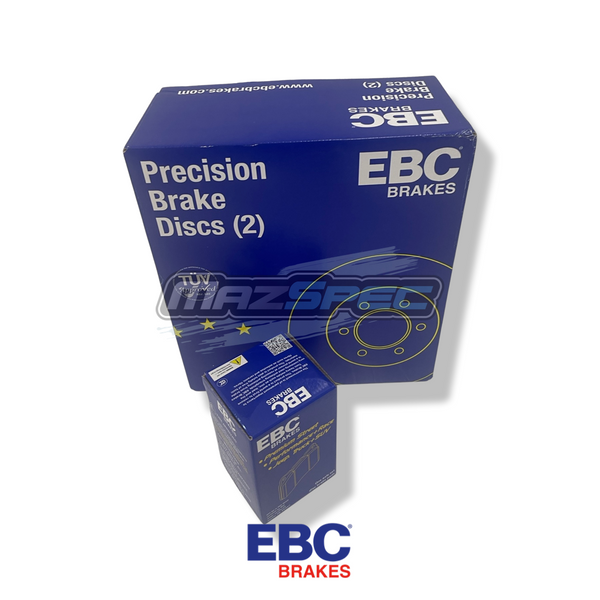

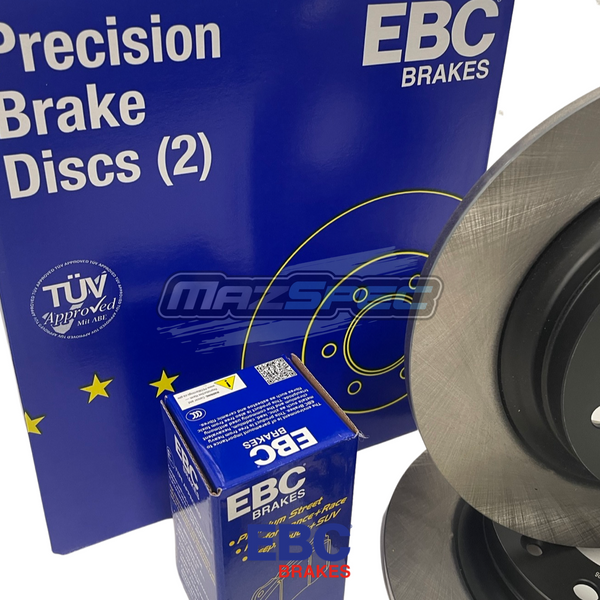

What's in the Box?

• 2 x EBC D639 Premium OE Replacement 252mm solid rear brake discs
• 1 x EBC DP41003R Yellowstuff rear brake pad set – 4 pads
• Complete brake pad and disc package for one rear axle
