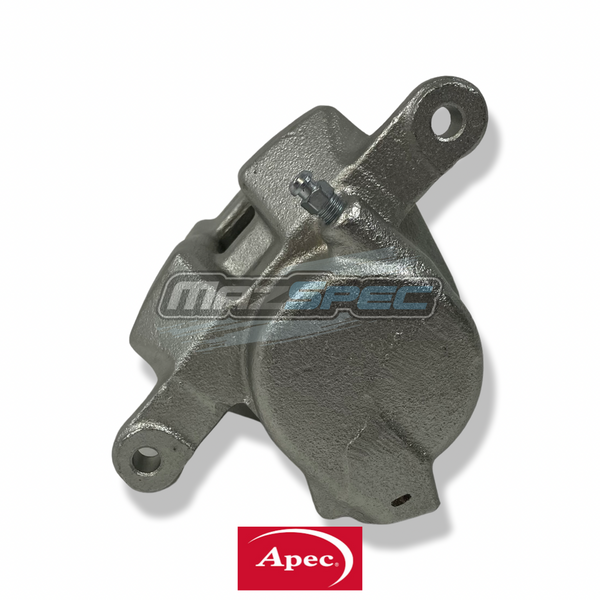

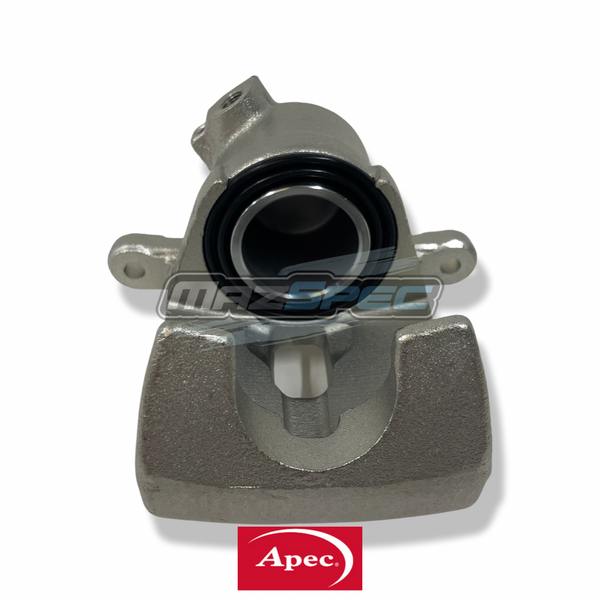

Apec RCA466N Front Right Brake Caliper
Apec front right brake caliper for Mazda MX-5 Mk3 / NC 1.8 and 2.0 2005–2014 applications listed in the compatibility table.
This is a new replacement front brake caliper for the right-hand / offside of the vehicle. It forms part of the MX-5 NC front braking system and operates the front brake pads against the vented brake disc when hydraulic pressure is applied.
RCA466N cross-references to Mazda OE caliper number NFZ7-33-98Z / NFZ73398Z. Published specification data identifies this as a Sumitomo-type floating single-piston caliper with a 54 mm piston for the 22 mm front disc specification.
- Product type: Front brake caliper
- Brand: Apec
- Apec part number: RCA466N
- Fitting position: Front axle, right-hand / offside
- Quantity supplied: 1 caliper
- Brake system: Sumitomo
- Caliper type: Floating, single piston
- Piston diameter: 54 mm
- Compatible disc type: Vented
- Compatible disc thickness: 22 mm
- Mazda OE reference: NFZ7-33-98Z / NFZ73398Z
Fitment advice: This is the right-hand front caliper; the left-hand front caliper is a different component. For imported, modified or previously repaired cars, matching the vehicle generation, chassis code and relevant component specification before ordering is recommended.
Other items to consider: Check the condition of the front brake pads, discs, flexible brake hose, slider hardware and brake fluid while replacing the caliper. Pads and discs should normally be assessed as an axle pair to maintain balanced braking performance.
Useful tools / consumables: Brake fluid, brake cleaner, suitable brake lubricant, flare-nut spanners, caliper tools, torque wrench and suitable equipment for bleeding the hydraulic braking system.
Difficulty guide: Intermediate. Replacement requires safe vehicle lifting, disconnection of the hydraulic brake hose, correct installation of the caliper and full bleeding of the affected brake circuit. Braking-system work should only be undertaken by a competent person.
Why Apec? Apec is an established UK automotive aftermarket brand specialising in braking and other OE-replacement vehicle components. RCA466N provides a new replacement option for the original Mazda front caliper application without using a reconditioned exchange unit.
What's in the box: 1 x Apec RCA466N front right brake caliper.
Installation notes: Brake fluid will be lost when the hose is disconnected. Prevent the reservoir from running dry, bleed the braking system thoroughly after installation and check carefully for leaks before the vehicle is returned to service.
| Make | Model | Sub Variant | Chassis / Code | Years | Power (PS) | Engine Codes | Fuel | Transmission | Notes |
|---|---|---|---|---|---|---|---|---|---|
| Mazda | MX-5 Mk3 / NC | 1.8 | NC / NC18 | 2005–2014 | 126 | L828 / L831 / L8-DE / L8-VE | Petrol | Manual | Front axle right |
| Mazda | MX-5 Mk3 / NC | 2.0 | NC / NC18 | 2005–2014 | 160 | LFG7 / LFG8 / LFY7 / LFZD / LF-VE | Petrol | Manual / Automatic | Front axle right |
| Reference Type | Reference |
|---|---|
| Apec Product Reference | RCA466N |
| Previous / Related Apec Reference | RCA466 |
| Mazda OE Reference | NFZ7-33-98Z |
| Mazda OE Reference | NFZ73398Z |
| Matching Left-Hand Apec Caliper | LCA466N |
| Vehicle Application | Mazda MX-5 Mk3 / NC |
