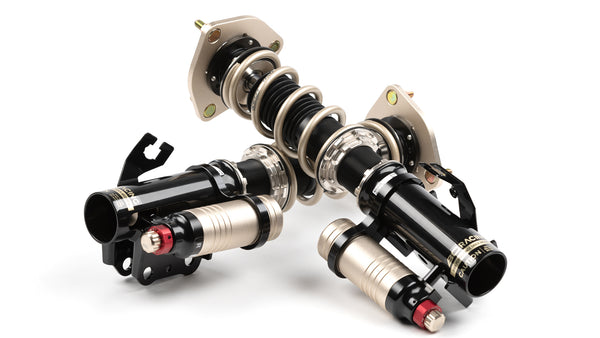

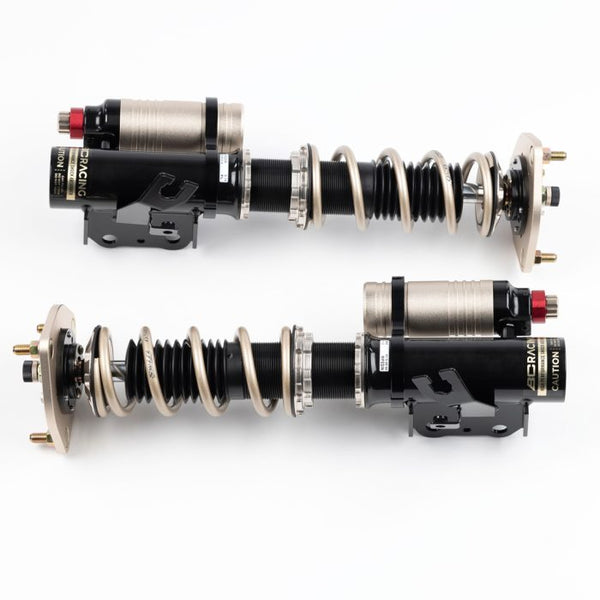

BC Racing ZX Series 3-Way Coilover Kit – Mazda MX-5 Mk3 NC 2006–2015 • N-11-ZX

BC Racing N-11-ZX ZX Series 3-Way Coilover Kit

BC Racing ZX Series coilover kit for Mazda MX-5 Mk3 / Mk3.5 / Mk3.75 NC / NCEC 2006–2015 applications listed in the compatibility table.

The ZX Series is BC Racing's track and competition-focused three-way adjustable suspension range, providing independent control of low-speed compression, high-speed compression and rebound damping for extensive suspension setup flexibility.

The ZX system uses an upright monotube damper design with a digressive piston and damping curve, dual-piston construction and external reservoirs. This provides substantially greater suspension tuning capability than a conventional single or two-way adjustable coilover and makes the ZX Series particularly suited to demanding track-day and motorsport applications.

Low-speed compression provides 20 adjustment positions, high-speed compression provides 12 adjustment positions and rebound provides 30 adjustment positions. The external reservoirs increase available damper fluid capacity, while the high-viscosity-index racing damper fluid is designed to help maintain consistent damping characteristics during sustained demanding use.

This UK-market N-11-ZX configuration uses 6 kg/mm front and 4 kg/mm rear springs.

• Product type: Complete 3-way adjustable coilover suspension kit
• Series: ZX Series
• Primary use: Track, competition and motorsport
• Location / system: Front and rear suspension
• Brand: BC Racing
• Product reference / part number: N-11-ZX
• Vehicle application: Mazda MX-5 / Miata NC / NCEC 2006–2015
• Engine applications: 1.8 and 2.0 petrol
• Damper design: Upright monotube
• Valving: Digressive piston and damping curve
• Dual-piston design: Yes
• External reservoirs: Yes
• Front spring rate: 6 kg/mm
• Rear spring rate: 4 kg/mm
• Damping adjustment: Independent 3-way adjustment
• Low-speed compression adjustment: 20 clicks
• High-speed compression adjustment: 12 clicks
• Rebound adjustment: 30 clicks
• Ride height adjustment: Adjustable
• Camber plate note: Camber plates are not listed for this application
• Quantity supplied: Complete four-corner coilover suspension kit

Fitment advice: Designed for Mazda MX-5 Mk3, Mk3.5 and Mk3.75 NC / NCEC applications from 2006–2015, including the applicable 1.8 and 2.0 petrol models listed in the compatibility table. For imported, modified or previously repaired cars, matching the vehicle generation, chassis code, suspension layout and kit reference is recommended before ordering.

Other items to consider: When fitting or setting up this product, you may also want to consider purchasing replacement suspension fasteners, anti-roll bar links, suspension bushes and any worn suspension arms or ball joints. For a track-focused installation, professional four-wheel alignment and corner-weighting should also be considered once the final ride height has been established.

Useful tools / consumables: Suitable vehicle lifting equipment and axle stands, socket and spanner set, torque wrench, penetrating fluid, anti-seize compound and the appropriate BC Racing coilover adjustment tools. Professional wheel-alignment and suspension setup equipment will be required for final geometry and damper setup.

Difficulty guide: DIY Difficulty: Advanced. Installation involves replacement of the complete front and rear suspension assemblies, positioning and securing the external reservoirs and subsequent ride-height, geometry and three-way damper setup. Professional installation and setup are recommended for a suspension system of this type.

Why BC Racing? BC Racing ZX Series suspension is designed for demanding track and competition use where a high degree of suspension control is required. Independent low-speed compression, high-speed compression and rebound adjustment, combined with digressive valving, upright monotube dampers and external reservoirs, provides extensive scope for tailoring the suspension to different circuits, tyres, driving styles and vehicle setups.

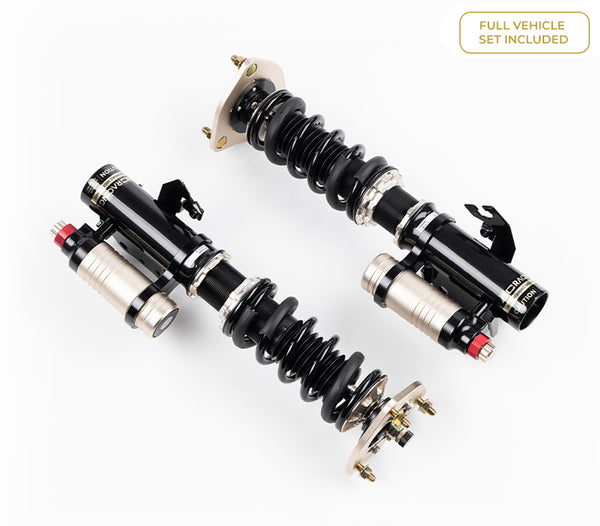

What’s in the box: Complete four-corner BC Racing ZX Series coilover suspension kit with front and rear dampers, 6 kg/mm front springs, 4 kg/mm rear springs, external reservoir assemblies, applicable upper mounting components, adjustment hardware and associated components supplied with the N-11-ZX kit.

Installation / setup notes: The external reservoirs must be positioned and secured correctly during installation. Ride height and damping should be set methodically, starting from a known baseline and making controlled adjustments. Once the required ride height has been established, all suspension mounting hardware should be tightened to the appropriate specification and a full four-wheel geometry alignment carried out before final suspension tuning.
