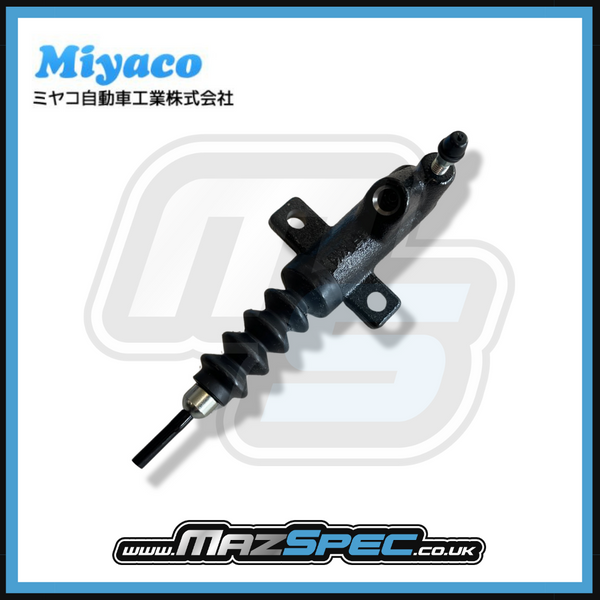

Miyaco CC-M242 clutch release / slave cylinder for Mazda MX-5 Mk3 / NC, Mk3.5 / NC2 and Mk3.75 / NC3 manual-transmission models from 2005–2015.
The clutch slave cylinder is mounted externally to the gearbox and converts hydraulic pressure from the clutch master cylinder into movement of the clutch release mechanism. Miyaco CC-M242 is a complete replacement cylinder corresponding to Mazda OE reference NE55-41-92XA and the earlier NE55-41-92X.
The published cylinder bore is 3/4 inch. One clutch slave cylinder is required per vehicle.
Application / fitment advice:
- Mazda MX-5 Mk3 / NC, Mk3.5 / NC2 and Mk3.75 / NC3.
- Suitable for confirmed 1.8 and 2.0 manual-transmission applications.
- 5-speed and 6-speed manual applications where listed.
- Not applicable to automatic-transmission vehicles.
- Replaces Mazda OE references NE55-41-92XA and NE55-41-92X.
Part location:
The slave / release cylinder is mounted externally to the transmission and acts on the clutch release mechanism when hydraulic pressure is supplied from the clutch master cylinder.
Installation / service notes:
- Protect surrounding painted surfaces from hydraulic fluid during removal and installation.
- Clean around the hydraulic connection before disconnecting the original cylinder to minimise contamination entering the system.
- Inspect the flexible clutch hose, hydraulic pipework and clutch master cylinder for deterioration or leakage while the system is open.
- After installation, refill with the vehicle-specified hydraulic fluid and thoroughly bleed the clutch hydraulic circuit.
- Confirm correct clutch pedal return and disengagement and check all hydraulic connections for leaks before road use.
Other items to consider:
- Clutch master cylinder
- Flexible clutch hydraulic hose
- Fresh hydraulic fluid
- Hydraulic pipe fittings where corroded or damaged
Why Miyaco?
Miyaco specialises in automotive brake and hydraulic service components and supplies replacement master cylinders, release cylinders and related hydraulic components for Japanese vehicle applications.
| Make | Model | Sub Variant | Chassis / Code | Years | Power (PS) | Engine Codes | Fuel | Transmission | Notes |
|---|---|---|---|---|---|---|---|---|---|
| Mazda | MX-5 | Mk3 / NC1 – 1.8 | NC18 / NC | 2005–2009 | 126 | L8-VE | Petrol | 5-Speed Manual | Gearbox-mounted clutch release slave cylinder |
| Mazda | MX-5 | Mk3 / NC1 – 2.0 | NC18 / NCEC | 2005–2009 | 160 | LF-VE | Petrol | 5-Speed / 6-Speed Manual | Gearbox-mounted clutch release slave cylinder |
| Mazda | MX-5 | Mk3.5 / NC2 – 1.8 | NC18 / NC | 2009–2012 | 126 | L8-VE | Petrol | 5-Speed Manual | Gearbox-mounted clutch release slave cylinder |
| Mazda | MX-5 | Mk3.5 / NC2 – 2.0 | NC18 / NCEC | 2009–2012 | 160 | LF-VE | Petrol | 5-Speed / 6-Speed Manual | Gearbox-mounted clutch release slave cylinder |
| Mazda | MX-5 | Mk3.75 / NC3 – 1.8 | NC18 / NC | 2012–2015 | 126 | L8-VE | Petrol | 5-Speed Manual | Gearbox-mounted clutch release slave cylinder |
| Mazda | MX-5 | Mk3.75 / NC3 – 2.0 | NC18 / NCEC | 2012–2015 | 160 | LF-VE | Petrol | 5-Speed / 6-Speed Manual | Gearbox-mounted clutch release slave cylinder |
| Reference Type | Manufacturer | Reference | Notes |
|---|---|---|---|
| Product Reference | Miyaco | CC-M242 | Clutch release / slave cylinder |
| OE Reference | Mazda | NE55-41-92XA | Current Mazda clutch release cylinder reference |
| Superseded OE | Mazda | NE55-41-92X | Earlier Mazda reference superseded by NE55-41-92XA |
| Bore Size | Miyaco | 3/4 in | Published cylinder bore specification |
| JAN | Miyaco | 4956686179904 | Published product barcode |
