EBC Bluestuff NDX & GD Sport 280mm Rear Brake Kit • PD14KR343

Fits Mazda MX-5 Mk3 / Mk3.5 / Mk3.75 NC 1.8 and 2.0 models from 2005-2015 using the standard 280mm solid rear brake discs and Sumitomo rear calipers.

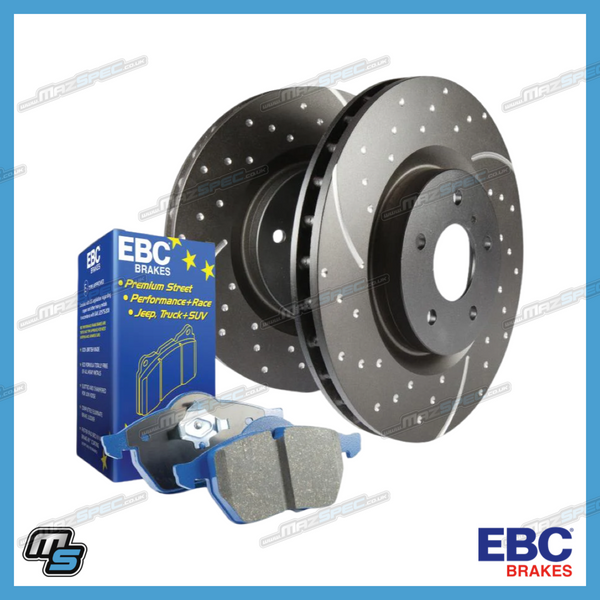

The EBC PD14KR343 rear brake kit combines a complete axle set of EBC Bluestuff NDX performance brake pads with a matched pair of EBC GD Sport dimpled and grooved rear brake discs. It provides a complete direct-fit rear braking package for compatible Mazda MX-5 NC models and is particularly suited to enthusiastic fast-road driving, trackdays and entry-level club-level performance use.

The kit consists of EBC DP51775NDX Bluestuff NDX rear brake pads together with EBC GD1197 GD Sport rear brake discs. EBC application data supports the same 280mm rear brake arrangement across the 1.8 and 2.0-litre MX-5 NC range.

Product Specifications:

• Manufacturer: EBC Brakes
• EBC Kit Range: PD14
• Kit Part Number: PD14KR343
• Installation Position: Rear Axle
• Brake Pad Range: Bluestuff NDX
• Brake Pad Part Number: DP51775NDX
• Brake Pad Dimensions: 99 x 44 x 13.7mm
• Bluestuff NDX Friction Level: Approximately 0.52 Mu
• Brake Pad Quantity: 4 pads / one complete rear axle set
• Brake Disc Range: GD Sport
• Brake Disc Part Number: GD1197
• Brake Disc Quantity: 2 discs / one complete rear axle pair
• Disc Type: Solid
• Disc Design: Dimpled and wide-aperture grooved
• Disc Diameter: 280mm
• New Disc Thickness: 10mm
• Minimum Disc Thickness: 9mm
• Overall Disc Height: 40mm
• Centre Bore: 72mm
• PCD: 5 x 114.3mm
• Wheel Holes: 5
• Rear Caliper Type: Sumitomo
• Quantity Required Per Vehicle: 1 kit

Bluestuff NDX Brake Pads

EBC Bluestuff NDX is a high-friction 0.52 Mu performance compound developed to bridge the gap between serious fast-road and trackday braking. EBC positions Bluestuff NDX for drivers who regularly attend trackdays or entry-level club events while still requiring a pad with useful cold performance for driving to and from the circuit.

The pads are heat scorched during manufacture to assist the bedding process and are designed to provide consistent pedal feel and strong fade resistance under more demanding braking conditions. Bluestuff NDX is R90 approved on most applications; the exact approval applicable to the vehicle should be checked where road-use certification is required.

EBC GD Sport Brake Discs

The matching GD1197 rear discs use EBC's GD Sport wide-aperture groove and blind-dimple pattern. The grooves help clear water, brake dust, gases and debris from the pad contact area while promoting more consistent pad contact during repeated braking.

The dimples provide a degassing effect without passing completely through the disc. They should therefore not be confused with conventional fully cross-drilled brake discs.

The GD1197 retains the original 280mm diameter, 10mm thickness and 5 x 114.3mm mounting arrangement used by the compatible MX-5 NC rear braking system, making it a direct-fit performance replacement without requiring a brake conversion.

Typical Reasons for Replacement or Upgrade:

• Existing rear brake discs have reached or are approaching their minimum thickness
• Brake discs are heavily corroded, scored or suffering from excessive runout
• Rear brake pads are worn or approaching their service limit
• Upgrading from standard road-focused brake components for more demanding driving
• Preparing an MX-5 for fast-road or occasional trackday use
• Replacing pads and discs together with a matched EBC performance package

Fitment Advice:

This kit is for the 280mm solid rear disc and Sumitomo rear caliper arrangement used on compatible MX-5 Mk3 / NC models. EBC application data supports both 1.8 and 2.0-litre NC applications.

For imported, modified or previously repaired cars, matching the part number or component style on the part being replaced is recommended.

Rear brake discs should be installed onto clean, corrosion-free hub faces. Particular care should be taken when servicing the rear calipers because the MX-5 rear braking system incorporates the handbrake mechanism into the caliper assembly. All fasteners should be tightened to the appropriate Mazda torque specification.

New pads and discs should be bedded progressively in accordance with EBC's current bedding-in procedure before sustained heavy braking or circuit use.

Other Items to Consider:

• Matching EBC front brake pads and discs
• Fresh high-performance brake fluid
• Braided brake hoses for performance applications
• Rear brake fitting hardware where worn or corroded
• Brake cleaner
• Suitable high-temperature brake lubricant for approved contact points

Useful Tools:

• Torque wrench
• Suitable rear brake piston wind-back tool
• Brake cleaner
• Wire brush or hub-cleaning tool
• Dial indicator where checking disc runout

Difficulty Guide: Intermediate. Rear brake replacement requires safe vehicle lifting, correct preparation of the hub and caliper components and proper adjustment of the rear brake / handbrake mechanism. Professional installation is recommended if you are not experienced with brake-system servicing.

Why EBC?

EBC Brakes is a long-established British braking specialist producing replacement, performance and motorsport brake components. The PD14 range combines Bluestuff NDX performance pads with matching GD Sport discs to provide a convenient direct-fit package for drivers requiring greater fast-road and trackday capability than a conventional everyday replacement brake setup.

What's in the Box?

• 2 x EBC GD1197 GD Sport 280mm solid rear brake discs
• 1 x EBC DP51775NDX Bluestuff NDX rear brake pad set – 4 pads
• Complete pad and disc package for one rear axle
