Genuine Mazda Cylinder Block Coolant Bypass Tube / Water Pipe • L309-15-271

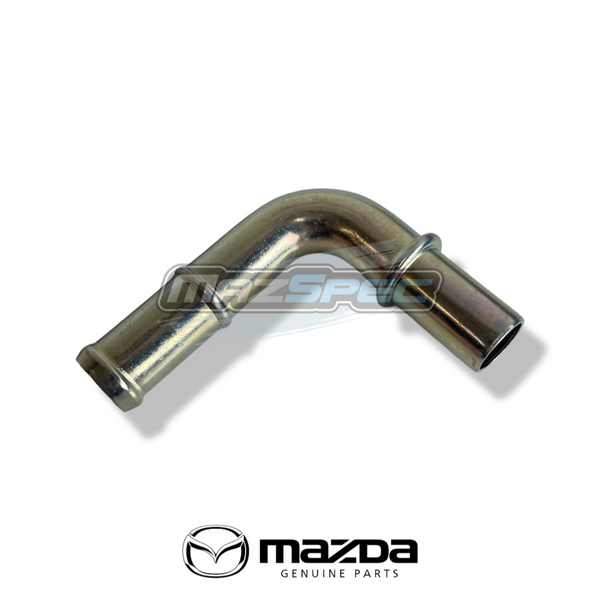

Genuine Mazda L309-15-271 Cylinder Block Coolant Bypass Tube / Water Pipe

Replacement Genuine Mazda cylinder-block coolant bypass tube for Mazda MX-5 Mk3, Mk3.5 and Mk3.75 NC models with 1.8 L8-VE or 2.0 LF-VE MZR petrol engines.

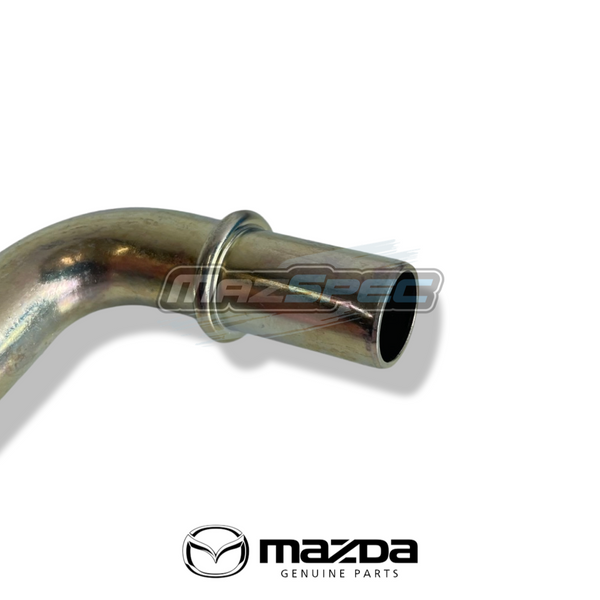

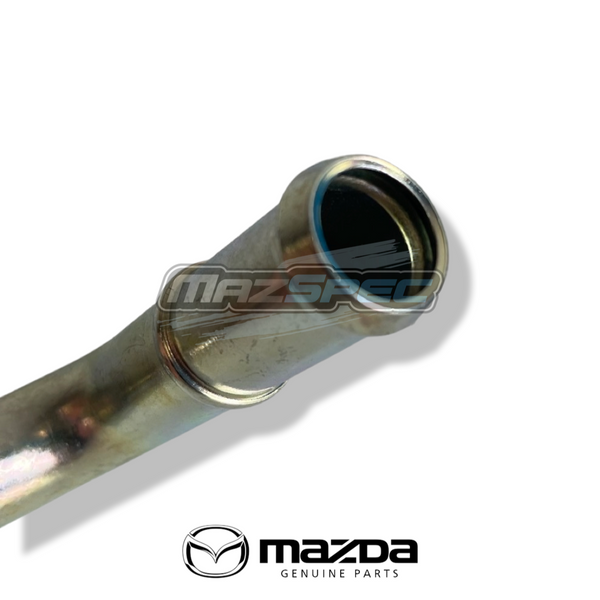

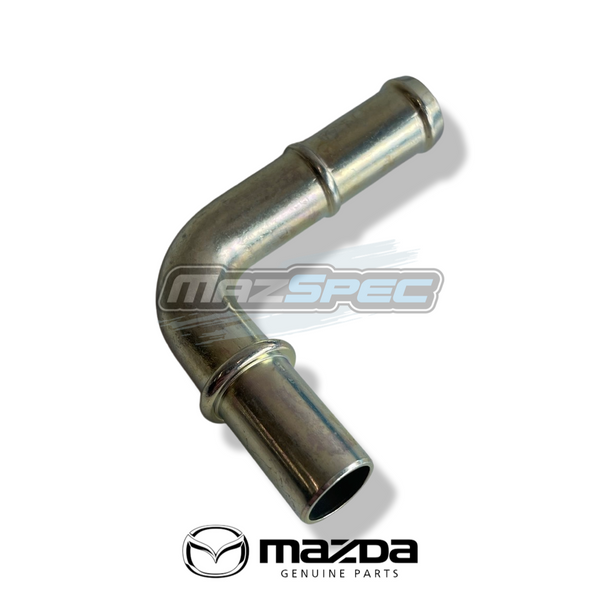

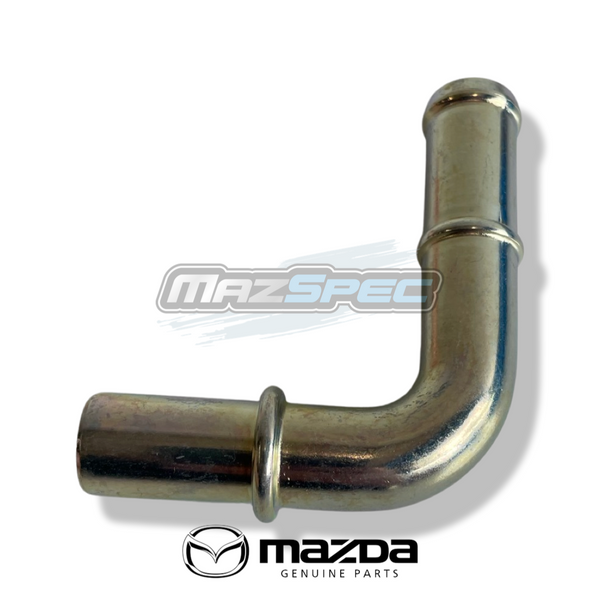

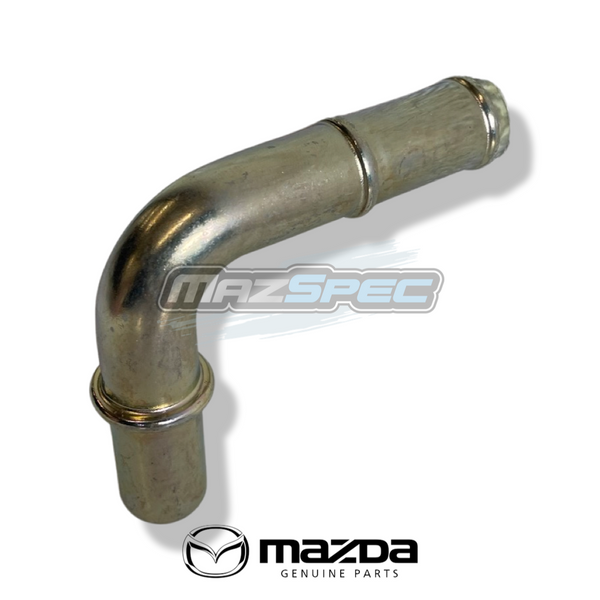

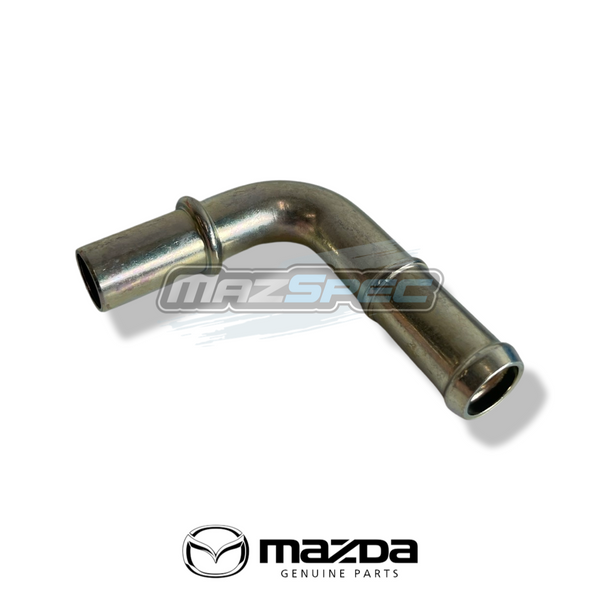

This short metal tube is pressed into the cylinder block and forms the connection between the block’s internal coolant passage and the external coolant bypass pipe or hose assembly.

The bypass circuit allows coolant to circulate through the engine while the thermostat is closed and continues to form part of the cooling-system flow path during normal operation. A secure and corrosion-free tube is therefore essential for retaining coolant and maintaining reliable circulation.

The original tube may require replacement if it has corroded, become loose in the cylinder block, been bent during hose removal or been damaged during an engine rebuild. Coolant staining or seepage around the point where the tube enters the block can indicate a sealing or corrosion problem.

One coolant bypass tube is fitted per engine, and this listing supplies one Genuine Mazda tube. It is a press-fit component and must be installed squarely into a clean, undamaged cylinder-block bore.

• Part type: Cylinder-block coolant bypass tube
• Common names: Water bypass pipe / block coolant tube / bypass spigot
• Mazda catalogue description: Pipe, Water By-Pass

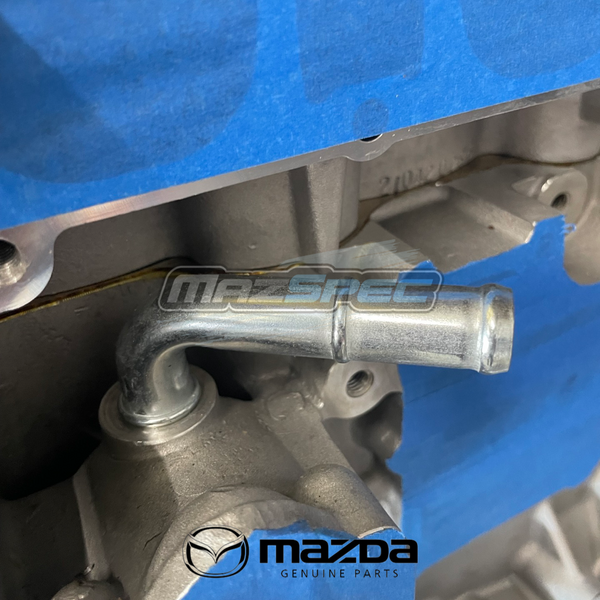

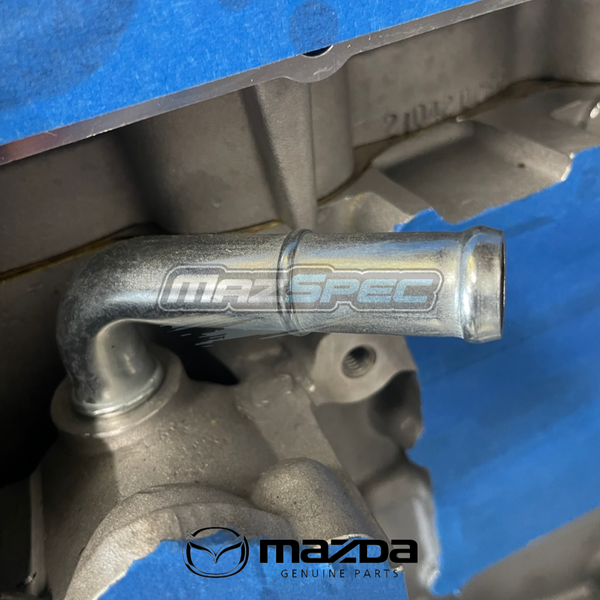

• Location: Pressed into the engine cylinder block
• Function: Connects the cylinder-block coolant passage to the external bypass pipework
• Installation type: Press fit
• Quantity fitted per engine: 1
• Quantity supplied: 1 tube
• Coolant hose included: No
• External bypass pipe included: No
• Hose clamp included: No
• Coolant included: No
• Brand: Genuine Mazda
• Part No.: L309-15-271
• MX-5 fitment: Mk3, Mk3.5 and Mk3.75 NC 1.8 and 2.0 models

Typical reasons for replacement:

• Visible corrosion on the original coolant tube
• Coolant seepage where the tube enters the cylinder block
• Tube bent or distorted during hose or pipe removal
• Loose fit within the cylinder-block bore
• Damage during engine dismantling
• Cylinder-block replacement or engine rebuild
• Restricted coolant passage caused by corrosion or deposits

Fitment advice: This tube is used with the original cooling-system and cylinder-block arrangement fitted to Mazda MX-5 NC 1.8 L8 and 2.0 LF MZR engines. Confirm compatibility where an alternative engine block, engine conversion or modified coolant system has been installed.

Other items to consider: Inspect the attached coolant bypass pipe or hose, hose clamps, thermostat housing, nearby coolant seals and the cylinder-block bore. Consider purchasing replacement hoses and clamps where the originals are hardened, swollen or corroded.

Useful tools / consumables: Suitable tube-removal and installation tooling, correctly sized support sleeve, soft-faced hammer or press, cooling-system drain container, hose-clamp pliers, cleaning brushes, lint-free cloths and the correct Mazda-compatible coolant.

Difficulty guide: DIY Difficulty: Advanced. Access varies with the engine’s state of assembly. The original press-fit tube must be removed without scoring or enlarging the cylinder-block bore, and the replacement must be installed squarely to the correct depth.

Why Genuine Mazda? Genuine Mazda coolant bypass tubes are manufactured to match the original tube diameter, insertion depth, hose connection and cylinder-block interference fit. Correct dimensions help provide secure pipe attachment and reliable coolant sealing.

What’s in the box: One Genuine Mazda cylinder-block coolant bypass tube, part number L309-15-271.

Installation notes: Allow the engine to cool fully and drain the cooling system before disconnecting the attached bypass pipework. Remove the original tube using a controlled method that does not damage the cylinder block. Clean and inspect the block bore for corrosion, scoring or distortion. Install the replacement tube squarely using tooling that supports the tube without crushing or bending it, and press it to the same depth and orientation as the original component. Refit the coolant pipe or hose with serviceable clamps, refill the cooling system with the correct coolant mixture and bleed the system thoroughly. Check carefully for leakage as the engine reaches operating temperature.
