Genuine Mazda Engine Oil Filter – MX-5 Mk4 / ND 1.5 & 2.0 • PE01-14-302B

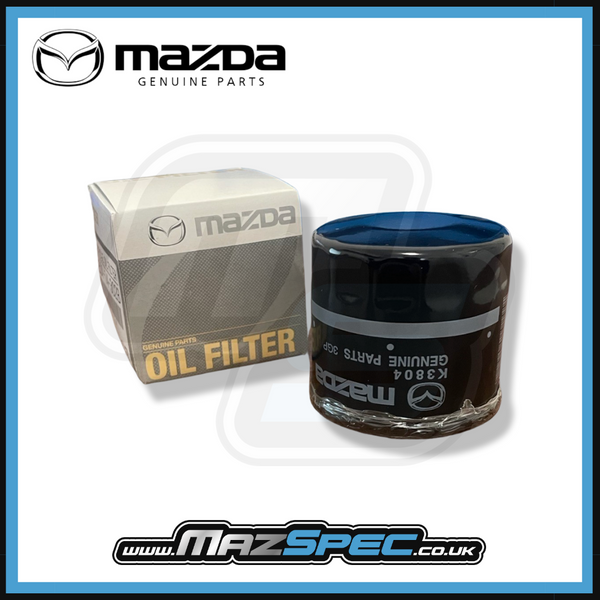

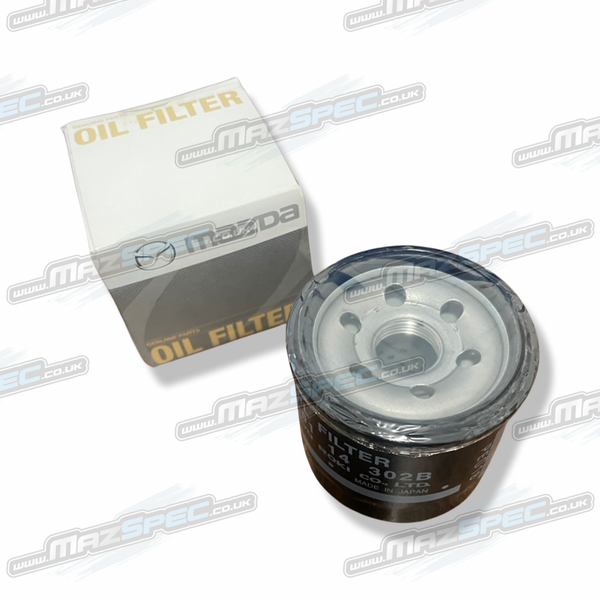

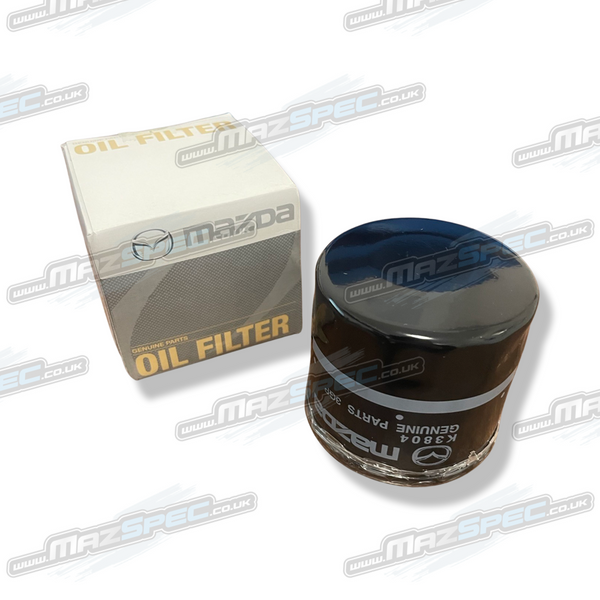

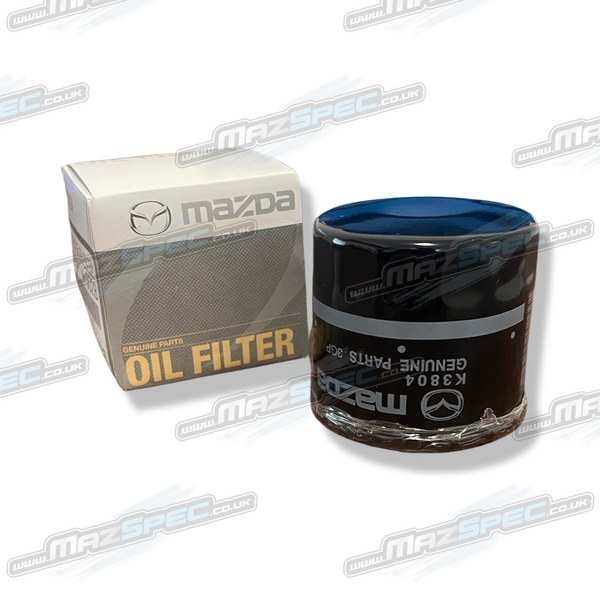

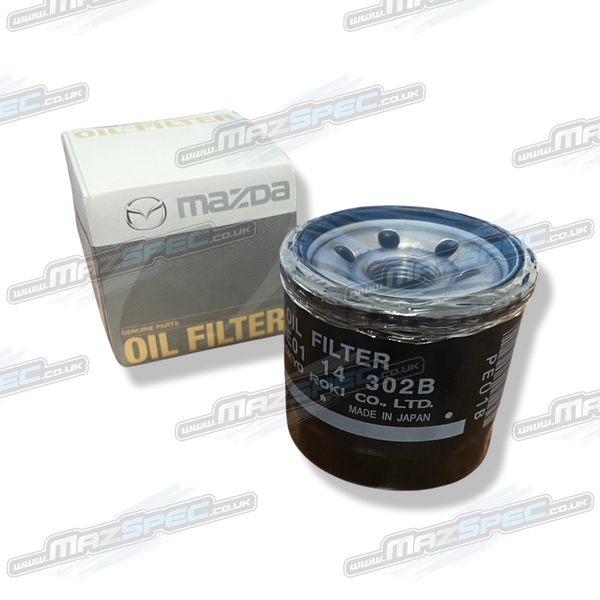

Genuine Mazda PE01-14-302B Engine Oil Filter

Replacement Genuine Mazda spin-on engine oil filter for Mazda MX-5 Mk4 / ND and RF models with applicable 1.5L and 2.0L SKYACTIV-G petrol engines listed in the compatibility table.

The filter removes metallic particles, combustion residue and other contaminants from the circulating engine oil before the lubricant reaches critical internal engine components.

Clean, correctly filtered oil helps protect the crankshaft bearings, connecting-rod bearings, camshafts, timing components and other lubricated surfaces against premature wear.

The oil filter should normally be renewed during every engine-oil service, as the filter media gradually accumulates contamination during normal operation.

This listing supplies one Genuine Mazda spin-on oil filter with an integral sealing ring, which is the quantity required per applicable engine.

• Part type: Engine oil filter
• Mazda catalogue description: Cartridge, oil filter
• Alternative descriptions: Spin-on oil filter / engine lubrication filter
• Mazda diagram position: 14302 / 23802 according to catalogue
• Primary function: Removes contaminants from circulating engine oil
• System: Engine lubrication system
• Fitting position: Engine oil-filter mounting point
• Primary vehicle application: Mazda MX-5 Mk4 / ND and RF
• Engine applications: Applicable 1.5L and 2.0L SKYACTIV-G petrol engines
• Transmission applications: Manual and automatic according to vehicle specification
• Filter type: Spin-on metal-canister filter
• Thread specification: M20 × 1.5
• Approximate filter diameter: 65–68 mm
• Approximate filter height: 64–67 mm
• Integral sealing ring: Yes
• Quantity required per engine: One
• Quantity supplied: One oil filter
• Brand: Genuine Mazda
• Part No.: PE01-14-302B
• Also referenced as: PE0114302B
• Associated Mazda references: PE01-14-302, PE01-14-302A and 1WPE-14-302

Typical reasons for replacement:

• Routine engine-oil service
• Filter service interval reached
• Engine oil contaminated or degraded
• Internal engine repair completed
• Oil system contaminated by metallic debris
• Existing filter damaged, leaking or incorrectly fitted
• Unknown oil and filter service history

Fitment advice: This filter is used on applicable Mazda MX-5 ND and RF 1.5L and 2.0L SKYACTIV-G petrol engines.

Reference advice: PE01-14-302B is associated with the earlier PE01-14-302 and PE01-14-302A references, together with Mazda replacement reference 1WPE-14-302. Genuine Mazda packaging may display one of these related numbers.

Service advice: Replace the oil filter whenever the engine oil is changed. Installing fresh oil while retaining a contaminated filter can immediately recirculate retained debris into the new lubricant.

Oil advice: Refill the engine with oil of the viscosity, specification and quantity required for the applicable engine and operating conditions.

Sealing-ring advice: Confirm that the old filter sealing ring has been removed from the engine mounting face. Installing a new filter over an old retained seal can cause rapid oil loss.

Installation advice: Lightly lubricate the new filter sealing ring with clean engine oil before installation. Screw the filter on by hand until the seal contacts the mounting face, then tighten according to the Mazda procedure or instructions printed on the filter.

Overtightening advice: Do not excessively tighten the filter. Overtightening can damage the sealing ring, filter housing or mounting thread and may make later removal difficult.

Oil-pressure advice: After installation, start the engine and confirm that the oil-pressure warning lamp extinguishes promptly. Switch off immediately and investigate if the warning remains illuminated.

Leak inspection: Inspect the filter and sump-plug areas for leakage while the engine is running and again after the engine has been switched off.

Oil-level advice: Allow the oil to settle after initial start-up, then recheck the dipstick and correct the level as required. The oil filter fills during initial operation and may slightly reduce the measured sump level.

Other items to consider: Consider purchasing the correct quantity of engine oil and a new sump-plug sealing washer for a complete service.

Useful tools / consumables: Suitable oil-filter removal tool, socket and torque wrench for the sump plug, drain container, funnel, protective gloves, cleaning cloths and the correct engine oil.

Difficulty guide: DIY Difficulty: Easy to moderate. Safe vehicle support, correct disposal of used oil and careful confirmation of the final oil level are required.

Why Genuine Mazda? Genuine Mazda oil filters are specified for the intended mounting thread, sealing face, filter-media performance, flow rate and lubrication-system pressure requirements. Using the correct OE filter helps maintain reliable oil circulation and compatibility with the original engine.

What’s in the box: One Genuine Mazda spin-on engine oil filter with integral sealing ring, part number PE01-14-302B. Engine oil, sump-plug washer, tools and cleaning materials are not included unless specifically shown or stated separately.

Installation notes: Warm the engine sufficiently to allow the oil to drain, then switch it off and safely support the vehicle. Drain the used oil, remove the original filter and clean the mounting face. Confirm that the old sealing ring has not remained attached. Lubricate the new seal with clean oil, install the filter by hand and tighten as specified. Refit the sump plug with a suitable new sealing washer, refill the engine, start it briefly and check for leaks. Switch off, allow the oil to settle and confirm the final dipstick level.
