Genuine Mazda Oil Pump Drive Chain • LF01-14-151

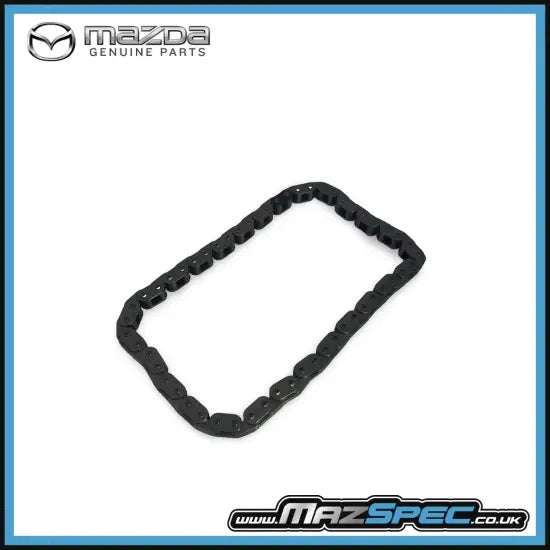

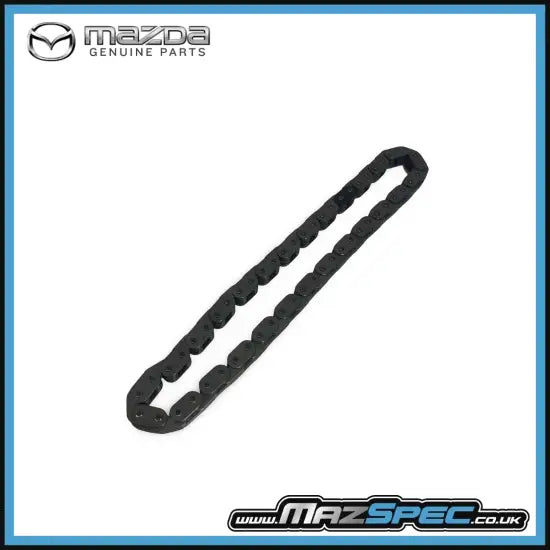

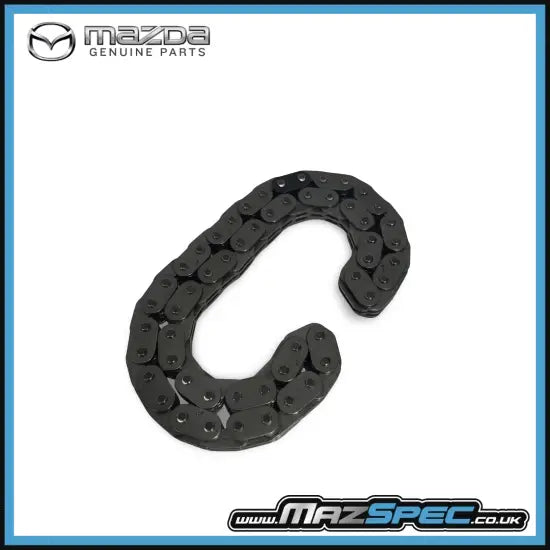

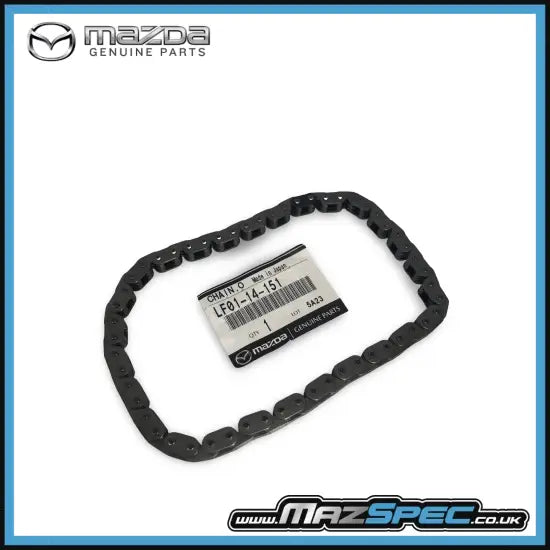

Genuine Mazda LF01-14-151 Oil Pump Drive Chain

Replacement Genuine Mazda oil pump drive chain for Mazda MX-5 Mk3, Mk3.5 and Mk3.75 / NC models fitted with the 1.8L L8-DE or 2.0L LF-VE petrol engine from 2005/2006 to 2015 listed in the compatibility table.

The chain forms part of the engine's internal oil-pump drive system. It transfers rotation from the crankshaft-driven assembly to the oil-pump sprocket, allowing the oil pump to circulate pressurised engine oil through the lubrication system.

Reliable oil-pump drive is essential for maintaining lubrication to the crankshaft bearings, connecting-rod bearings, camshafts, timing components and other internal moving parts.

This listing supplies one Genuine Mazda oil pump drive chain. One chain is fitted per engine.

Replacement may be required where the original chain has stretched, developed excessive free movement, suffered damaged links or become contaminated by debris following an internal engine failure. Possible signs can include abnormal mechanical noise from the lower timing area, visible chain wear or damage found during oil-pump or timing-cover repairs.

• Part type: Oil pump drive chain
• Primary use: Transfers mechanical drive to the engine oil pump
• Location: Inside the engine front cover / lower timing and oil-pump assembly
• Vehicle application: Mazda MX-5 Mk3, Mk3.5 and Mk3.75 / NC
• Engine applications: 1.8L L8-DE and 2.0L LF-VE
• Transmission applications: Manual and automatic, according to engine specification
• Quantity per engine: One
• Quantity supplied: One oil pump drive chain
• Brand: Genuine Mazda
• Part No.: LF01-14-151
• Also referenced as: LF0114151
• Associated oil-pump drive sprocket: LF01-14-143A

Fitment advice: Confirm that the vehicle is fitted with the original Mazda 1.8L L8-DE or 2.0L LF-VE engine and retains the original oil-pump drive arrangement. Compare the replacement chain with the removed component and inspect the crankshaft drive, oil-pump sprocket, guides and surrounding components before installation.

Other items to consider: When changing this part, you may also want to consider purchasing the LF01-14-143A oil-pump drive sprocket, oil pump, associated chain guide or tensioning components, front timing-cover seals, crankshaft oil seal, sump sealant, engine oil and oil filter.

Useful tools / consumables: Mazda-compatible crankshaft and camshaft timing tools, crankshaft-pulley holding tool, socket set, breaker bar, calibrated torque wrench, engine assembly lubricant, clean engine oil and Mazda-specified timing-cover and sump sealant.

Difficulty guide: DIY Difficulty: Advanced. Replacement requires substantial dismantling of the engine's front-cover and timing area, accurate crankshaft and camshaft positioning and careful reassembly of the oil-pump drive system.

Why Genuine Mazda? Genuine Mazda oil-pump drive chains are manufactured to the intended link dimensions, pitch, strength and wear specification. Using the correct OE chain helps maintain compatibility with the original Mazda crankshaft drive, oil-pump sprocket and surrounding engine components.

What’s in the box: One Genuine Mazda oil pump drive chain, part number LF01-14-151. The oil-pump sprocket, guides, tensioning components, oil pump, seals and installation hardware are not included unless specifically shown or stated separately.

Installation notes: Inspect the oil-pump sprocket, crankshaft drive surfaces, chain guides and oil pump before fitting the replacement chain. Replace components showing hooked teeth, scoring, excessive wear or damage. Lubricate the chain with clean engine oil during assembly, confirm correct routing and free movement, and reseal the timing cover and sump joints using the specified procedure. Prime the lubrication system before initial start-up following major engine or oil-pump work.
