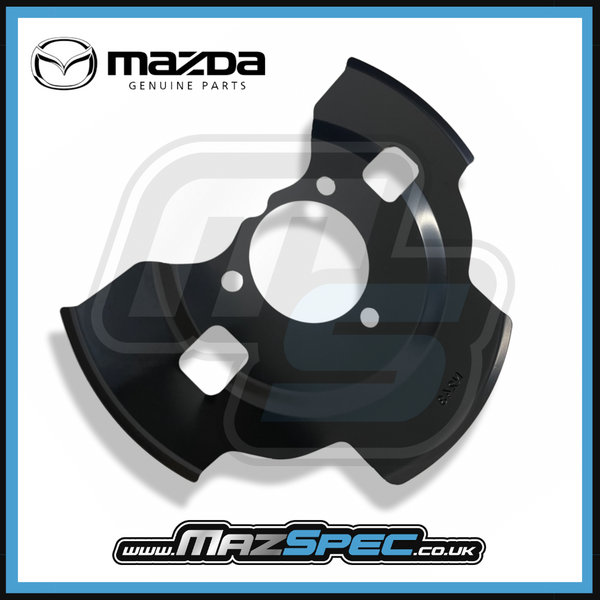

Genuine Mazda N243-26-261 Rear Brake Disc Dust Shield / Backing Plate
Replacement Genuine Mazda rear brake disc dust shield for Mazda MX-5 Mk4 ND and RF models.
This pressed-steel shield is fitted behind the rear brake disc, between the rear wheel hub and suspension knuckle. It helps protect the brake disc, caliper, parking-brake mechanism and surrounding hub components from stones, dirt, road debris and direct water spray.
The shield also provides separation between the rotating brake disc and the surrounding suspension and hub components. Correct shape and alignment are important to maintain adequate clearance and prevent scraping or rubbing noises.
Rear brake shields are continuously exposed to moisture, road salt, debris and repeated brake-temperature cycles. Over time, corrosion can weaken the outer edge or centre mounting area, allowing the shield to distort, loosen or contact the rotating brake disc.
The same component fits either the left- or right-hand rear side. There are two shields fitted per vehicle, and this listing supplies one Genuine Mazda shield. Select a quantity of two when replacing both rear sides.
- Part type: Rear brake disc dust shield / backing plate
- Mazda catalogue description: Cover, Dust
- Primary use: Protects the rear brake, parking-brake and hub components from road debris and water spray

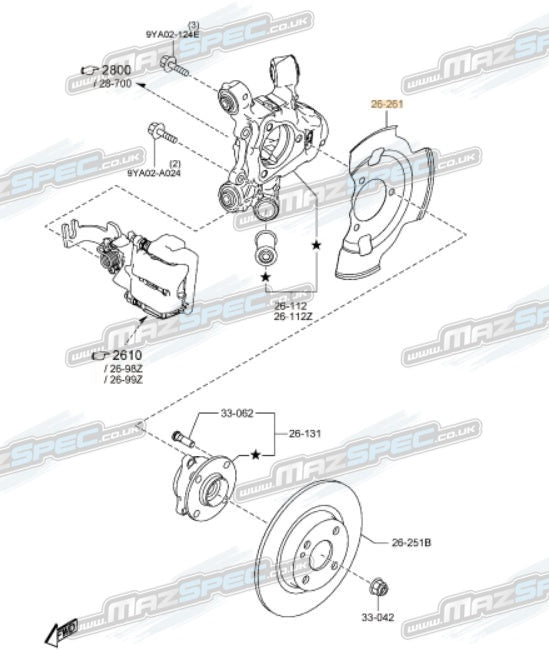

- Location: Behind the rear brake disc, between the hub and rear knuckle
- Position: Left- or right-hand rear
- Handed component: No
- Quantity fitted per vehicle: 2
- Quantity supplied: 1 dust shield
- Brake disc included: No
- Wheel hub or bearing included: No
- Mounting hardware included: No
- Brand: Genuine Mazda
- Part No.: N243-26-261
- Also referenced as: N24326261
- MX-5 fitment: Mk4 ND and RF models
Possible reasons for replacement:
- Heavy corrosion or perforation
- Outer edge rubbing against the brake disc
- Scraping or rattling from a rear wheel
- Shield bent by road debris or previous brake work
- Centre mounting area weakened by corrosion
- Damage during wheel-hub or bearing removal
- Restoration of the rear brake and hub assembly
Fitment advice: This shield is not handed and can be installed on either rear side. Confirm that the vehicle retains the original Mazda rear hub, knuckle and brake arrangement where modified brakes, replacement suspension components or a converted rear assembly have been installed.
Other items to consider: Inspect the shield on the opposite side, rear brake discs, pads, calipers, parking-brake components, wheel hubs, bearings, ABS wiring and associated retaining hardware. Replace any component that is heavily corroded, damaged or unsuitable for reuse.
Useful tools / consumables: Suitable socket and spanner set, breaker bar, calibrated torque wrench, penetrating fluid, brake cleaner, wire brush and appropriate hub-removal equipment.
Difficulty guide: DIY Difficulty: Advanced. The rear brake caliper and disc must be removed, and the shield is mounted behind the wheel-hub assembly. Suitable hub-removal tools and careful handling of the wheel bearing and ABS equipment are required.
Why Genuine Mazda? Genuine Mazda brake dust shields are formed to match the original rear-knuckle mounting points, wheel-hub centre, brake-disc clearance and surrounding suspension geometry. Correct dimensions help prevent contact with the rotating disc and maintain compatibility with the original rear brake and hub assembly.
What’s in the box: One Genuine Mazda rear brake disc dust shield / backing plate, part number N243-26-261.
Installation notes: Raise and support the vehicle safely, then remove the applicable rear brake caliper, caliper carrier and brake disc in accordance with the Mazda workshop procedure. Remove the wheel-hub assembly carefully without damaging the bearing mounting face or ABS equipment. Clean the rear-knuckle mounting area and fit the replacement shield in the original orientation. Reinstall the hub and braking components to the applicable Mazda specifications. Rotate the hub and disc by hand before refitting the wheel to confirm that the shield is correctly seated and does not contact the disc.
| Make | Model | Sub Variant | Chassis / Code | Years | Power (PS) | Engine Codes | Fuel | Transmission | Notes |
|---|---|---|---|---|---|---|---|---|---|
| Mazda | MX-5 | Mk4 ND1 – 1.5 / 2.0 | ND / ND2E | 2015–2018 | 131 / 160 | P5-VP / PE-VPS | Petrol | 6-Speed Manual / Automatic | Rear brake disc dust shield; fits left- or right-hand side; two fitted per vehicle |
| Mazda | MX-5 RF | Mk4 ND1 RF – 1.5 / 2.0 | ND / ND2E | 2016–2018 | 131 / 160 | P5-VP / PE-VPS | Petrol | 6-Speed Manual / Automatic | Rear brake disc dust shield; fits left- or right-hand side; two fitted per vehicle |
| Mazda | MX-5 | Mk4.5 / Mk4.75 ND2 / ND3 – 1.5 / 2.0 | ND / ND6E | 2018–Present | 132 / 184 | P5-VP / PE-VPS | Petrol | 6-Speed Manual / Automatic | Rear brake disc dust shield; fits left- or right-hand side; two fitted per vehicle |
| Mazda | MX-5 RF | Mk4.5 / Mk4.75 ND2 / ND3 RF – 1.5 / 2.0 | ND / ND6E | 2018–Present | 132 / 184 | P5-VP / PE-VPS | Petrol | 6-Speed Manual / Automatic | Rear brake disc dust shield; fits left- or right-hand side; two fitted per vehicle |
| Vehicle Manufacturer | OEM Reference Number |
|---|---|
| Mazda | N243-26-261 |
| Mazda | N24326261 |
