Rear Subframe / Cross Member & Brace Bar Kit • MX-5 MK3/NC (06-15)

MazSpec Aftermarket Rear Subframe / Crossmember and Brace Bar Kit

Replacement rear subframe / rear crossmember and brace bar kit for Mazda MX-5 Mk3 / Mk3.5 / Mk3.75 (NC) 1.8L and 2.0L models listed in the compatibility table.

The rear subframe is the main structural mounting member for key rear suspension and driveline components. It supports the rear lower arms, suspension links, differential mounting area and related rear axle components, helping maintain correct suspension geometry, wheel alignment and chassis rigidity.

There is typically one rear subframe / rear crossmember fitted per vehicle. It is located underneath the rear of the vehicle and forms the central mounting structure for the rear suspension assembly.

This part is commonly replaced when the original rear subframe is heavily corroded, accident damaged, distorted, cracked, has damaged mounting points, or is no longer suitable for safe refurbishment. On older MX-5 NC vehicles, rear subframe corrosion is a common reason for replacement, especially where the car has seen winter road salt or poor underbody protection.

• Part type: Rear subframe / rear crossmember / suspension crossmember
• Primary use: Rear suspension and driveline mounting structure
• Location: Rear underside of vehicle
• Quantity per vehicle: 1
• Brand: MazSpec
• Part No.: MSC0001 / MSC0002 / 99466-1225
• Also referenced as: NE5128800B
• Supersedes: NE51-28-800A
• Designed for Mazda MX-5 Mk3 / Mk3.5 / Mk3.75 (NC) applications listed in the compatibility table

Fitment advice: Designed for the Mazda MX-5 NC variants listed in the compatibility table, covering Mk3, Mk3.5 and Mk3.75 soft-top and Roadster Coupe / PRHT models with 1.8L L8-DE and 2.0L LF-VE petrol engines. For imported, modified or previously repaired cars, matching the Mazda part number from the original rear subframe is the best way to confirm the correct replacement style before fitting.

Other items to consider: When changing this part, you may also want to consider purchasing related items such as rear subframe mounting bolts, alignment eccentric bolts and washers, rear lower arm bolts, suspension arm hardware, differential mounting hardware, anti-roll bar brackets, drop links, bushes, underbody fixings and corrosion protection products.

Useful tools / consumables: Vehicle lift or axle stands, transmission jack or support table, socket set, breaker bar, torque wrench, penetrating oil, alignment tools, pry bars, wire brush, anti-corrosion coating, thread cleaning tools and suitable workshop support equipment for safely lowering and refitting the rear subframe assembly.

Difficulty guide: DIY Difficulty: Advanced. Replacing the rear subframe normally involves supporting the vehicle securely, removing or supporting rear suspension and driveline components, dealing with seized/corroded fixings and carrying out a full suspension alignment afterwards. This is best suited to experienced DIY mechanics or a workshop with lifting equipment.

Why MazSpec Aftermarket?

The customer is at the centre of everything we do. When it comes to our own sourced in house products, quality and customer piece of mind are out number one priority.

All our vendors are vetted to the highest standards and are ISO and IATF certified to ensure quality in every component. We have called upon our years of engineering experience in the automotive industry to make sure all components are manufacture to the exact same specification and tolerances as the original product and will not be beaten by an inferior brand.

At MazSpec, we know what matters to our customers when it comes to parts. We are able to supply the precision, durability and cutting-edge technology customers want.

Why buy from Mazspec? Mazspec specialises in Mazda and MX-5 parts, with practical knowledge of common NC underbody corrosion, suspension hardware and rear subframe replacement jobs. We source genuine Mazda components through trusted OE channels and can help with related suspension arms, bolts, bushes, alignment hardware and service parts needed for the job.

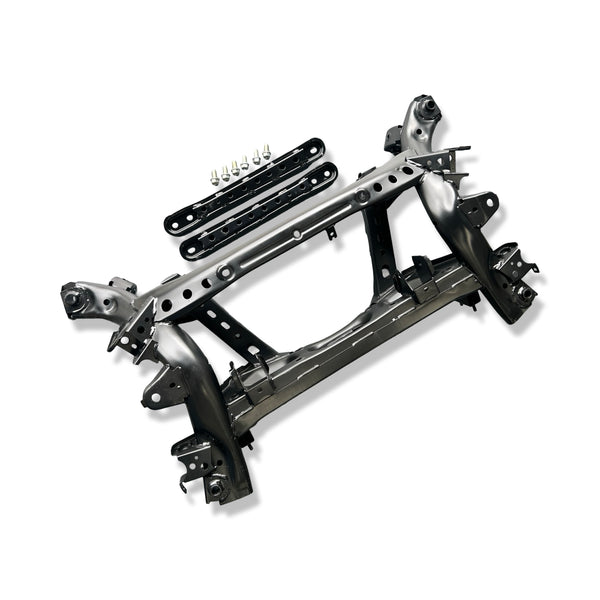

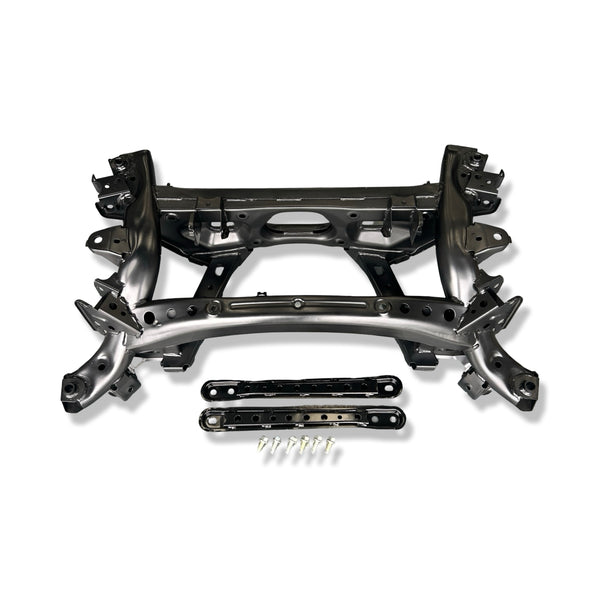

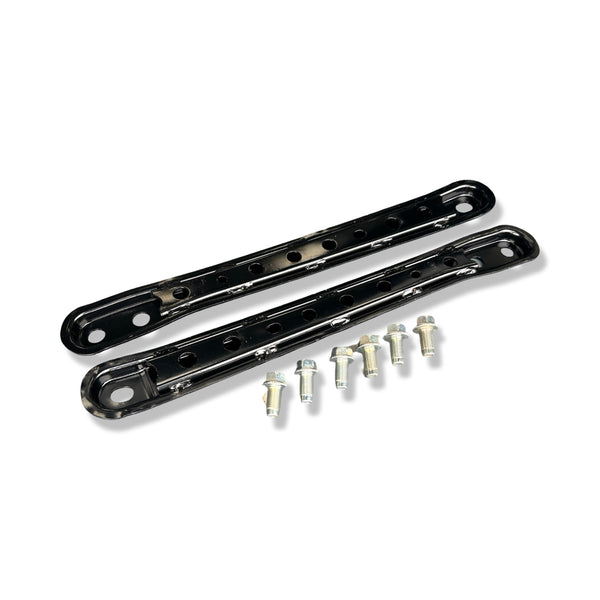

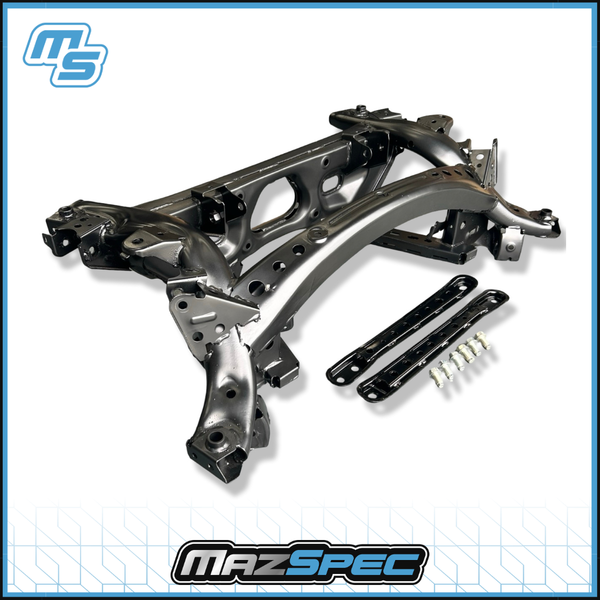

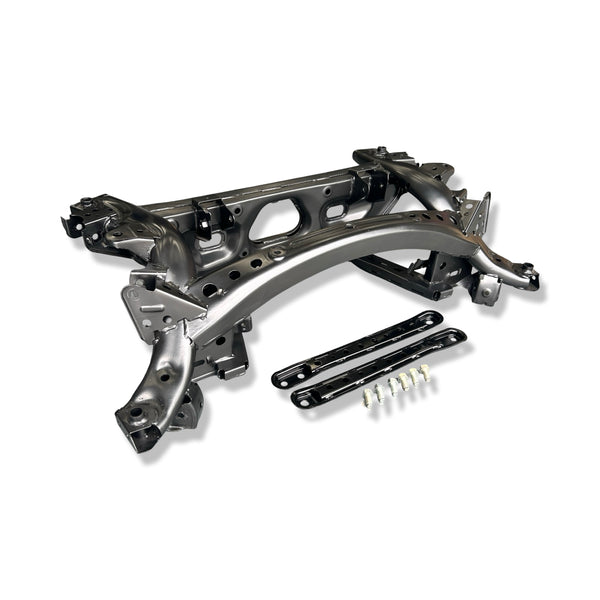

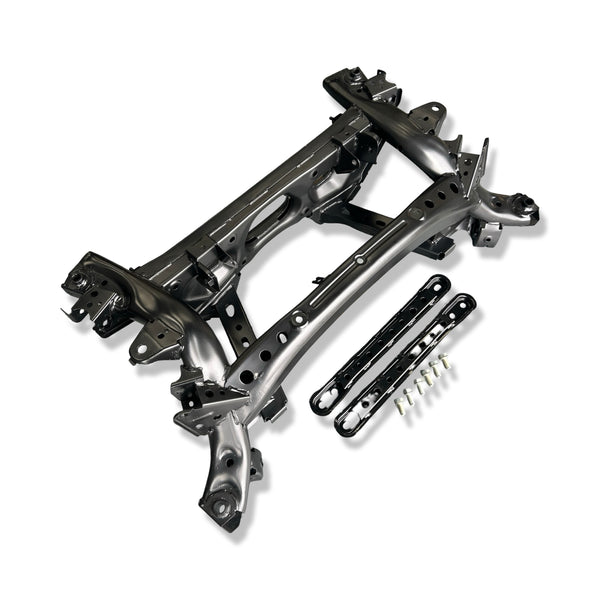

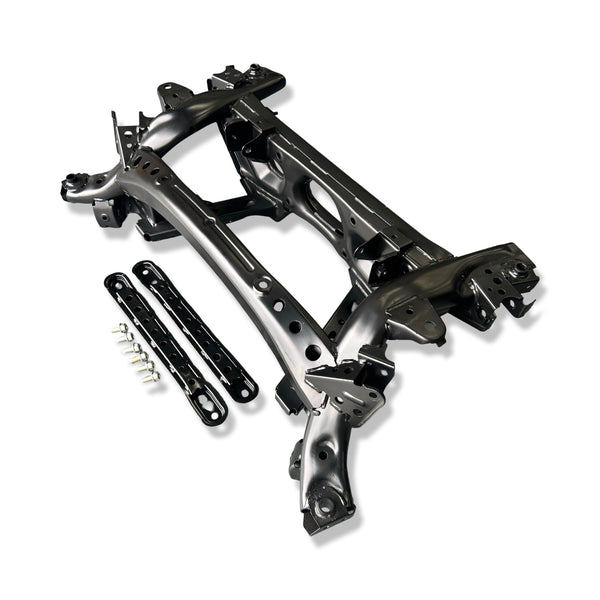

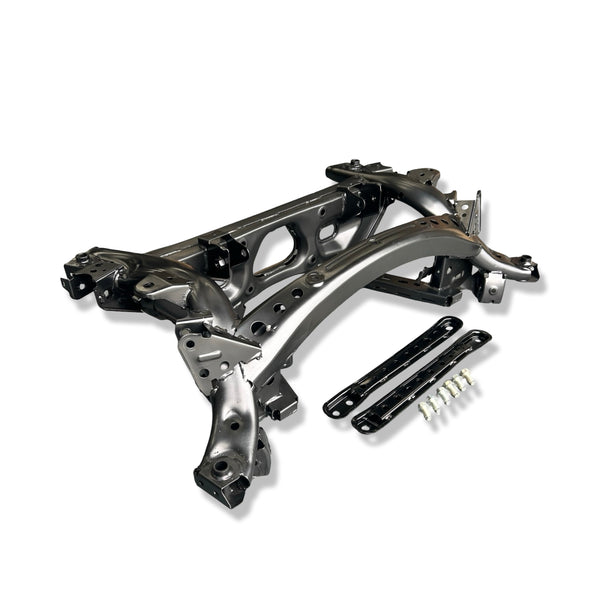

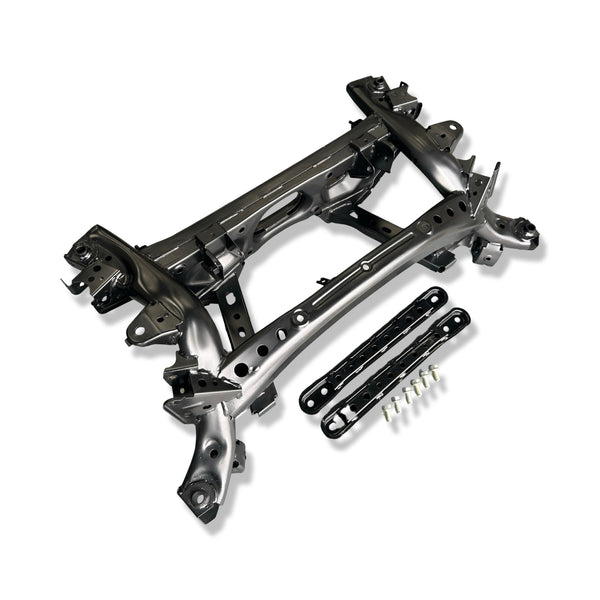

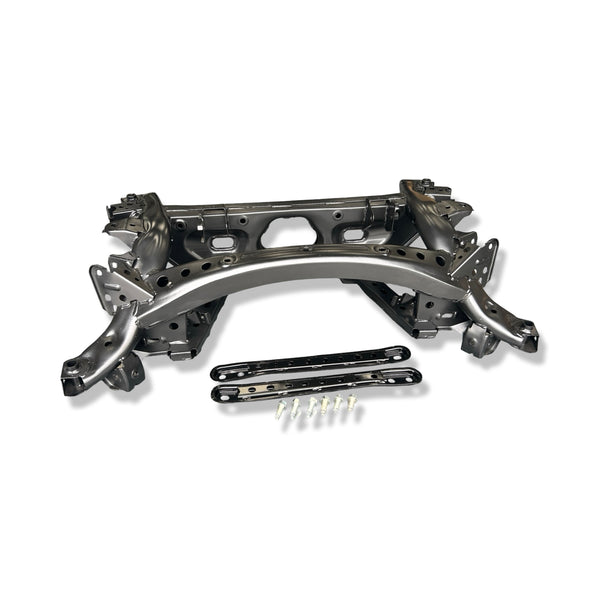

What’s in the box: One rear subframe / rear crossmember, 2 brace bars and 6 brace bar bolts. Suspension arms, differential, bushes, brackets, bolts, nuts and alignment hardware are not included unless listed separately.

Installation notes: Support the vehicle safely before removal. Inspect all suspension arms, bushes, differential mounts and mounting hardware during the job. Replace corroded or damaged fixings, torque all fasteners to Mazda workshop manual specification and carry out a full four-wheel alignment after installation.
