RIDEX Engine Air Filter – Mazda 3, Mazda 6 & CX-5 • 8A0522

RIDEX 8A0522 Engine Air Filter – Mazda 3, Mazda 6 & CX-5

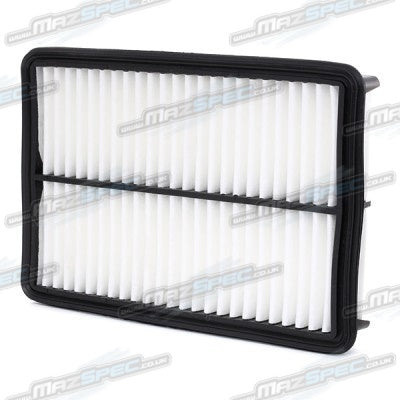

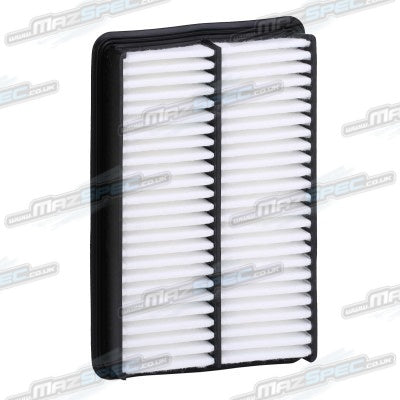

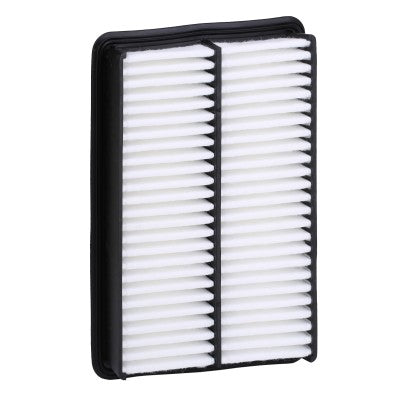

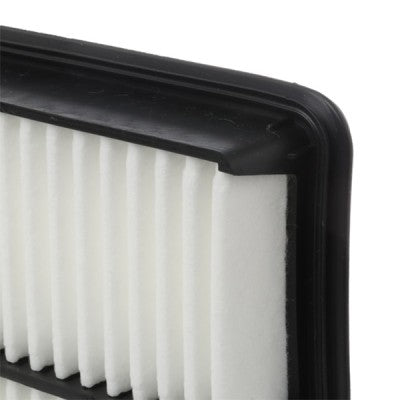

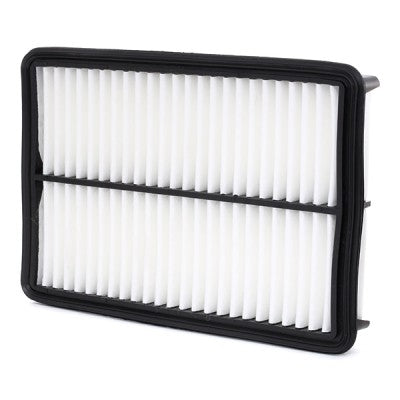

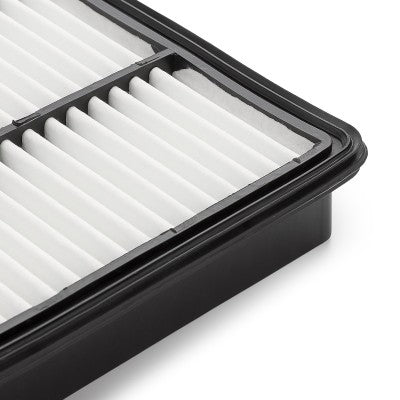

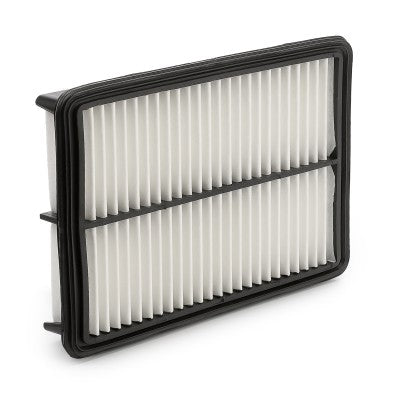

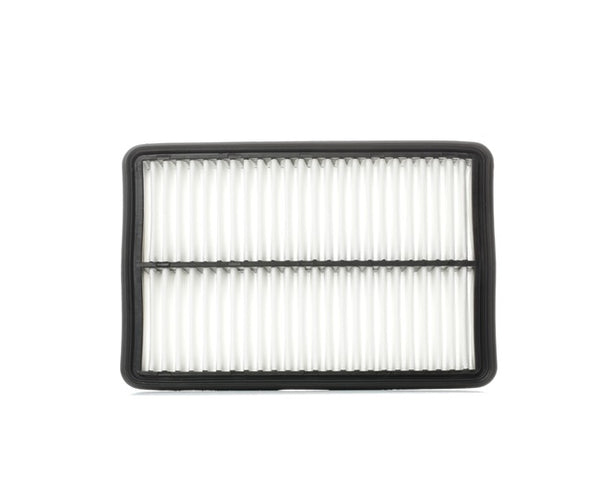

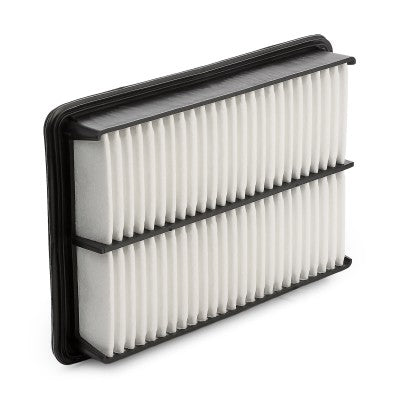

Replacement RIDEX engine air-filter element for selected Mazda 3, Mazda 6 and Mazda CX-5 petrol models listed in the compatibility table.

The air filter is installed inside the engine air-filter housing and removes dust, grit, insects and other airborne contamination before the intake air reaches the throttle body and engine.

A clean filter helps maintain unrestricted airflow, stable engine performance and appropriate fuel consumption while protecting the mass-airflow sensor, throttle body, intake system and internal engine components from abrasive contamination.

Common reasons for replacement include scheduled servicing, visible contamination, damaged or distorted filter media, reduced acceleration, increased fuel consumption, poor engine response or contamination inside the airbox.

Important: No Mazda MX-5 application is confirmed for this filter. It is intended for selected Mazda 3, Mazda 6 and Mazda CX-5 petrol applications.

• Part type: Engine intake air filter
• Primary use: Removes airborne contamination from the engine intake airflow
• Filter type: Replaceable filter insert
• Length: 272 mm
• Width: 180 mm
• Height: 42 mm
• Approximate weight: 0.35 kg
• EAN: 4059191265145
• Quantity required per vehicle: 1
• Quantity supplied: 1 air filter
• Brand: RIDEX
• Part No.: 8A0522
• Mazda MX-5 applications: None confirmed

Fitment advice: This filter is used across numerous Mazda 3 BM/BN, Mazda 6 GJ/GL and Mazda CX-5 KE/KF petrol applications. Exact compatibility varies by engine, production date and sales market. Match the original filter dimensions and Mazda OE reference before installation. Diesel applications should not be assumed unless specifically confirmed against the vehicle catalogue.

Other items to consider: When changing the engine air filter, consider inspecting or replacing the cabin filter, oil filter and engine oil. The airbox intake duct, mass-airflow sensor connection, breather hoses and retaining clips should also be checked for damage or looseness.

Useful tools / consumables: Screwdriver or socket set as required by the airbox design, inspection lamp, vacuum cleaner with a suitable narrow attachment and a clean lint-free cloth.

Difficulty guide: DIY Difficulty: Easy. The filter is normally accessible by releasing the airbox clips or retaining screws and lifting the upper section of the housing.

Why RIDEX? RIDEX filters provide a cost-effective aftermarket servicing option manufactured to application-specific dimensions. The filter media is designed to remove intake-air contamination while maintaining suitable airflow through the engine induction system.

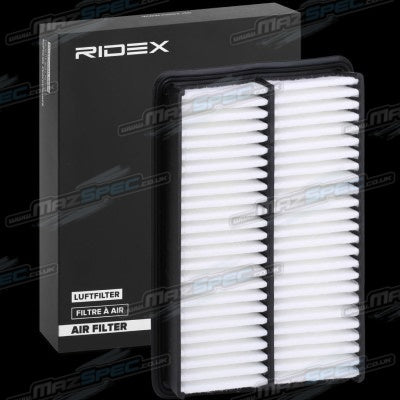

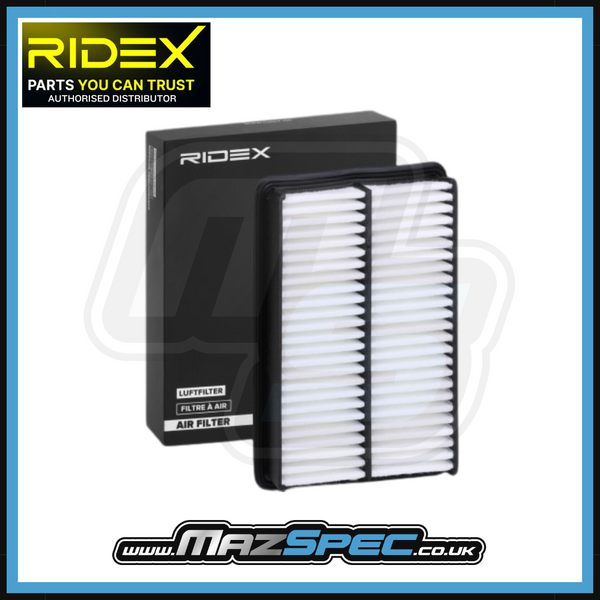

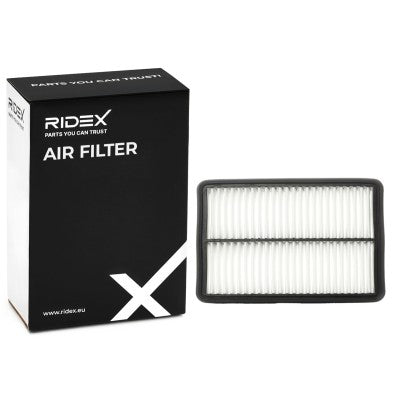

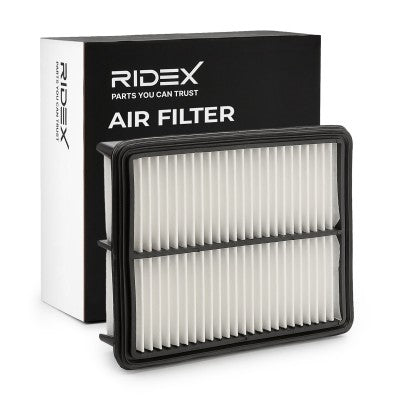

What’s in the box: One RIDEX engine air-filter element. Airbox clips, screws, intake hoses and other service parts are not included unless physically present in the supplied package.

Installation notes: Switch off the engine and allow the engine bay to cool where necessary. Release the airbox retaining clips or screws and lift the upper housing carefully without pulling on the mass-airflow sensor wiring or intake duct. Note the orientation of the original filter before removal. Clean loose contamination from the airbox without allowing debris to enter the clean side of the intake. Install the replacement filter squarely and ensure that its sealing edge sits evenly around the complete housing. Refit the airbox lid without trapping or distorting the filter and secure every clip or fixing. Confirm that the intake duct, breather connections and electrical plugs are secure before starting the engine.
