RIDEX Front Right Upper Suspension Control Arm • 273C1622

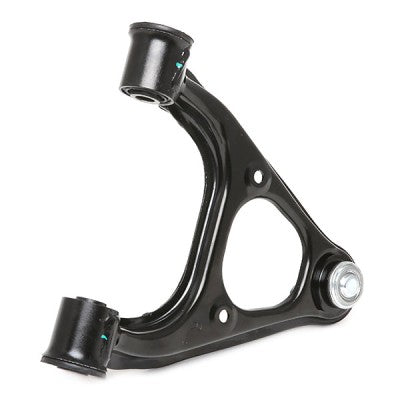

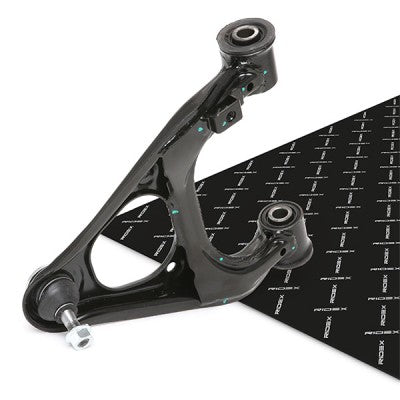

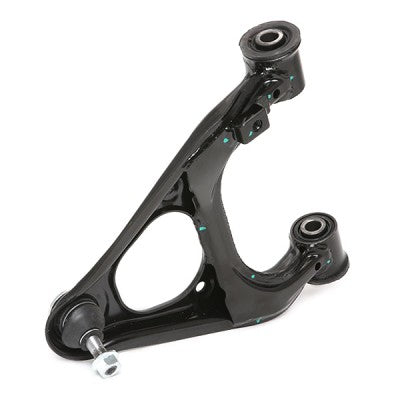

RIDEX 273C1622 Front Right Upper Suspension Control Arm

Replacement RIDEX front upper suspension control arm / wishbone for the front-right / UK offside position on Mazda MX-5 Mk1/NA 1.6 and 1.8-litre models listed in the compatibility table.

The upper control arm connects the front subframe to the upper section of the steering knuckle. It controls the wheel’s position as the suspension moves and contributes to correct camber, steering stability and tyre contact with the road.

This is the front-right / UK offside upper arm. It is supplied as a complete assembly with the upper ball joint installed, together with the ball-joint nut and cotter pin.

ABS compatibility: The arm is suitable for both ABS and non-ABS vehicles and has the applicable mounting brackets present.

Important: The matching front-left / UK nearside arm is RIDEX 273C1727.

Common symptoms of a worn upper arm, ball joint or bushes include knocking over uneven roads, vague steering, instability under braking, uneven tyre wear, excess wheel movement, poor wheel alignment or visible deterioration of the ball-joint dust boot and suspension bushes.

• Part type: Front upper suspension control arm / wishbone
• Primary use: Controls the upper position and movement of the front steering knuckle
• Installation position: Front axle, right, upper
• UK position: Offside front
• Control-arm type: Transverse control arm

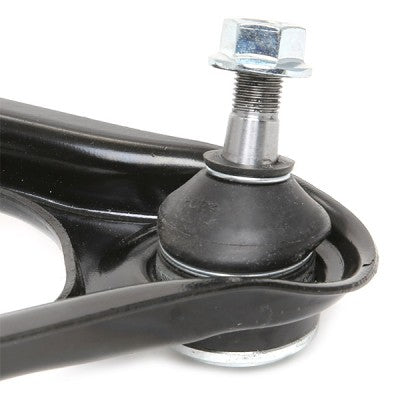

• Ball joint: Included and pre-installed
• Ball-joint nut: Included
• Cotter pin: Included
• ABS compatibility: Suitable for ABS and non-ABS vehicles

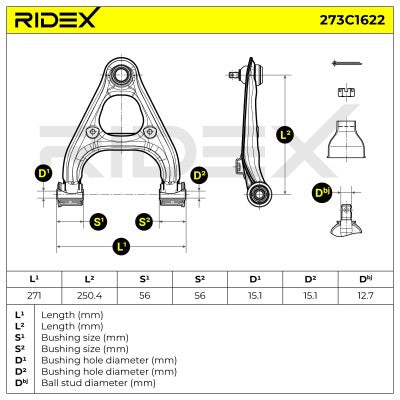

• Overall ball-joint height: 69 mm
• Ball-joint external thread: M12 × 1.25

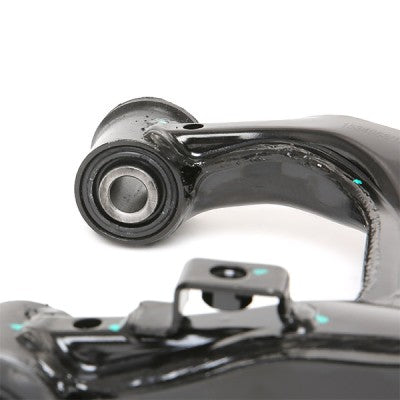

• Inner bush diameter: 15 mm
• Fitted diameter: 13 mm
• Ball-stud material: High-strength 40CrMo steel
• Ball-joint lubricant: Waterproof grease
• Matching left-hand arm: RIDEX 273C1727
• EAN: 4059191878895
• Quantity required per position: 1
• Quantity supplied: 1 complete control arm
• Brand: RIDEX
• Part No.: 273C1622

Fitment advice: This arm fits the front-right upper position on Mazda MX-5 Mk1/NA 1.6 and 1.8-litre models. Match the installation side, arm shape, ball-joint thread, bush dimensions and Mazda OE reference before installation. Modified suspension systems, replacement subframes or non-standard steering-knuckle assemblies may affect compatibility.

Other items to consider: When replacing this arm, consider inspecting or replacing the matching left-hand upper arm, upper-arm mounting bolts, lower control-arm ball joints, track-rod ends, anti-roll-bar drop links, shock absorbers and any corroded or damaged suspension hardware.

Useful tools / consumables: Vehicle lift or trolley jack and axle stands, wheel-removal tools, socket and spanner set, torque wrench, ball-joint separator, penetrating fluid, suitable suspension support and corrosion protection.

Difficulty guide: DIY Difficulty: Moderate to Advanced. Replacement requires separation of the upper ball joint from the steering knuckle and removal of the arm mounting bolt or bolts from the chassis or subframe.

Why RIDEX? RIDEX suspension components provide a cost-effective aftermarket repair option manufactured to application-specific dimensions. This complete arm incorporates a high-strength 40CrMo ball stud, waterproof ball-joint grease and pre-installed mounting bushes and ball joint.

What’s in the box: One RIDEX front-right upper suspension control arm with installed ball joint, ball-joint nut and cotter pin. Chassis mounting bolts and additional suspension hardware are not included unless physically present in the supplied package.

Installation notes: Support the vehicle securely and remove the front-right wheel. Support the steering knuckle before separating the upper ball joint. Remove the cotter pin and ball-joint nut, then separate the joint using an appropriate tool without damaging the knuckle or ball-joint dust boot. Record the position and orientation of the original control-arm mounting hardware before removal. Install the replacement arm and initially leave the inner mounting hardware loose enough to permit movement. Connect the ball joint to the steering knuckle, tighten the nut to the applicable specification and install the supplied cotter pin. The inner control-arm mounting hardware should be finally tightened with the suspension at its normal ride height to avoid preloading the bushes. Check all clearances and arrange a full wheel-alignment inspection after installation.
