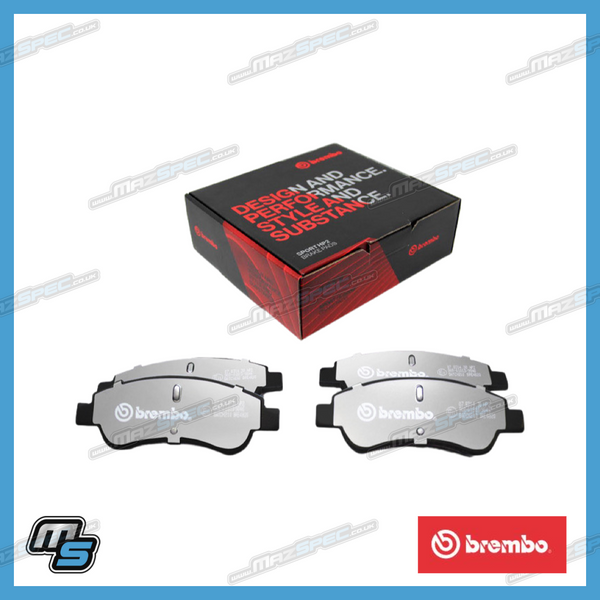

Brembo Sport HP2 Front Brake Pad Set • 07.B314.06

Front Brembo Sport HP2 brake pad set for selected Mazda MX-5 Mk1 / NA and MX-5 Mk2 / NB models using the 110 x 57 x 14 mm Sumitomo front brake-pad profile.

Brembo 07.B314.06 is a complete front axle set of Sport HP2 performance brake pads. The HP2 range forms part of Brembo's UPGRADE Line and is intended as a direct-fit sport-oriented replacement for compatible original brake pads.

Brembo describes HP2 pads as providing strong performance from cold, good initial bite, resistance to fade and stable friction characteristics across changing operating conditions. They are designed for sporting road use while retaining direct compatibility with the appropriate original brake caliper and are ECE R90 approved.

Product Specifications

• Brand: Brembo
• Product range: Sport HP2
• Brembo part number: 07.B314.06
• Installation position: Front axle
• Brake system: Sumitomo
• Pad width: 110 mm
• Pad height: 57 mm
• Pad thickness: 14 mm
• WVA number: 23354
• Wear indicator: None
• Approval: ECE R90
• Quantity required per front axle: 1 pad set
• Quantity supplied: 4 brake pads / 1 complete front axle set

Important Fitment Note

On MX-5 NB models this is the standard / non-Sport front pad profile. Some NB models use the larger Brembo 07.B314.07 pad profile instead, so the two references should not be treated as interchangeable. On early MX-5 Mk1 1.6 models there is also a production change, with 07.B314.06 supported from approximately August 1993. For imported, modified or previously repaired cars, matching the part number, dimensions and brake specification of the component being replaced is recommended.

Typical Reasons for Replacement

Brake pads are normally replaced as the friction material wears, where uneven wear, contamination or heat damage is present, when renewing worn front brake discs, or when changing from a conventional road pad to a sport-oriented friction material for more enthusiastic road driving.

Fitment Advice

Replace front brake pads as a complete axle set. Inspect both front brake discs, caliper pistons, slider components, dust boots and pad contact surfaces before installation. Ensure the pads move correctly within the caliper assembly and tighten braking components to the applicable Mazda specifications.

Other Items to Consider

• Front brake discs
• Front brake pad fitting hardware where worn or corroded
• Brake fluid
• Front caliper service components where required

Useful Tools / Consumables

• Brake cleaner
• Suitable brake assembly lubricant for specified contact points
• Brake piston retraction tool
• Torque wrench

Difficulty Guide

Moderate – brake pad replacement is a conventional service operation, but correct caliper operation, component inspection and tightening procedures are essential. Braking-system work should only be undertaken by somebody competent to carry it out safely.

Why Brembo?

Brembo Sport HP2 pads form part of the company's UPGRADE Line and are developed for drivers looking for a sport-oriented direct-fit pad for road use. HP2 pads combine Brembo's braking and friction-material expertise with ECE R90 approval while retaining compatibility with the appropriate original brake calipers.

What's in the Box?

• 4 x Brembo Sport HP2 front brake pads

Installation Notes

Ensure both front calipers operate freely and both brake discs remain within their service limits before installation. After fitting, operate the brake pedal until firm before moving the vehicle, check the brake-fluid level and follow Brembo's recommended bedding-in procedure. Avoid unnecessary heavy braking during the initial bedding period.
