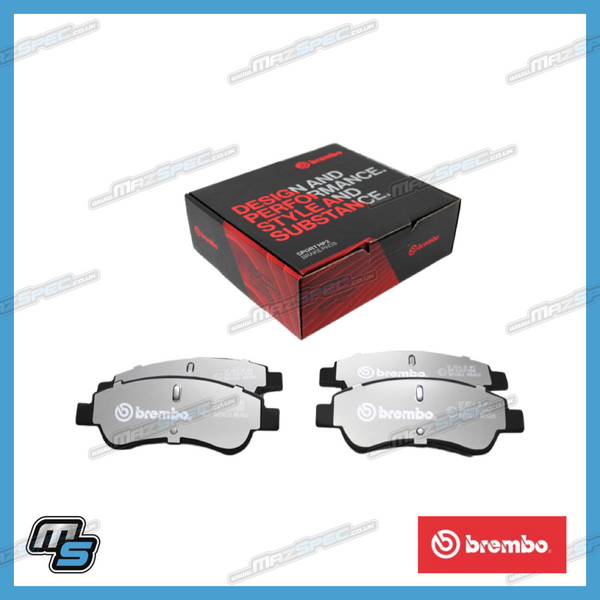

Brembo Sport HP2 Front Brake Pad Set • 07.B314.07

Front Brembo Sport HP2 brake pad set for Mazda MX-5 Mk2 / NB and Mk2.5 / NB-FL 1.8 models equipped with the larger Sport brake package and 270 mm front brake discs.

Brembo 07.B314.07 is a complete front axle set of Sport HP2 performance brake pads. This is the larger front pad application used with the Sport braking system on relevant MX-5 NB models and should not be confused with the smaller 07.B314.06 front pad profile used by the standard braking system.

Brembo Sport HP2 pads form part of the company's UPGRADE Line and are designed as direct-fit replacements for the corresponding original brake pads. Brembo specifies strong cold performance, good initial bite, resistance to fade and stable friction characteristics across varying operating conditions. The HP2 range is ECE R90 approved for road use.

Product Specifications

• Brand: Brembo
• Product range: Sport HP2
• Brembo part number: 07.B314.07
• Installation position: Front axle
• Brake system: Sumitomo
• Application: Larger / Sport front brake package
• Front brake disc diameter: 270 mm
• Front brake disc specification: Ventilated, 22 mm nominal thickness
• Pad width: 116 mm
• Pad height: 58 mm
• Pad thickness: 15 mm
• WVA number: 23863
• FMSI reference: D890 7768
• Wear indicator: None
• Approval: ECE R90
• Quantity required per front axle: 1 pad set
• Quantity supplied: 4 brake pads / 1 complete front axle set

Important Fitment Note

This is the larger front brake-pad application associated with the MX-5 NB Sport braking system and 270 x 22 mm front discs. It must not be confused with Brembo 07.B314.06, which uses the smaller 110 x 57 x 14 mm pad profile fitted to the alternative standard braking system. For imported, modified or previously repaired cars, matching the part number, dimensions and brake specification of the component being replaced is recommended.

Typical Reasons for Replacement

Brake pads are normally replaced as the friction material wears, where uneven wear, contamination or heat damage is present, when renewing worn front brake discs, or when changing from a conventional road pad to a sport-oriented friction material for more enthusiastic road driving.

Fitment Advice

Front brake pads should be replaced as a complete axle set. Inspect both front brake discs for condition and remaining thickness and check the caliper pistons, slider pins, dust boots and pad contact surfaces before installation. Ensure the pads move freely in the carrier and tighten all braking components to the applicable Mazda specifications.

Other Items to Consider

• 270 mm front brake discs
• Front brake pad fitting hardware where worn or corroded
• Brake fluid
• Front caliper service components where required

Useful Tools / Consumables

• Brake cleaner
• Suitable brake assembly lubricant for specified contact points
• Brake piston retraction tool
• Torque wrench

Difficulty Guide

Moderate – brake pad replacement is a conventional service operation, but correct caliper operation, component inspection and tightening procedures are essential. Braking-system work should only be undertaken by somebody competent to carry it out safely.

Why Brembo?

Brembo Sport HP2 pads form part of the company's UPGRADE Line and are intended for drivers looking for a sport-oriented direct-fit brake pad for road use. HP2 pads retain compatibility with the corresponding original brake calipers while using a performance-focused friction material, and the range is ECE R90 approved.

What's in the Box?

• 4 x Brembo Sport HP2 front brake pads

Installation Notes

Ensure both front calipers operate freely and both discs are within their service limits before installation. After fitting, operate the brake pedal until firm before moving the vehicle, check the brake-fluid level and follow Brembo's recommended bedding-in procedure. Avoid unnecessary heavy braking during the initial bedding period.
